Mechanism of Agent

Posted on Edited on In Views:
Describe the mechanism of Agent architecture.

[TOC]

1. Short Introduction

1.1 Core Loop of Agent

The core concept of Agent is: LLM + Tools + Loop.

  • LLM for thinking what’s the next step.
  • Tool for executing.
  • Loop for uniting the whole procedure.

The core loop procedure is:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
① Think
├─ Understand the user's purpose
├─ Judge current state
└─ Decide next step: Call which tool, or cancel?
			│
			▼
② Act
├─ Call tool(Search, Read File, Execute Commands...)
└─ Tool returns result.
			│
 			▼
③ Observe
├─ Parse the returned result
├─ Add the result into the context
└─ Go back to ①，till the task is completed.

1.2 Demo Code

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
import json
from openai import OpenAI

client = OpenAI()

# 定义工具：每个工具就是一个函数 + 描述
tools = [
    {
        "type": "function",
        "function": {
            "name": "calculator",
            "description": "Evaluate a mathematical expression",
            "parameters": {
                "type": "object",
                "properties": {
                    "expression": {"type": "string", "description": "Math expression to evaluate"}
                },
                "required": ["expression"]
            }
        }
    }
]

def run_agent(user_input: str, max_turns: int = 10) -> str:
    messages = [{"role": "user", "content": user_input}]

    for turn in range(max_turns):
        # ① Think：模型决定下一步
        response = client.chat.completions.create(
            model="gpt-4o",
            messages=messages,
            tools=tools,
        )
        msg = response.choices[0].message

        # 如果模型直接回复文本 → 任务结束
        if msg.content and not msg.tool_calls:
            return msg.content

        # ② Act：执行模型要求的工具调用
        if msg.tool_calls:
            messages.append({"role": "assistant", "tool_calls": msg.tool_calls})  # type: ignore
            for tool_call in msg.tool_calls:
                args = json.loads(tool_call.function.arguments)
                # 实际工程中这里要路由到真正的工具
                result = eval(args["expression"])  # 仅示例，生产环境不要用 eval
                # ③ Observe：把结果塞回上下文
                messages.append({
                    "role": "tool",
                    "tool_call_id": tool_call.id,
                    "content": str(result)
                })
            # 循环回到 ①

    return "Agent reached max turns without finishing."

# 试试看
print(run_agent("帮我算一下 (3 + 5) * 7 等于多少"))

1.3 Demo Code Explain

1.3.1 Tools Field

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
tools = [
    {
        "type": "function",
        "function": {
            "name": "calculator",
            "description": "Evaluate a mathematical expression",
            "parameters": {
                "type": "object",
                "properties": {
                    "expression": {"type": "string", "description": "Math expression to evaluate"}
                },
                "required": ["expression"]
            }
        }
    }
]

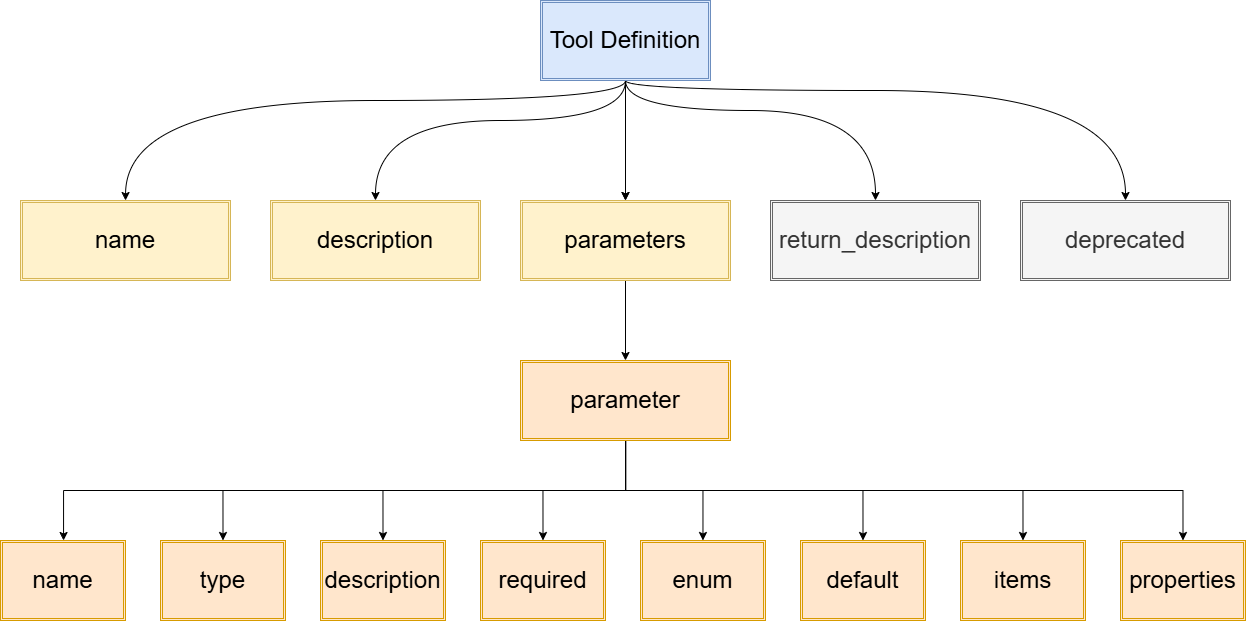

tools is a List, like Hash Map in C.

The list includes many items. There’s only one item in the demo code.

This field defines many JSON Schema, which has many specified structures.

The item has these info it describes:

1
2
3
4
5
6
7
8
9
10
11
12
13
tools
└── [0]
    ├── type: "function"
    └── function
        ├── name: "calculator"
        ├── description: "Evaluate a mathematical expression"
        └── parameters
            ├── type: "object"
            ├── properties
            │   └── expression
            │       ├── type: "string"
            │       └── description: "Math expression to evaluate"
            └── required: ["expression"]

1.3.2 Function Begin

The function field:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
def run_agent(user_input: str, max_turns: int = 10) -> str:
    messages = [{"role": "user", "content": user_input}]

    for turn in range(max_turns):
        # ① Think：模型决定下一步
        response = client.chat.completions.create(
            model="gpt-4o",
            messages=messages,
            tools=tools,
        )
        msg = response.choices[0].message

        # 如果模型直接回复文本 → 任务结束
        if msg.content and not msg.tool_calls:
            return msg.content

        # ② Act：执行模型要求的工具调用
        if msg.tool_calls:
            messages.append({"role": "assistant", "tool_calls": msg.tool_calls})  # type: ignore
            for tool_call in msg.tool_calls:
                args = json.loads(tool_call.function.arguments)
                # 实际工程中这里要路由到真正的工具
                result = eval(args["expression"])  # 仅示例，生产环境不要用 eval
                # ③ Observe：把结果塞回上下文
                messages.append({
                    "role": "tool",
                    "tool_call_id": tool_call.id,
                    "content": str(result)
                })
            # 循环回到 ①

    return "Agent reached max turns without finishing."
1
def run_agent(user_input: str, max_turns: int = 10) -> str:

Define a core function named run_agent :

str type input parameter: user_input

int type and max value as 10 input parameter:max_turns

function output parameter type: str

Initialization in function:

1
messages = [{"role": "user", "content": user_input}]

Initialize a list: messages, including 2 fields role and content.

1
2
3
4
messages
└── [0]
    ├── role: "user"
    └── content: user_input

Into the loop, the loop can keep max_turn times:

1
for turn in range(max_turns):

Configure the model, messages and tools and send them to LLM:

1
2
3
4
5
response = client.chat.completions.create(
            model="gpt-4o",
            messages=messages,
            tools=tools,
        )

The python will serialize them into a JSON text like:

1
2
3
4
5
{
  "model": "gpt-4o",
  "messages": [ {"role": "user", "content": "算一下 3+5"} ],
  "tools": [ { "type": "function", "function": { "name": "calculator", ... } } ]
}

Then they will be packed and send to LLM. The LLM will output some tokens. The tokens (in fact just some string). Then the LLM provider like OpenAI, will post-process these tokens.

1.3.3 The Post-Processing Phase

Notice the code:

1
2
3
4
5
response = client.chat.completions.create(
            model="gpt-4o",
            messages=messages,
            tools=tools,
        )

The chat.completions.createfucntion will package our info into a JSON type text and send it into LLM as input prompt.

The LLM will get output prompt, but the prompt is not equal to the response.

In fact, the prompt will be post-processed, then, it can be the response.

What is the post-process?

The output prompt is just a string paragraph. The original output token is mostly non-structural, impure, and even wrong-format.

The post-process ’ main purpose is to process the output tokens into fully controllable structured object.

  1. Buffering & Concatenation

    The process will turn all tokens into a consecutive string

  2. Parsing, Validation & Auto-fix

    Parse the string into the Key-Value pairs.

    Validate if the parsed content matches the format you need. e.g. check if the expression is string type.

  3. Auto-fix

    Some process will even try to fix some problems with the output token.

  4. Mapping & ID Generation

    The original output text may not have field named tool_call_id, there’s only name and arguments.

    The post-process will generate a unique identifier for this function calling.

Conclusion:

​ The response is not the original output token of LLM. It’s product of the output token.

1.3.4 Process msg

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
msg = response.choices[0].message

        if msg.content and not msg.tool_calls:
            return msg.content

        if msg.tool_calls:
            messages.append({"role": "assistant", "tool_calls": msg.tool_calls})  # type: ignore
            for tool_call in msg.tool_calls:
                args = json.loads(tool_call.function.arguments)
                # 实际工程中这里要路由到真正的工具
                result = eval(args["expression"])  # 仅示例，生产环境不要用 eval
                # ③ Observe：把结果塞回上下文
                messages.append({
                    "role": "tool",
                    "tool_call_id": tool_call.id,
                    "content": str(result)
                })

msg = response.choices[0].message

In fact, response.choices[] is a list, which includes many answers of LLM. You can require LLM to generate 3 different replies at once. response.choices[0] means the first reply.

The response’s structure likes this:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
response
  │
  ├── id: "chatcmpl-123..."
  ├── model: "gpt-4o"
  │
  └── choices (List)
        │
        └── [0]
              │
              ├── index: 0
              ├── finish_reason: "stop"
              │
              └── message
                    │
                    ├── role: "assistant"
                    ├── content: "Hello！"
                    └── tool_calls: [...]

If the msg.content is not empty and no tool_calls found, we can regard the task is finished. We can just return the msg.content.

If the tool_calls is found, means the LLM hope us to call a tool. First we need to update the message:

1
messages.append({"role": "assistant", "tool_calls": msg.tool_calls})

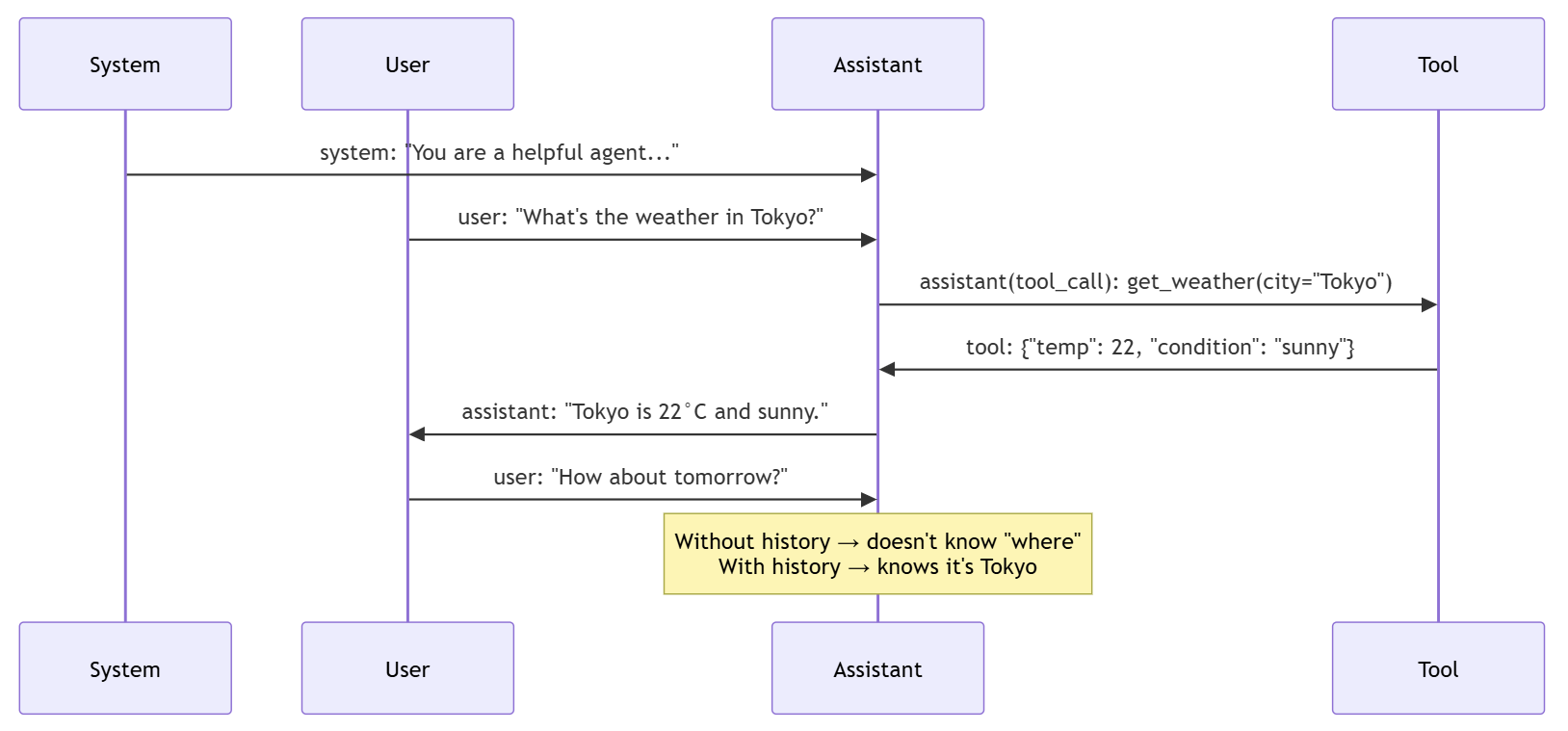

There are many kind of role, user represents the user, assistant represents the LLM, tool represents tools.

Now we append LLM’s info to messages, then we need to do the tool_call:

1
2
3
4
5
6
7
8
9
for tool_call in msg.tool_calls:
                args = json.loads(tool_call.function.arguments)
                result = eval(args["expression"])  # 仅示例，生产环境不要用 eval
                # ③ Observe：把结果塞回上下文
                messages.append({
                    "role": "tool",
                    "tool_call_id": tool_call.id,
                    "content": str(result)
                })

We get a a result of the tool_call.

Then we append the tool_call’s info to messages.

1.3.5 Append Context Example

e.g.

The original message:

1
2
3
messages = [
  {"role": "user", "content": "帮我算一下 (3 + 5) * 7 等于多少"}
]

Turn 1:

  1. Think: Agent will send message + tools to LLM. LLM think it is needed to call the tool. The LLM will return:

    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    msg.content = None # or a empty string or some prompt like "Let Me Calculate it for you."
    msg.tool_calls = [
        ChatCompletionMessageToolCall(
            id="call_abc123",
            type="function",
            function=Function(
                name="calculator",
                arguments='{"expression": "(3 + 5) * 7"}'
            )
        )
    ]

  2. Act: Agent knows that LLM try to call a tool named “calculator”. It will first add the LLM’s decision into the context(message, Note: message is a global context, msg is only the LLM’s current reply.)

    1
    2
    messages.append({"role": "assistant", "tool_calls":
    msg.tool_calls}

    Now the global context is :

    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    messages = [
        # [0] the original user input
        {"role": "user", "content": "帮我算一下 (3 + 5) * 7 等于多少"},

        # [1] newly added：LLM dicide to call tool
        {"role": "assistant", "tool_calls": [
            {
                "id": "call_abc123",
                "type": "function",
                "function": {
                    "name": "calculator",
                    "arguments": '{"expression": "(3 + 5) * 7"}'
                }
            }
        ]}
    ]

    then agent knows that there’s a tool_call, so it will call the tool and get some output(result):

    1
    2
    args = json.loads (tool_call.function.arguments)
    result = eval (args ["expression"]) #Here the result is 56

  3. Observe

    After the tool_calling, agent will append the tool_calling info to the context:

    1
    messages.append({"role": "tool", "tool_call_id": "call_abc123", "content": "56"})

    Now the message is:

    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    messages = [
        # [0] the original user input
        {"role": "user", "content": "帮我算一下 (3 + 5) * 7 等于多少"},

        # [1] LLM dicide to call tool
        {"role": "assistant", "tool_calls": [...]},

        # [2] newly added：result of the tool_calling
        {"role": "tool", "tool_call_id": "call_abc123", "content": "56"}
    ]

Turn 2:

  1. Think: Agent sends messages and tool to LLM. LLM can see the history:

    • What did user ask?
    • LLM has called calculator.
    • The calculator returned the result: 56.

    The LLM judges that the info is enough, and returns pure text reply:

    1
    2
    msg.content = "(3 + 5) * 7 的结果是 56。"
    msg.tool_calls = None

    Then the loop will cancel:

    1
    2
    if msg.content and not msg.tool_calls:
        return msg.content

2. Architecture

2.1 Loop of Agent

The primary agent loop only has 3 simple phase:

Think -> Act -> Observe

While the production-grade agent always has 6 or more phase in the loop.

  1. Pre-process
  2. Context Assembly
  3. LLM Inference
  4. Parse & Route
  5. Validate & AuthZ
  6. Execute & Observe
  7. Finalize
Phase What to do Why should do
Pre-process clean the input tokens
sensitive words filtering
rate limiting		 prevent the malicious attack
Context Assembly assemble: System Prompt + History + Tool Definition + Memory decide the info that LLM could see
LLM Inference call the LLM，including Timeout, Retry and Degrade LLM is not absolutely reliable
Parse & Route Parse the output tokens of LLM The output of LLM is commonly not what we need, especially the format of answer. We should handle the output prompts.
Validate & AuthZ parameter validation
permission check
user confirmation		 prevent the danger operation
Execute & Observe execute tool
capture exception
truncate long results		 the result of call_tool may be wrong, and exceed the context limit

The Agent would not run indefinitely. The termination condition includes:

  • FINAL_ANSWER: LLM proactively output the answer (normal termination).
  • MAX_STEPS: reach the max loop turn (prevent the endless loop)
  • REPETITION: Detect the repetitive action(trapped in endless loop)
  • TIMEOUT: LLM call timeout.
  • USER_ABORT: User proactively cancel

2.1.1 Pre-Process phase

e.g:

1
2
3
4
5
6
7
8
def preprocess(user_input: str) -> str | None:
    if len(user_input) > MAX_INPUT_LENGTH:
        return "Input is too long, please simplify it"
    if contains_blocked_keywords(user_input):
        return None  # Deny to handle.
    if rate_limiter.is_exceeded(user_id):
        return "Request too frequently"
    return sanitize(user_input)  # sanitize the input

2.1.2 Context Assembly

This is the most easily underestimate part in Agent.

Before call LLM, we need to precisely control the content we put in context

  • [System Prompt] ← Role Definition, Behavior Constraints, Output Format.
  • [Tool Definitions] ← The JSON Schema of available tools.

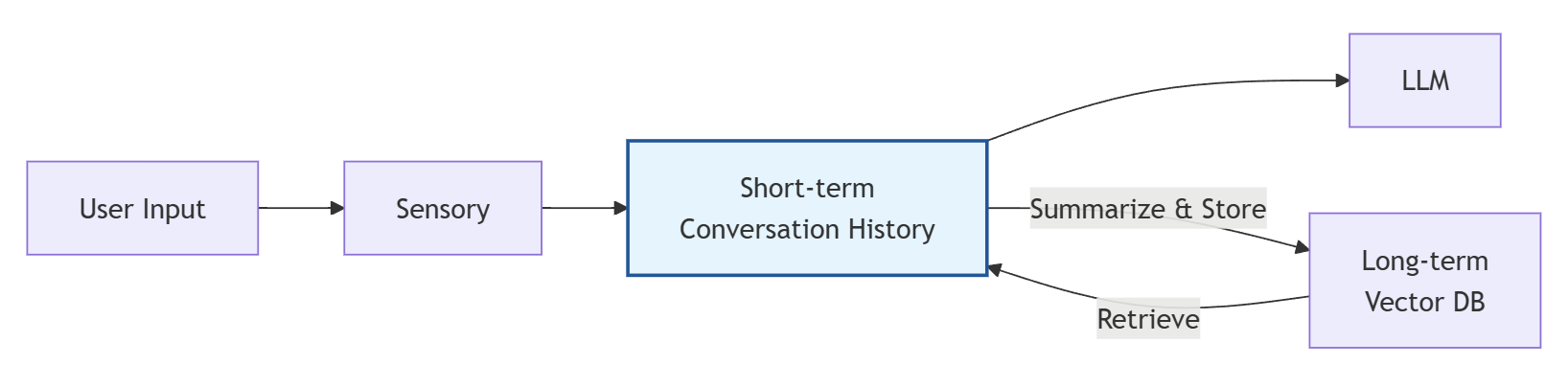

  • [Memory Injections] ← Relative contents retrieved in memory.
  • [Conversation History] ← The Thought-Action-Observation history of this round of dialogue.
  • [User Message] ← Current Input.

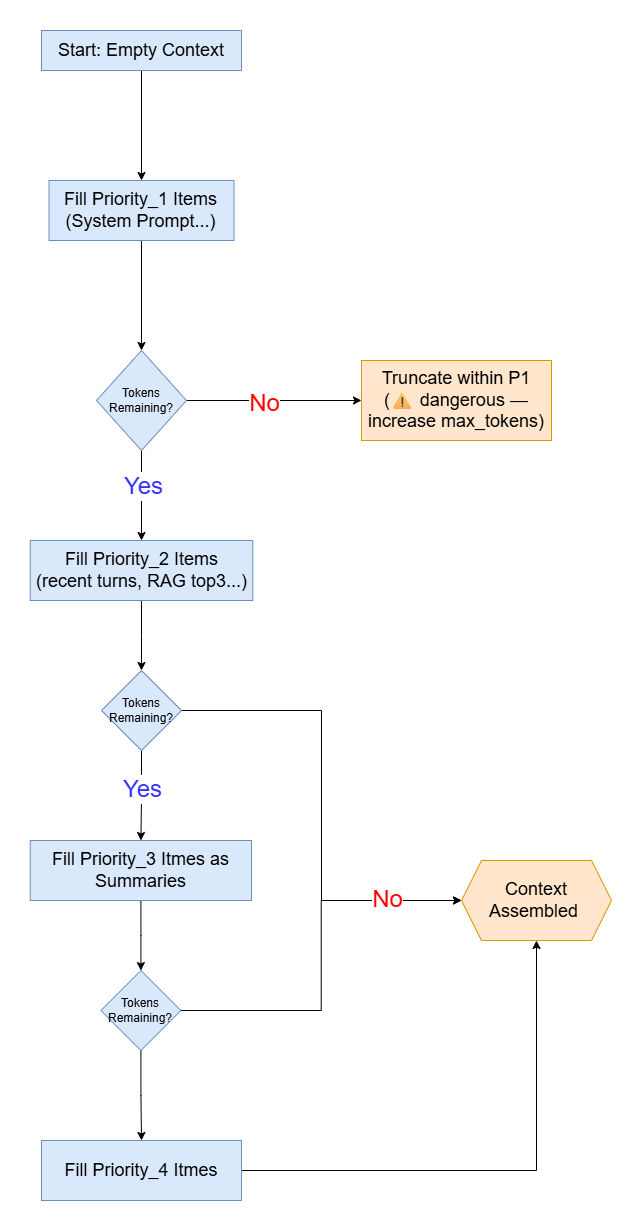

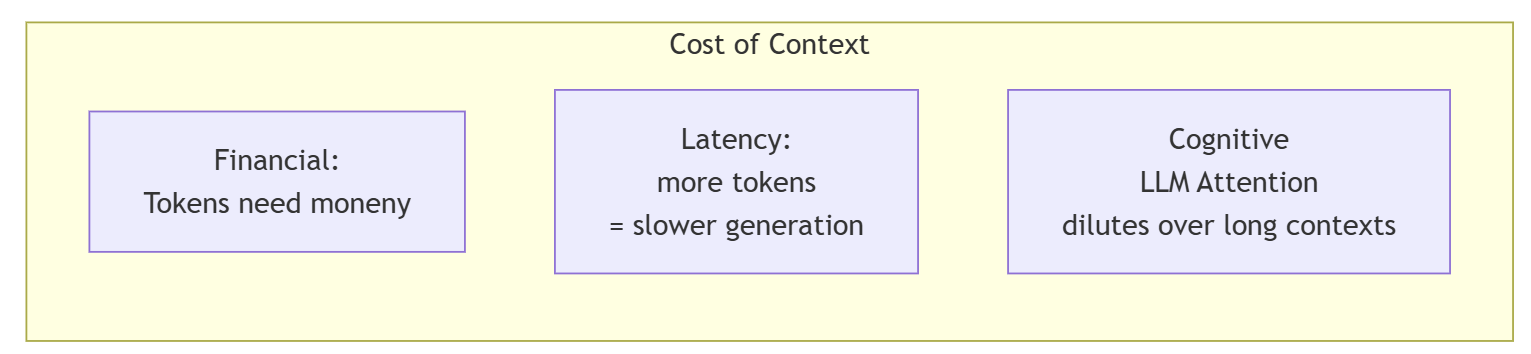

Key decision: The window is limited, what to put in and what to leave out?

2.1.3 LLM Inference

When the agent call the agent, code likes this:

1
2
3
4
5
6
7
8
9
10
11

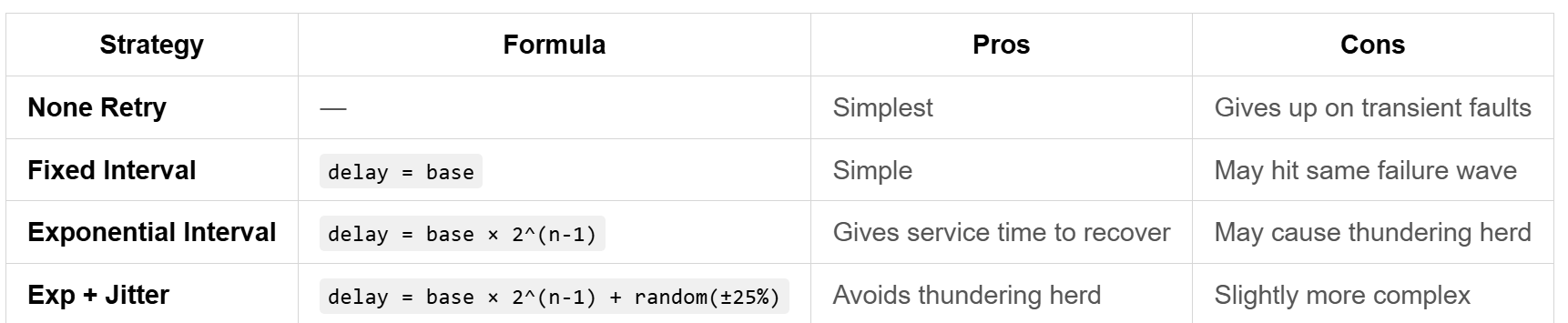

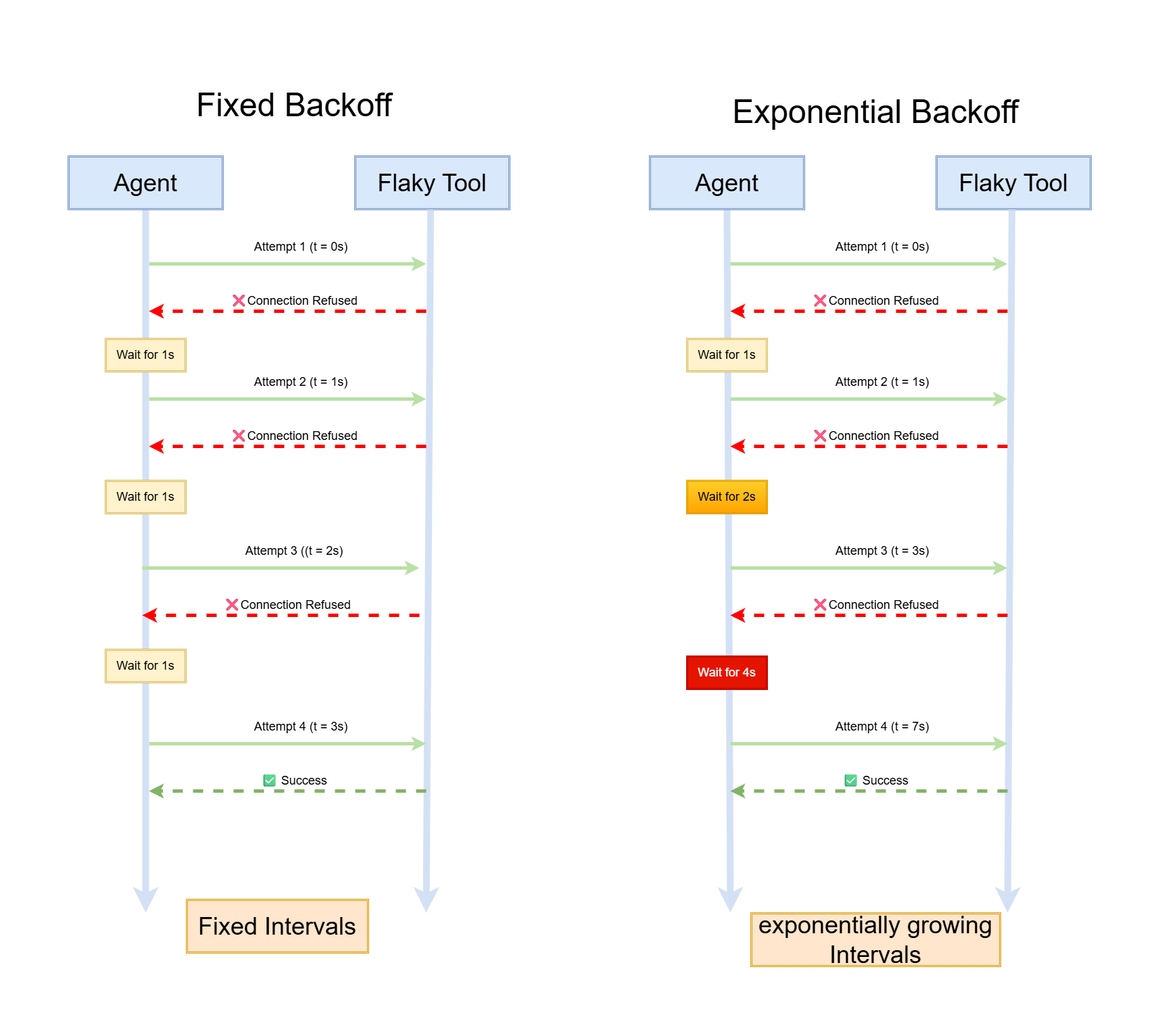

def call_llm_with_retry(messages, tools, max_retries=3):
      for attempt in range(max_retries):
          try:
              return llm.chat(messages, tools=tools, timeout=30)
          except TimeoutError:
              if attempt == max_retries - 1:
                  return fallback_response("LLM response timeout, please try later")
              time.sleep(2 ** attempt)
          except RateLimitError:
              time.sleep(5)
      return error_response("Service is not available now")

2.1.4 Parse & Route

Agent parses the output tokens of LLM:

1
2
3
4
5
6
7
8
def parse_llm_output(response) -> Route:
    if response.type == "text":
        return Route( target="user", data=response.text)
    if response.type == "tool_use":
        if response.tool_name not in registered_tools:
            return Route(target="llm", error=f"Tool does not exist: {response.tool_name}")
        return Route(target="executor", data=response)
    return Route(target="llm", error="Can't parse output, please retry.")

2.1.5 Validate & AuthZ

Sometimes, some permissions are required for tool_call. And the agent should ask for the permissions from user.

1
2
3
4
5
6
7
8
9
10
def validate_tool_call(tool_name, args, user_role):
    tool = registry.get(tool_name)
    if tool.requires_confirmation:
        if not user_approved(tool_name, args):
            return {"error": "User denied this operation."}
    if tool.min_role and user_role < tool.min_role:
        return {"error": "No permission"}
    # Parameter Format Validation
    validate_schema(args, tool.parameters_schema)
    return None  # Pass

2.1.6 Execute & Observe

After get the permission, agent can call the tool:

1
2
3
4
5
6
7
def execute_tool(tool_name, args):
      try:
          result = registry[tool_name](**args)
          # 结果截断（防止撑爆 context window）
          return truncate(str(result), max_chars=4000)
      except Exception as e:
          return f"Tool_Call Error: {e}"

2.1.7 Finalize

This round is over, agent needs to do some other jobs to make sure that task will go on correctly in the next round:

1
2
3
4
5
def finalize(messages, result):
      log_turn(messages, result)        # record logs
      update_token_usage(messages)      # update token usage
      maybe_save_to_memory(result)      # save important info into memory
      return format_output(result)      # return formated text to user

2.2. Single-Agent architecture pattern

We have discussed the ReAct architecture, but ReAct is not the only agent architecture pattern. There are 4 more prevailing architecture patterns.

The key is to know when to use which one.

Patterns Conclusion appropriate for not appropriate for
ReAct Take one step at a time uncertain, need exploration The entire process can be planned in advance
Plan-Execute Plan before act Multiple steps, with dependencies highly uncertain
Reasoner-Actor Strong model thinking, weak model doing cost-sensitive, frequently invoked simple task
CoT+Tool Embedding tools in reasoning Reasoning as the main approach, tools as a supplement precise structured output required

2.2.1 ReAct Architecture

Take one step at a time, think clearly before act in each step.

Appropriate For Not Appropriate For
Need external info to decide Task can be planned in advance
Highly uncertainty, requiring exploring Strong dependency between steps
Blurred task boundaries Task is simple and clear

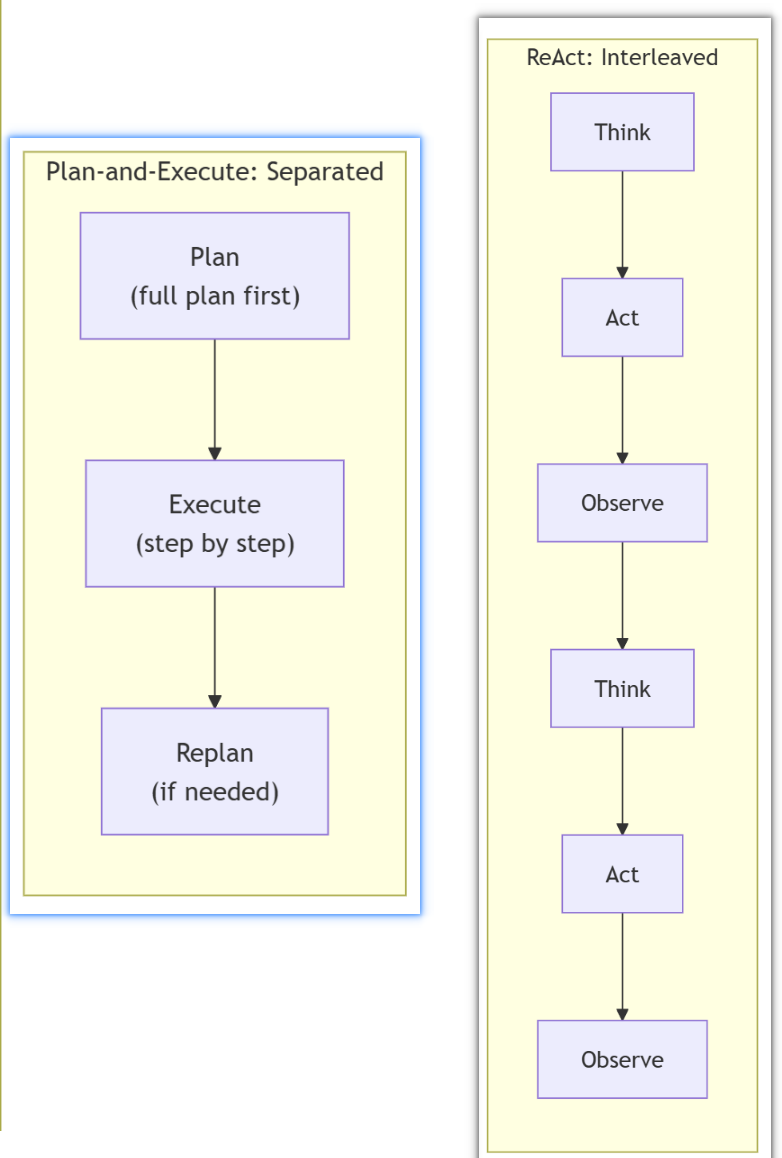

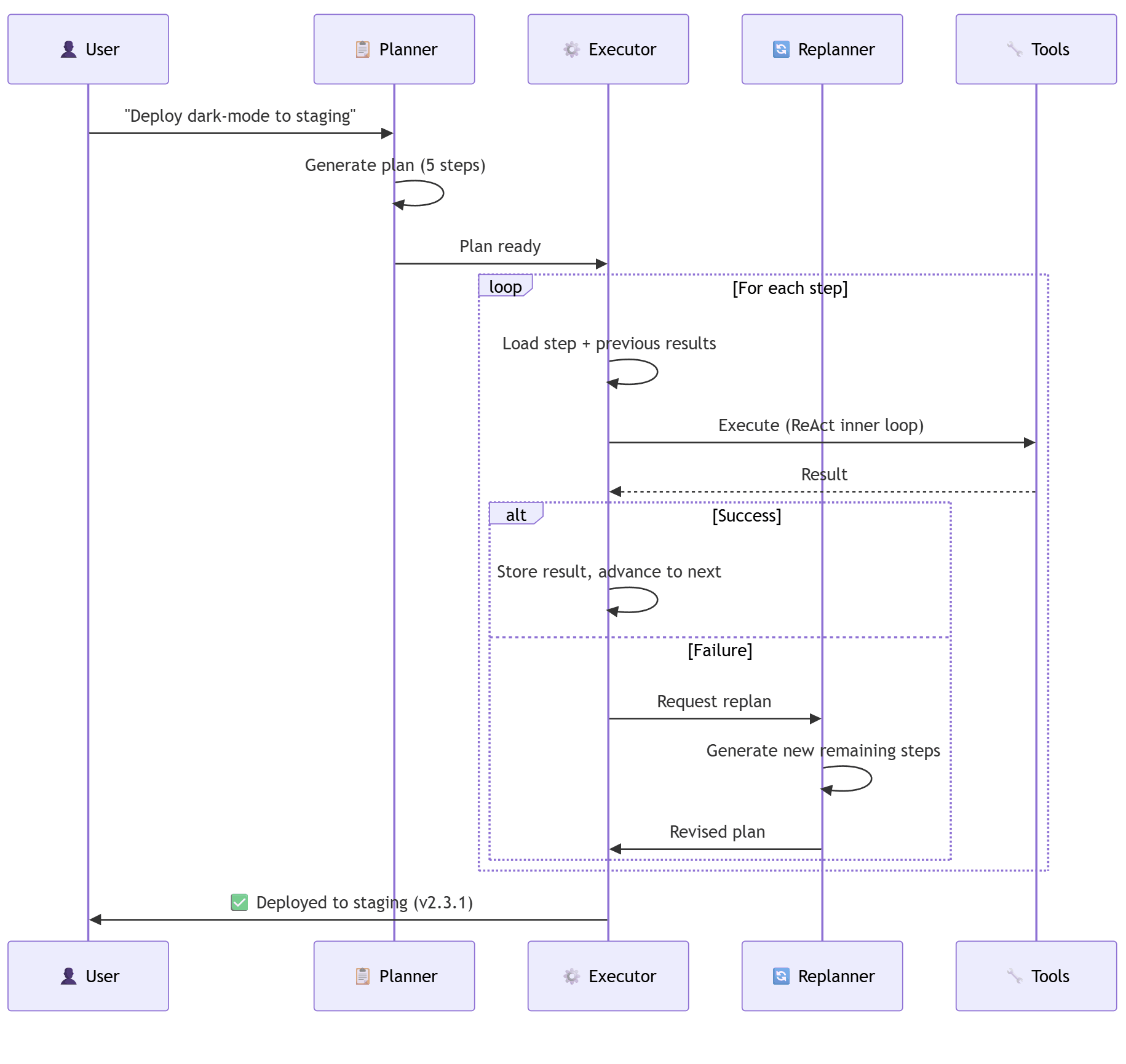

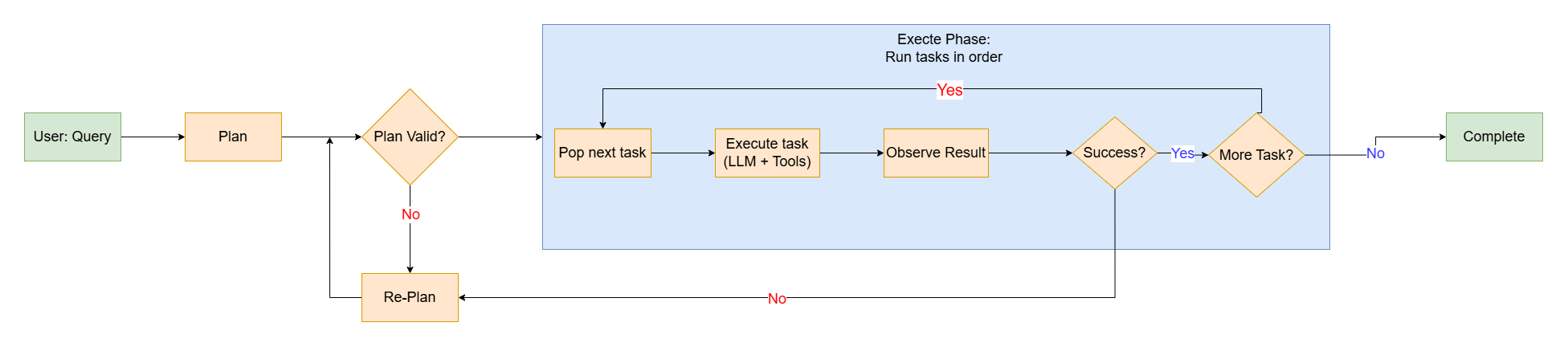

2.2.2 Plan-Execute Architecture

Make a plan before taking action, draw a complete roadmap first, and then follow the map to find the right path.

Step 0: Generate Plan→ [SubTask1, SubTask2, SubTask3, …] Step 1: Run SubTask1 → update state Step 2: Run SubTask2 → update state …If deviate the plan→ Regenerate Plan

Appropriate For Not Appropriate For
Complex but clearly structured tasks Highly uncertain task
Multiple steps, with dependencies Simple task, no need to plan
Need to anticipate resources/time Requires frequent external information

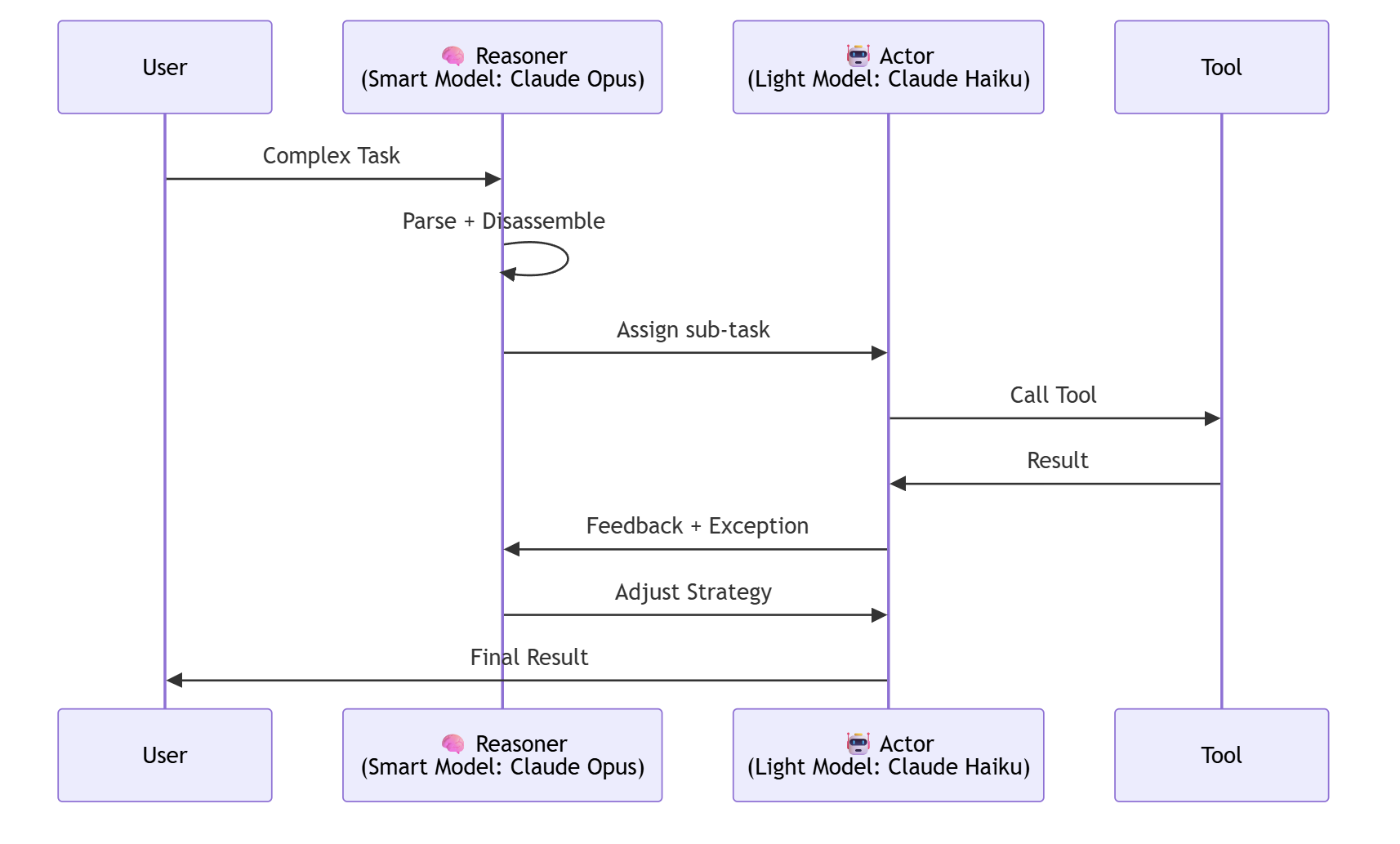

2.2.3 Reasoner-Actor Architecture

Let the smartest model think, and let the cheapest model do the work.

Appropriate For Not Appropriate For
Few calls of Reasoner, frequent calls of Actor. Simple task (no need for 2 LLM)
Cost-sensitive (weak-model saves money) Latency-sensitive (Call two LLM will cost more latency)
The requirements for reasoning and execution abilities are different

2.2.4 CoT + Tool Architecture

In a nutshell: “Use tools to verify assumptions at any time in the thought chain.”

Difference from ReAct: ReAct follows an explicit Thought-Action-Observation format.

CoT+Tool, on the other hand, “incidentally” utilizes tools during the natural reasoning process.

1
2
3
4
5
ReAct format (structured):

Thought: I need to know X
Action: search("X")
Observation: X = 42
1
2
3
4
CoT+Tool format:

First, I need to know what the value of X is.
[Call search("X") → X = 42] Since X = 42, then Y should be equal to ..
Appropriate For Not Appropriate For
Reasoning is the main approach, with tools serving as a supplement The action of each step needs to be parsed
The model needs to be allowed to perform freely A precise structured output is required

2.2.5 Example

ReAct vs Plan-Execute vs Reasoner-Actor:

Task: “帮我做一份北京三日游攻略，包括天气、景点和预算”

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
============================================================
  [ReAct 模式] 规划 北京 旅行
============================================================
  💭 需要了解天气信息
  🔧 search('北京天气')
  👁️ 北京未来三天：晴转多云，28-33°C，偶有阵雨...
  💭 需要了解景点信息
  🔧 search('北京景点')
  👁️ 热门景点：故宫(60元)、长城(45元)、颐和园(30元)、天坛(15元)、鸟巢(50元)...
  💭 景点信息已够，但还需要价格信息...
  💭 需要了解住宿信息
  🔧 search('北京住宿')
  👁️ 经济型酒店：300-500元/晚；中档：500-800元/晚...
  💭 需要了解交通信息
  🔧 search('北京交通')
  👁️ 地铁单程3-9元，打车起步价13元...

============================================================
  [Plan-Execute 模式] 规划 北京 旅行
============================================================
  📋 计划:
    1. 查询天气
    2. 查询景点和价格
    3. 查询住宿
    4. 查询交通
    5. 合成攻略 (依赖: [1, 2, 3, 4])
  ⚙️ 步骤1: 查询天气
     → 北京未来三天：晴转多云，28-33°C，偶有阵雨...
  ⚙️ 步骤2: 查询景点和价格
     → 热门景点：故宫(60元)、长城(45元)、颐和园(30元)、天坛(15元)、鸟巢(50元)...
  ⚙️ 步骤3: 查询住宿
     → 经济型酒店：300-500元/晚；中档：500-800元/晚...
  ⚙️ 步骤4: 查询交通
     → 地铁单程3-9元，打车起步价13元...
  📝 步骤5: 合成攻略（基于前序结果合成）

============================================================
  [Reasoner-Actor 模式] 规划 北京 旅行
============================================================
  🧠 Reasoner (Opus): 分析需求...
  🤖 Actor (Haiku) #0: search('北京天气') → 北京未来三天：晴转多云，28-33°C，偶有阵雨...
  🤖 Actor (Haiku) #1: search('北京景点') → 热门景点：故宫(60元)、长城(45元)、颐和园(30元)、天坛(15元)、鸟巢(50元)...
  🧠 Reasoner (Opus) #2: analyze('根据景点信息，设计三日行程') → 基于上下文推理
  🤖 Actor (Haiku) #3: search('北京住宿') → 经济型酒店：300-500元/晚；中档：500-800元/晚...
  🤖 Actor (Haiku) #4: search('北京交通') → 地铁单程3-9元，打车起步价13元...
  🧠 Reasoner (Opus) #5: synthesize('综合所有信息，生成攻略') → 基于上下文推理
  🧠 Reasoner (Opus): 综合所有 Actor 收集的信息，生成最终攻略

2.3. Agent Prompt Engineering

The Prompt in Agent is not the same as it in LLM. You not only need to tell it “who you are”, but also “what tools you have, when to use them, what format to output, and what absolutely cannot be done”.

The vast majority of agent behavior issues stem from poorly written system prompts. Prompts cannot be casually composed; each level has its own nuances.

Agent Prompt has a 5-layer structure.

2.3.1 Role Definition

Here are some demo prompts:

1
2
# ❌ too blurred:
Role_Definition: """You are an AI assistant."""
1
2
3
4
5
6
7
8
9
10
11
12
13
# ✅ precise role definition
Role_Definition =
"""
	You are an expert Agent in data processing. Your core ability is：
		- Use tool: SQL to search in database.
		- Use tool: Python to calculate data and visiblize data.
		- Use tool: Search to search external info.

  	You are not：
  		- a general-purpose chat robot(no small talk)
  		- a creative writer (with precise data and conclusions provided)
  		- a system capable of executing arbitrary commands (operating only within the scope of the tool)
"""

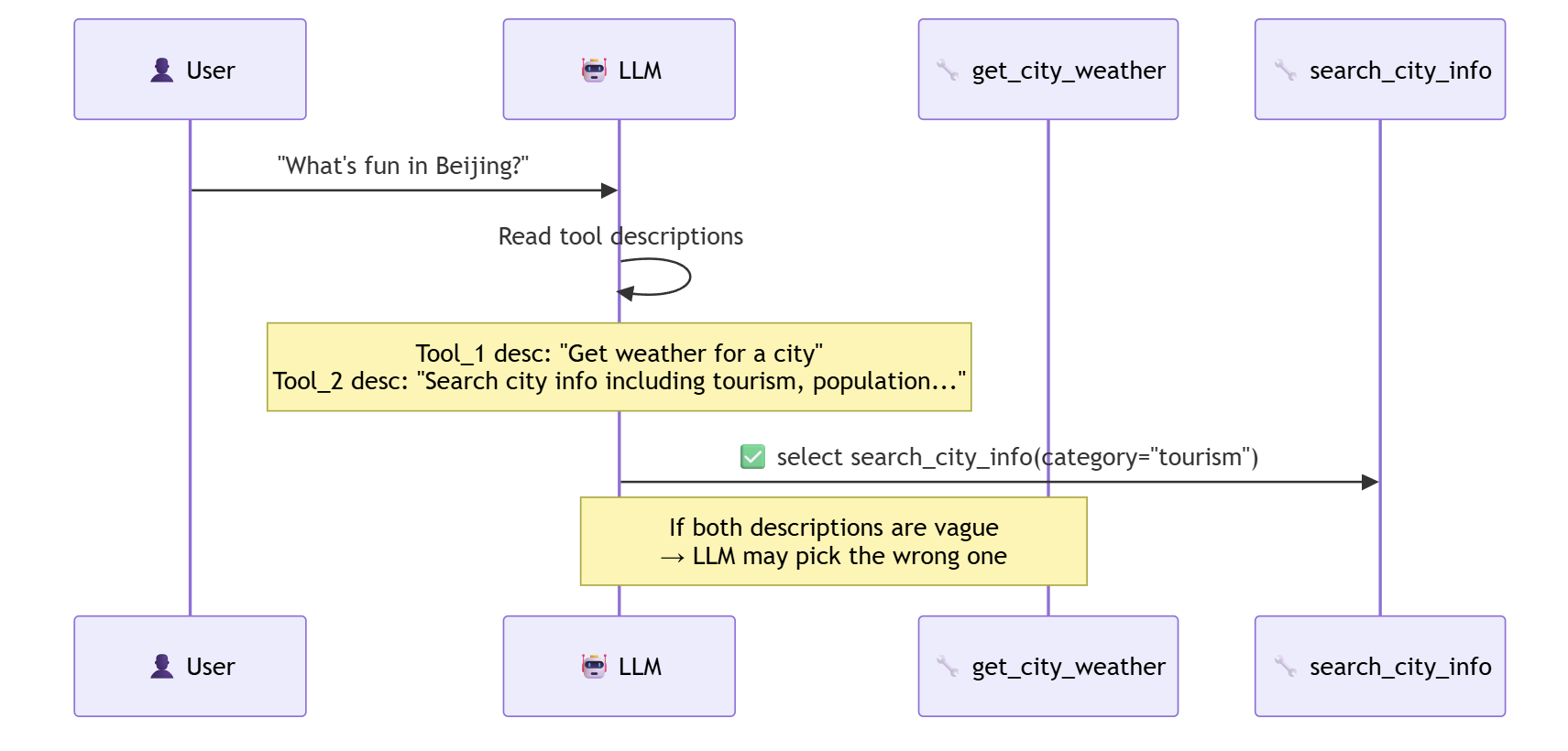

2.3.2 Tool Guide

It is not enough that just put JSON Schema in the tools parameters.

System Prompt must includes the strategy of tool_call.

e.g.

1
2
3
4
5
6
7
8
9
10
11
12
13
Tool_Guide =
"""
## Strategy of tool call:
 - get_weather: Use when user ask for real-time weather.
 - search_web: Use when you need upadate info or you are not sure for the result. Prioritize concise keywords（no more than 5 words）
  - calculate: Only for precise mathematical calculations.Do not use it for simple unit conversions (you can do it yourself).

### Tool Selection Decision Tree：
  1. Is the question related to real-time data? 	→ search_web
  2. Is the question related to precise calculations? 	→ calculate
  3. Is the question related to weather? 	→ get_weather
  4. None of the above? 	→ Use your trained knowledge to answer directly
"""

Key rule: Tell LLM when to use which tool. Just providing the schema is not enough.

2.3.3 Output Format Instruction

It’s important to give LLM correct output format:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
FORMAT_INSTRUCTION =
"""
## Output format (strictly follow)

You have two output formats:

### Use the following format when you call tools:
Thought: <Your inference process; Why you need this tool; What info do you expect to get?>
Action:<tool_name>(<json_args>)

### Wrong Example(Do not do like this)
"I need to research for this."(not specifed format)
Action: search_web(query=weather)(parameter must be valid JSON string)
Output Action and Final Answer at the same time(Output one of them).
"""

Key rule: Give LLM correct example and incorrect example.

2.3.4 Behavior Constrains

Give specific example, not a gross description.

1
2
3
4
5
6
7
8
9
10
11
12
BEHAVIOR_CONSTRAINTS =
"""
## Behavior Constrains(You can't obey)
  1. Never fabricate the result of tool_call. If call failure, just report faithfully.
  2. When performing the following operations, it is necessary to confirm with the user first:
   - Delete ang data.
   - Send messages/emails.
   - Modify system configuration.
  3. Three consecutive tool invocations returns errors, stop and report the issues. Do not retry infinitely.
  4. If user request an operation which is not within your scope of tool, explicitly refuse and explain the reasons.
  5. Product user's privacy: Do not leak unnecessary info in tool invocaation.
  """

2.3.5 Few-shot Example

This is a very important practice that you can show few examples to LLM so that LLM will answer more correctly.

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
FEW_SHOT_EXAMPLES =
"""
## demo dialogue
### demo 1: Query that needs tool_call
  User: What's the current temperature in San Francisco？
  Assistant:
  Thought: User ask for real-time temperature. I need to search for the real-time temperature.
  Action: get_weather({"city": "San Francisco"})

  [Tool Return: "San Francisco: Sunny, 18°C, Humidity 60%"]

  Assistant:
  Thought: Already get the real-time temperature of San Francisco. Now I can reply the user directly.
  Final Answer: San Francisco is now sunny，temperature 18°C，humidity 60%。

### demo 2: Query do not need tool_call
  User: What is Python？
  Assistant:
  Thought: This is a general knowledge question about the Python programming language. My training data already contains sufficient information, so there is no need to invoke any tools.
  Final Answer: Python is a high-level, interpreted, general-purpose programming language...

### demo 3: hanle a failed too_call
  User: Check the weather on Mars today.
  Assistant:
  Thought: User wants to check the weather of Mars，but my get_weather tool only support the city on earth.
  Action: get_weather({"city": "Mars"})

  [Tool Return: "Wrong: Unsupported City!"]
  Assistant:
  Thought: The tool dose not support to search for weather on Mars, I need to tell the User honestly.
  Final Answer: Sorry, my weather tool only supports Earth cities and cannot check the weather on Mars. If you need weather data for Mars, you can visit NASA's Mars Weather website.
"""

2.4 Safety Guardrails and Termination Conditions

The biggest risk difference between Agent and ordinary LLM calls lies in this: ordinary calls get it wrong and that’s it, but Agent calls that get it wrong will continue to make mistakes, and may even get further and further astray.

So it is necessary for us to build a guardrails for Agent:

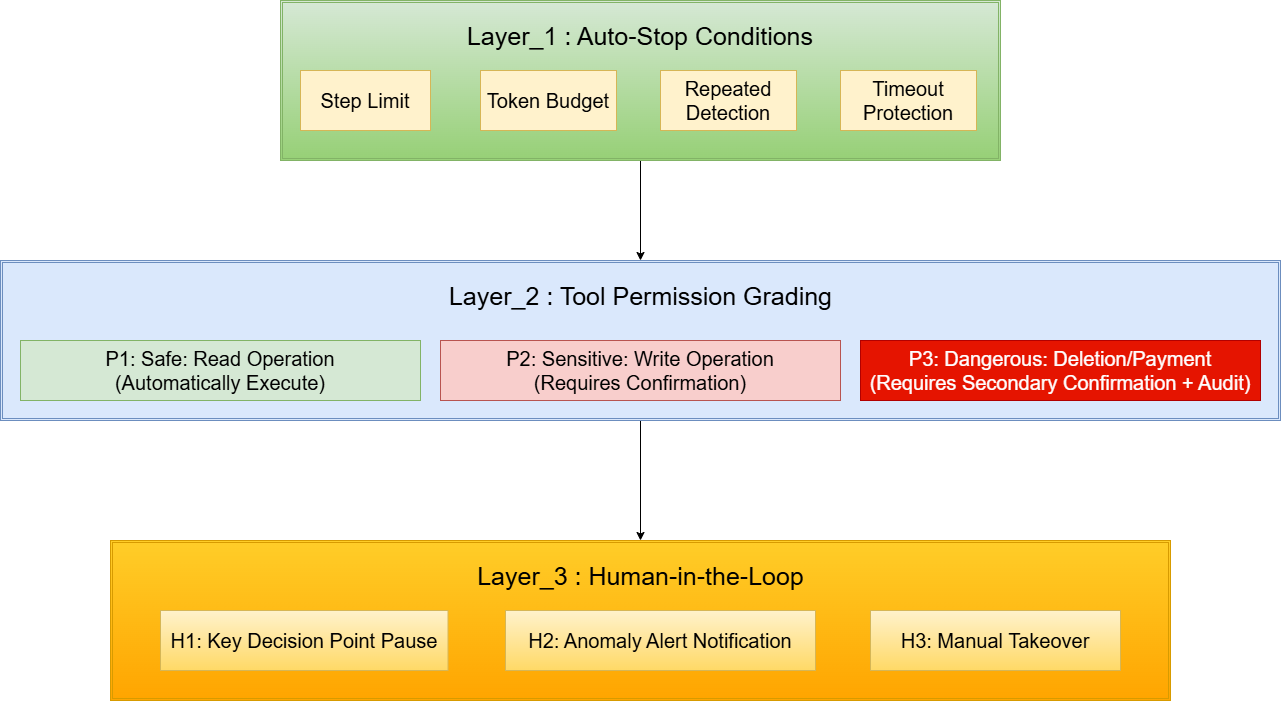

The three-layer guardrails model is like this :

2.4.1 Layer_1: Auto-Stop Conditions

The design principle is: An agent that terminates early with clear reasons is better than one in endless loop.

1
2
3
4
5
6
7
class SafetyConfig:
      max_steps: int = 10              # force to stop when steps is over 10
      max_tokens: int = 100_000        # force to stop when the budget is running out
      max_time_seconds: int = 120      # force to stop when total time is over 2 mins
      max_consecutive_errors: int = 3  # force to stop when there're 3 consecutive errors
      repetition_window: int = 4       # force to stop when there're 4 same actions
      max_tool_result_chars: int = 4000  # truncate the result of a single tool if it exceeds 4000 characters

2.4.2 Layer_2: Tool Permission Grading

We need classify different tools according to their operations:

1
2
3
4
class ToolPermission(Enum):
    SAFE = "safe"				# Read-only operation, execute automatically
    SENSITIVE = "sensitive"		# Write operation, need confirmation
    DANGEROUS = "dangerous"		# Irreversible operation, need two-step confirmation and audition

2.4.3 Layer_3 Human-in-the-Loop

Another interrupt of Agent is when it needs user to make decision, like confirmation, checkpoint or alternation of choice…

3. Tool

3.1 Tool Definition & Schema Design

Tool definitions are the only way an LLM understands “what I can do.” Schema quality directly determines tool-calling accuracy.

3.1.1 Anatomy of a Tool Definition

A complete tool definition has three core elements:

Element Purpose Example
name Unique ID the LLM uses to route among tools get_weather, search_city_info
description The most critical field — LLMs decide based on description, not name "search detailed information information of a certain city, including weather, population, tourist attraction..."
parameters
(JSON Schema)		 Constrains input types, formats, and value ranges {"city_name": {"type": "string", "enum": [...]}}

Optional extensions:

- returns_description — Tells LLM what to expect back

- deprecated — Flags outdated tools

3.1.2 Why Description Matters

LLMs route by description, not name. Two tools with similar names — description clarity directly impacts selection accuracy.

Key Principle: Write descriptions as an “operation manual for the LLM,” not an “API doc for developers.

3.1.3 Parameter Type System

Type Use Case Constraint Effect
string Text Most flexible, needs description
number / integer Numeric Auto-rejects non-numbers
boolean Toggle Prevents “maybe” hallucination
enum Finite choices Most valuable constraint — forces LLM to pick from valid options
object Nested structure Define sub-fields with properties
array List input Define element type with items

3.1.4 Good Schema vs Bad Schema

Comparing two definitions of the same tool:

Dimension ❌ Bad Schema ✅ Good Schema
description "search for a city" "Search information of certain city, including weather, population and tourist attractions...Use when user asks about a specific city."
parameter name q (vague) city_name + category (precise)
enum constrain None ["weather", "population", "tourism"]
type strictness string (all in one field) string + string with enum (strict classified)
LLM performance Stuffs everything into parameter q Calls correctly: city_name="Beijing", category="tourism"

Core Insight:

Schema isn’t describing a function signature — it’s writing a manual that LLMs read.

Good Schema = fewer hallucinations + fewer retries + less token waste.

3.1.5 Comparison of Two Prevailing Tool Definition

Now, we have 2 mainstream tool definition:

OpenAI (Function Calling) and Anthropic (Tool Use)

Function Calling:

1
2
3
4
5
6
7
8
{
    "type": "function"
    "function": {
    	"name": "..."
    	"description": "..."
    	"parameters": {"type": "object", "properties": {...}, "required": [...]}
	}
}

Tool Use:

1
2
3
4
5
6
{
      "name": "...",
      "description": "...",
      "input_schema": { "type": "object", "properties": {...}, "required": [...]
		}
}

Their core structure is identical; only the wrapper differs.

Anthropic is more concise (one less nesting layer).

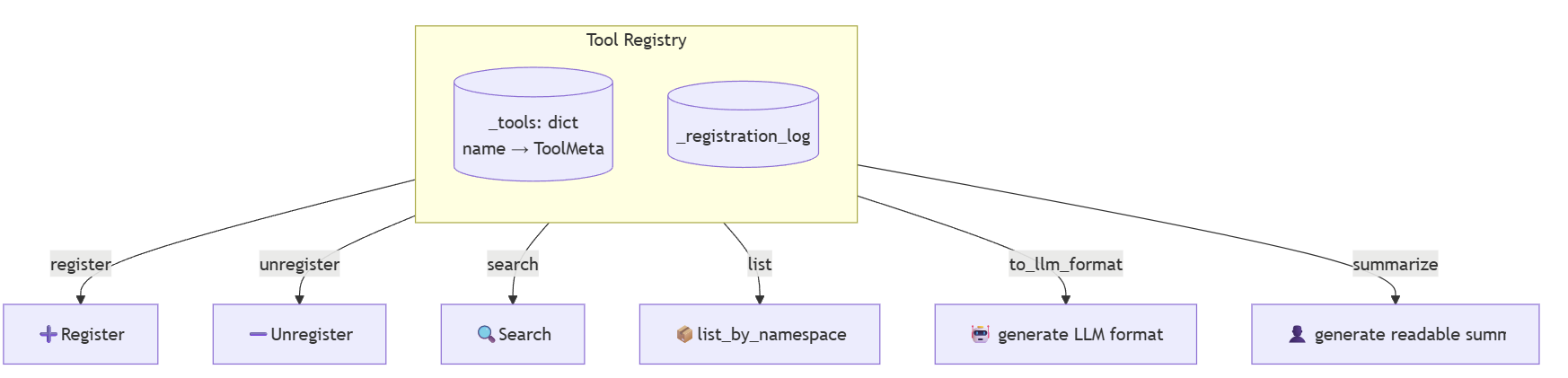

3.2 Tool Registry & Discovery

The tool registry is the Agent’s “capability catalog.” The Agent discovers what it can do and finds new tools at runtime through it.

3.2.1 Why a Registry

When you have 2-3 tools, a hardcoded dict works.

When you have 50+, you need:

  • Centralized Management: centralized register, unregister and search
  • Discover Mechanism: Agent can ask “any weather-related tools?”
  • Metadata: permission, version and cost estimate

3.2.2 Namespace

Flat naming breaks down around 15+ tools.

So it is necessary to introduce namespaces:

Namespace system likes a directory system, it allows you to classify your item by certain rules.

For example, we can classify the tools into file-class, web-class, email-class and so on.

Flat Name Namespace
read_file
write_file
search_web
fetch_url
calc
delete_file		 file.read
file.write
web.search
web.fetch
cal.evaluate
file.delete

This way, we have some benefits:

  1. Group (for Human):

    Human can recognize thefile.* is a set of file operating tools; web.* is a set of web operating tools. No need to traverse the entire tool list.

  2. Discover (for LLM):

    No need for LLM to traverse all tools. When LLM think there’s a operation needs a file-write, it will check file.* to find the tool it needs.

  3. Strategy (for System):

    “User has installed email-extension” ➡ Register the email.* namespace

    “Current env is a ‘read-only’ env” ➡ Forbidden file.write and file.delete.

    “Current user is a guest” ➡ file.* can only use file.read; the web.* is all available.

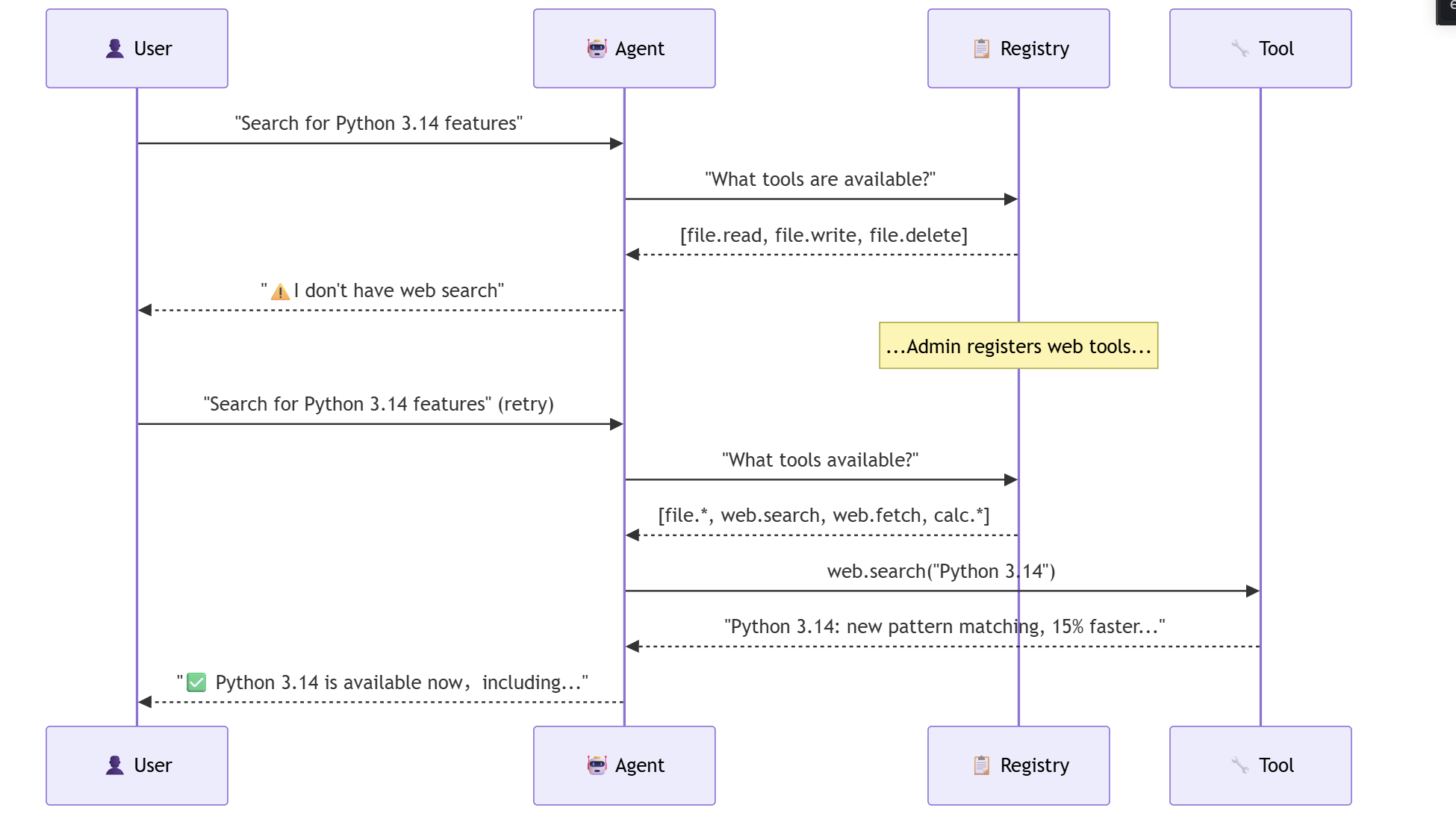

3.2.3 Dynamic Registration & Discover

An Agent’s capabilities shouldn’t be frozen at startup.

These scenarios need to change the registry.

  1. User installs a ne w plugin ➡ register new tools

  2. Permission changes ➡ unregister sensitive tools

  3. Feature flags ➡ enable/disable per environment

  4. Agent Search ➡ Agent searches for “any tool that can send email ?” Then find ‘email.send’

    The namespace makes Batch Management possible.

3.2.3 Tool Selection Strategies

Core Problem: Agent has 50 tools. Before call LLM, Agent should put which tool-definition into prompt ?

There are three strategies of tool selection:

Strategy Approach Token Cost Accuracy When
All-tools Put all definitions in prompt High (~120 tokens/tool) High (when few tools) < 10 tools
Pre-filter Search first, then add to prompt Low Depends on search quality > 20 tools
Reveal Give summaries, expand on LLM request Medium High (two-stage) > 50 tools

Contrast of three different methods with a example of weather cheking:

  1. All-tools:

    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    LLM Prompt:
    	Tools available:
    		file.read, file.write, file.delete,
    		web.search, web.fetch, db.query,
    		db.insert, email.send, calc.evaluate,
    		... (total 50 tool definitions, ~6000 tokens)

    	User: "How's today's weather of Beijing?"

    LLM: (Search in the 50 tools) get_weather

    Advantage: LLM has global-view, maybe can have some unexpected link.

    Disadvantage: Token-cost is very high, and because of rich choice, LLM might be confused.

  2. Pre-filter:

    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    User: ""How's today's weather of Beijing?""

    registry.search("weather") → find 3 candidates.

    LLM prompt:
    	Tools available:
    	get_weather, web_search, city_info
    	(only 3 definitions, about 360 tokens)

    LLM: (Search in the 3 tools) get_weather

    Advantage: It can save a lot of token, improves the efficiency.

    Disadvantage: Search qualities determines the upper limit; If the tool can not be found, the LLM will never see it.

  3. Reveal:

    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    andStep 1:
    	LLM Prompt:
    		categories:[file(5), web(3), db(4),
                        weather(2), email(3)]

    	LLM: "I need weather and web"

    Step 2:
    	LLM Prompt:
    		weather: get_weather, forecast_7days
    		web: web.search, web.fetch

    	LLM: (Search in the 4 tools) → get_weather

    Advantage: Two steps strategy, high accuracy, support lots of tools.

    Disadvantage: It takes one more LLM Call, which improves the latency and token-cost.

Tool Num 1 - 10 10 - 30 30 - 100
Strategy All Filter Reveal
Reason low token-cost
LLM has a comprehensive view		 filter the item to improve efficiency
Avoid choice explode		 two-step to keep accuracy
Avoid choice explode
1
2
3
4
5
6
7
8
9
10

if len(registry) < 10:
    tools = registry.to_llm_format()           # All
elif len(registry) < 30:
    tools = registry.to_llm_format(            # Pre-filter
        filter_func=lambda t: t.namespace in relevant_namespaces
    )
else:
    tools = reveal_step_1(registry)            # Reveal

3.2.4 Tool Metadata

Beyond what the LLM needs, the registry should store management metadata:

Field Purpose
category Group by function (file, web, db, email…)
permission_level safe / sensitive / dangerous → Safety gating
version API versioning
cost_estimate Token/Time/Money →Scheduling decisions
tags Free tags for flexible search
deprecated Flag for deprecation
func Lookup at execution time

3.3 Execution Orchestration & Parallel Execution

When an Agent needs to call multiple tools at once, execution strategy determines efficiency. Not all tools must run sequentially — understanding dependencies maximizes parallelism.

3.3.1 Sequential vs Parallel

If the tools have no dependency, they can be called individually :

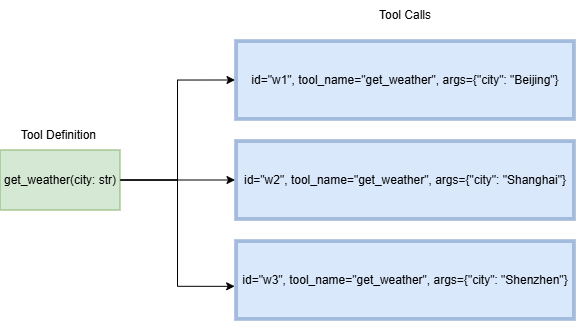

get_weather is a tool definition, but it supports parallel call. The call parameters of each time are different:

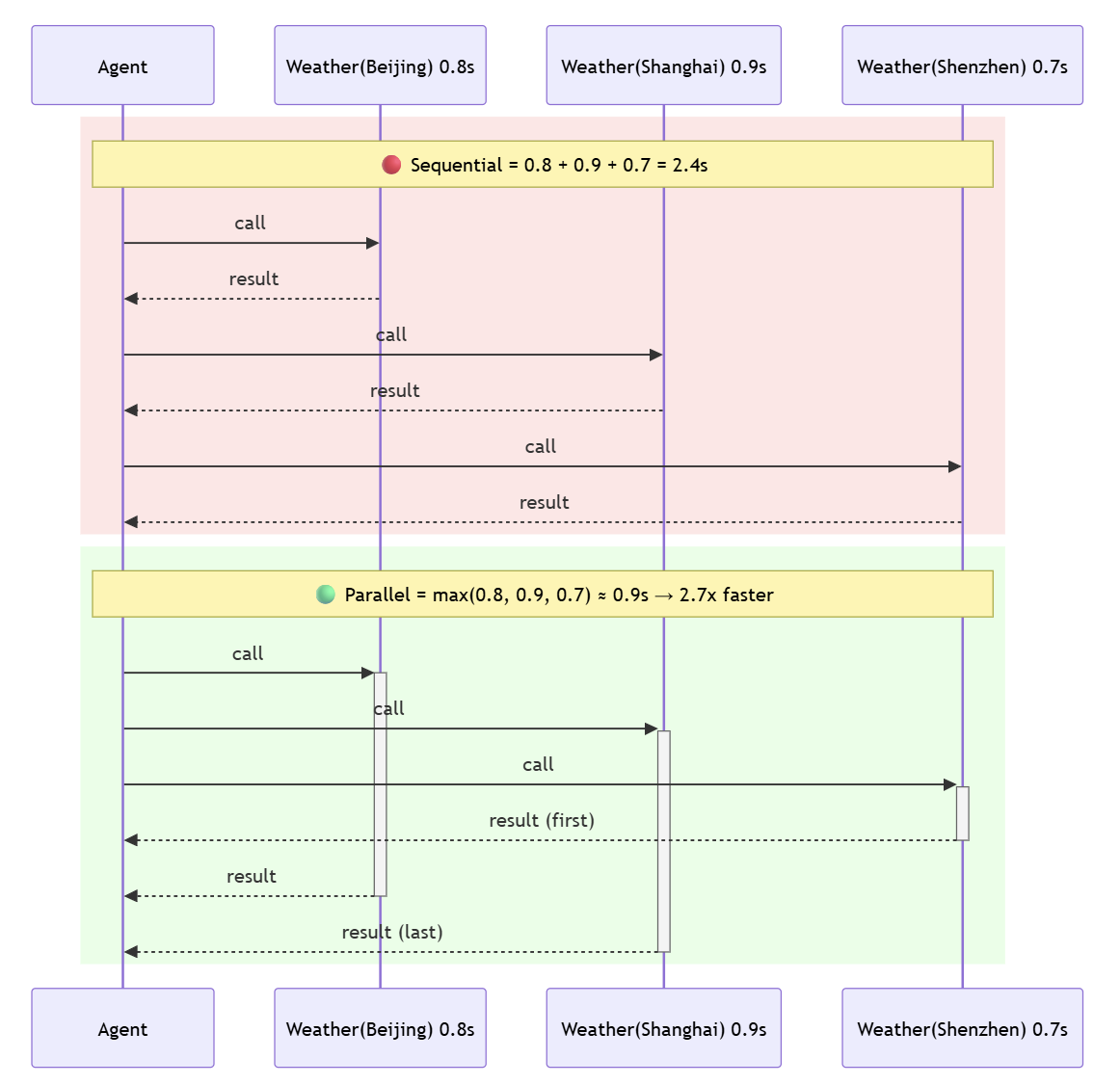

Sequential: total_time = Σ(t_i)

Parallel (no deps): total_time = max(t_i)

3.3.2 Dependency Graph

The standard of judging if the tools could be called parallel is that if their dependences have conflicts.

1
2
3
4
5
6
@dataclass
class ToolCall:
    id: str
    tool_name: str      # This can be the same as other tools.
    args: dict
    depends_on: list[str] = []  # ← This is the key.

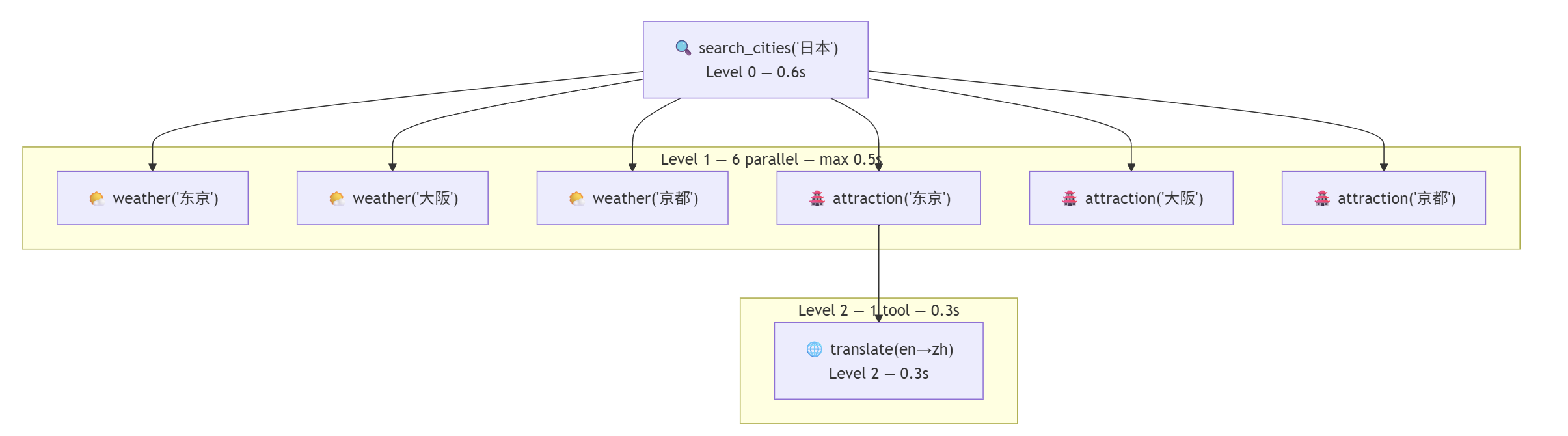

In real scenarios, tool calls form a DAG(directed acyclic graph).

e.g. Use plan a trip to Japan Trip in Chinese (规划日本旅行):

Plan Japan trip → search cities → parallel weather + attractions → translate

In this example, the translate tool_call is dependent on the the others, so it can only be called at last.

3.3.3 Three Execution Modes

Mode Strategy Use Case Python
SEQUENTIAL Strict order Each call depends on previous output for call in calls: call.result = tool(**call.args)
PARALLEL All at once All calls independent ThreadPoolExecutor + as_completed
DEPENDENCY_AWARE Topo sort → parallel per level Mixed dependencies Topology grouping → intra-layer parallelism, inter-layer serialism

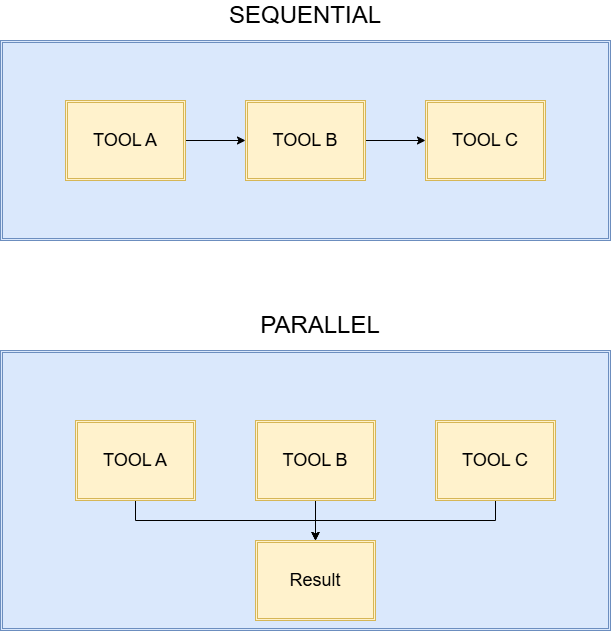

Sequential and Parallel work flow is as follows:

The dependency_aware structure is like this:

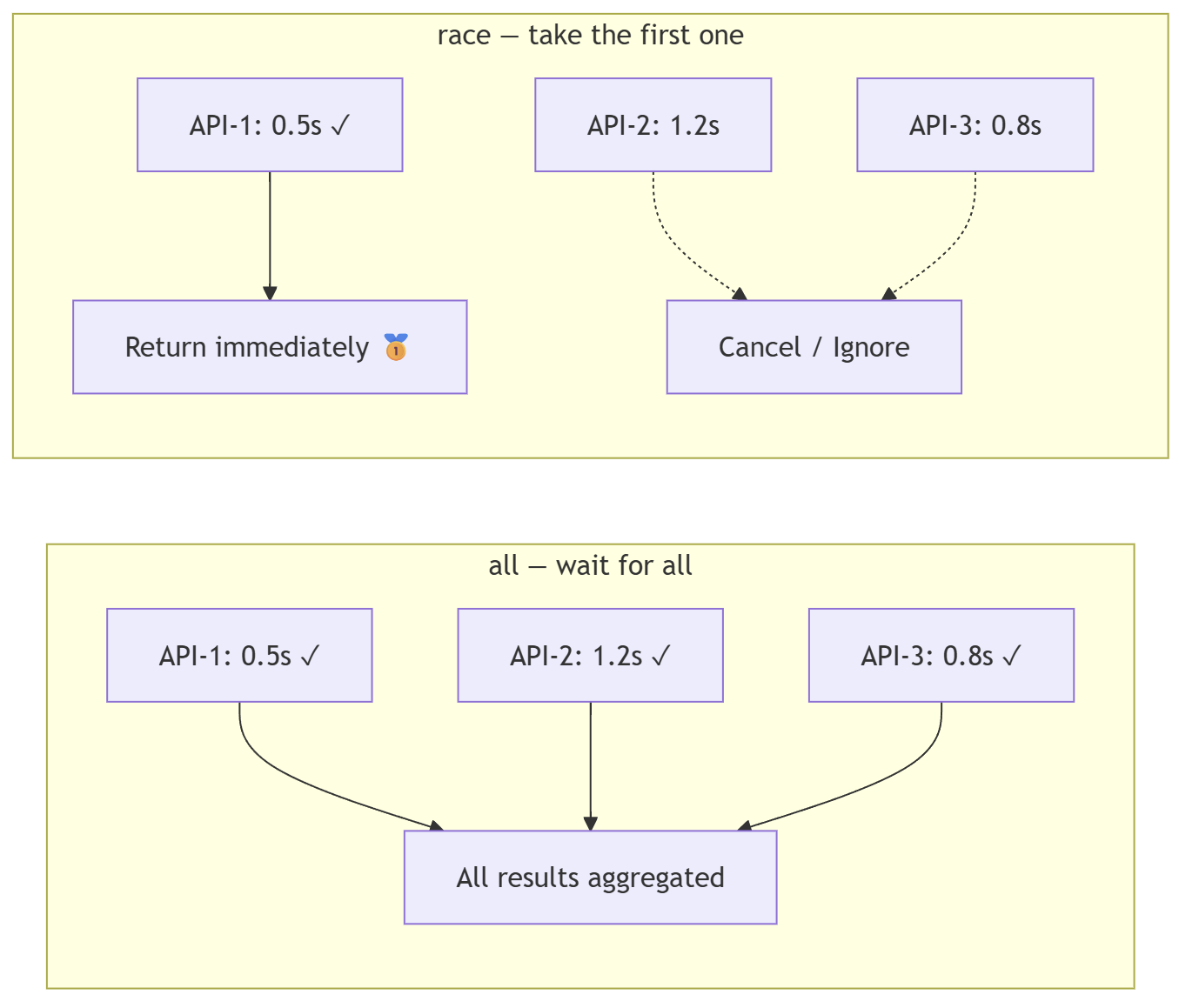

3.3.4 Race Pattern and All Pattern

Race Pattern and All Pattern define “when is it done”:

Pattern Completion Example
all() Wait for all tool_call Need complete dataset
race() Return when the first tool_call success Competing backup APIs, take fastest one

3.3.5 Timeout Management

Their are two types of timeout to distinguish:

Timeout Type Scope After Timeout
per_tool Single tool call That single tool call fails, others continue
total Entire execution batch Cancel all pending calls
1
2
3
4
5
6
7
# Ideal configuration
ExecutionEngine.execute(
    calls=tool_calls,
    mode=DEPENDENCY_AWARE,
    per_tool_timeout=10.0,   # Max 10s per tool
    total_timeout=60.0,      # Max 60s for entire batch
)

3.4 Error Handling & Retry Strategies

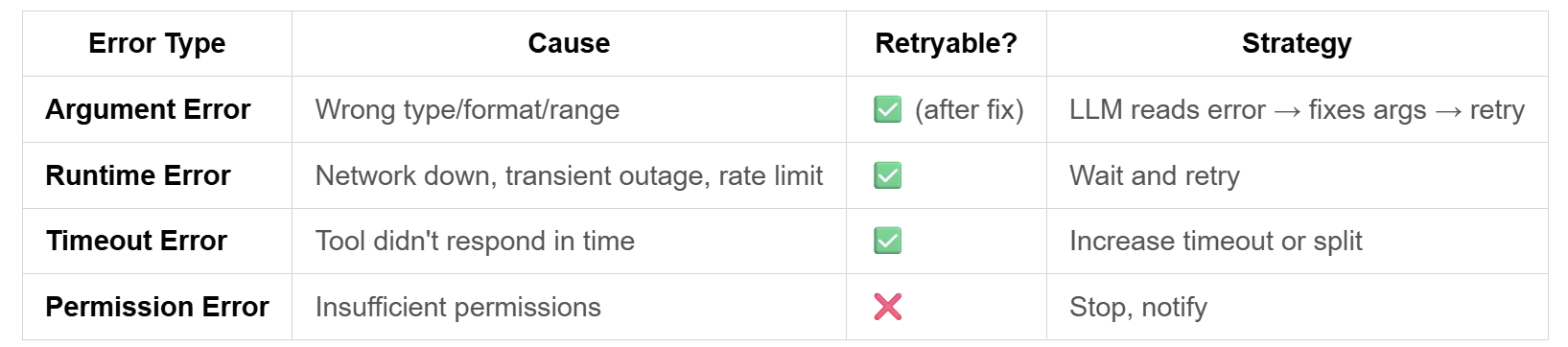

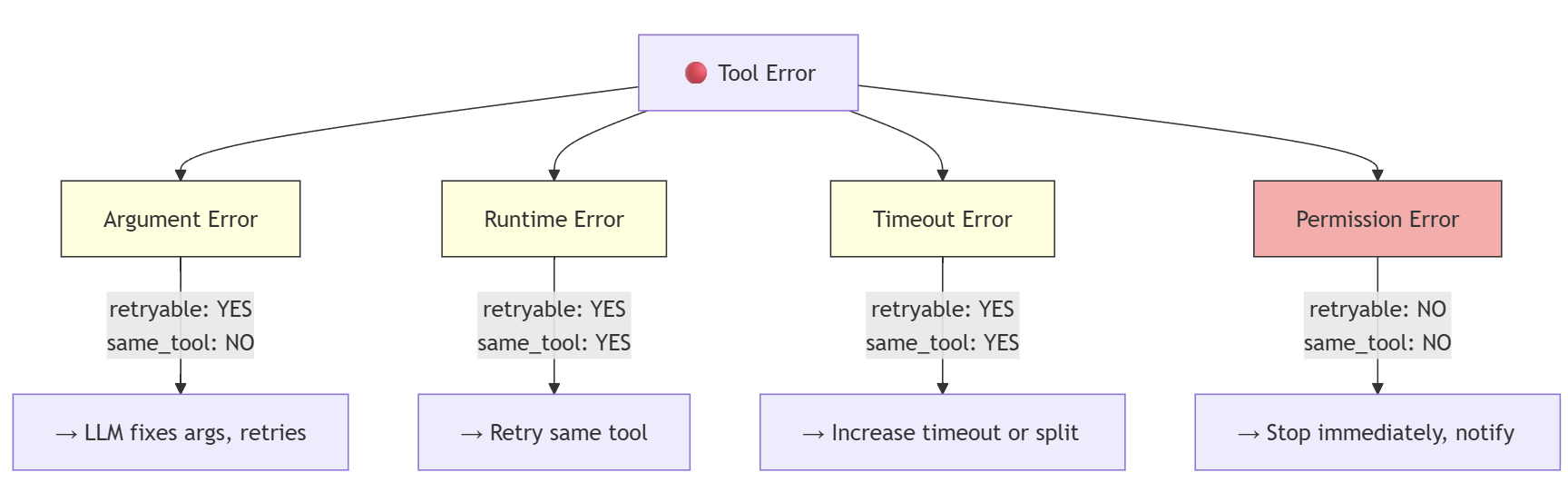

3.4.1 Error Classification

Not all errors should be retried. Classify first, then decide:

The detailed explain of these strategies:

3.4.2 Retry Strategies Comparison

the detailed info:

What is Thundering Herd ?

For example, 1000 visit the server at the same time, and they will meet the rate limit error at the same time because of the overloading of server. Then they all wait for 1s and retry and the server will overload again.

With jitter, the clients retries are spread across ~1.5s instead of all at exactly 1s. So the server won’t overload.

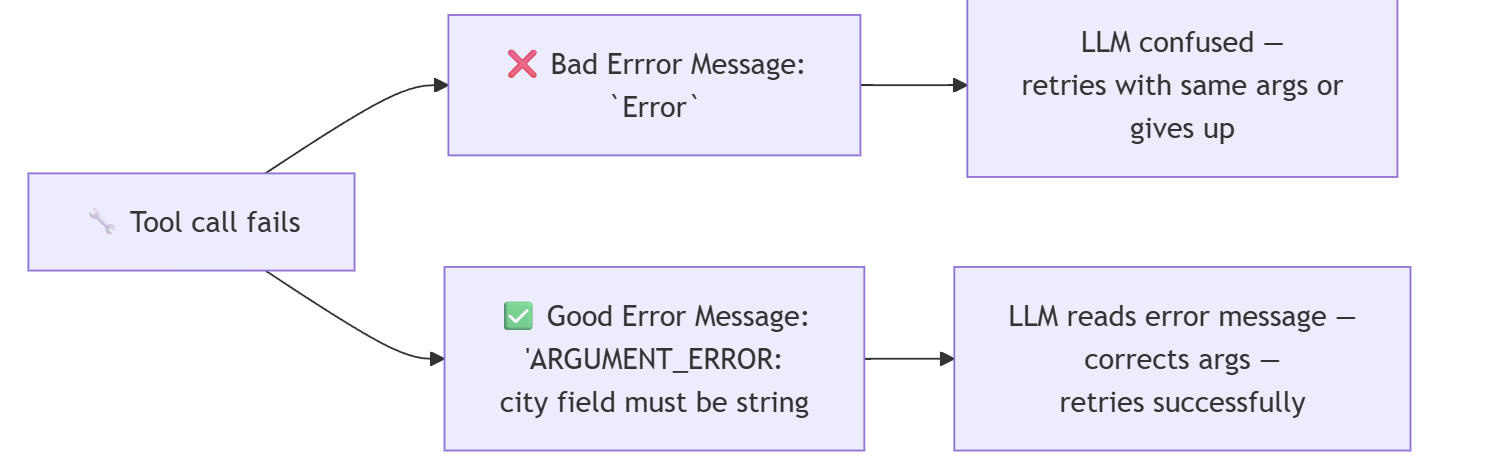

3.4.3 Error as LLM Feedback

In an Agent, tool errors aren’t “exceptions” — they’re “signals.”

Error message quality determines if the LLM can self-correct.

Good error message = tells the LLM three things:

  1. What happened — specific error code + description
  2. Why — arg error, network, or permission
  3. What to do — suggested fix direction

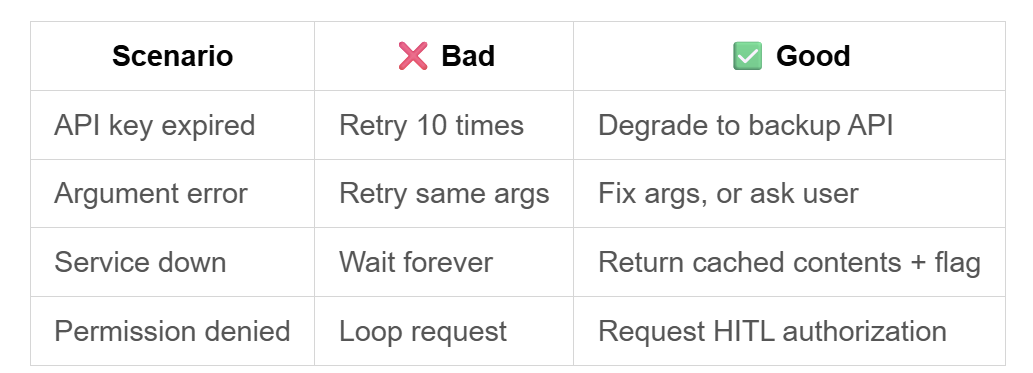

3.4.4 Graceful Degrading

When a tool keeps failing, stubbornly retrying the same call is a bad strategy. We have some other strategies:

3.5 End-to-End Error Handling Flow

1
2
3
4
5
6
7
8
9
10
11
12
13
14
1. Tool call
   ↓
2. Exception raised
   ↓
3. ErrorHandler.classify_error() — Classify
   ↓
4. Retryable?
   ├─ YES → Exponential backoff retry
   │        ├─ Success -> Return result
   │        └─ Max retries exceeded → degrade
   └─ NO → ErrorHandler.format_error_for_llm() → Let LLM Decide
            ├─ Fix args → Retry
            ├─ Switch tool → Degrade
            └─ Give up → Tell User

4. Memory

4.1 Conversation History & Short-term Memory

4.1.1. Memory Taxonomy: A Three-Layer Model

Agent memory systems borrow the “sensory → short-term → long-term” model from cognitive science:

Layer Human Analog Agent Implementation Lifetime Capacity
Sensory What you see right now Raw text of the current request milliseconds very short
Short-term What was just said Conversation history (message list) single session bounded by context window
Long-term Remembering yesterday Vector DB / Knowledge Graph persistent across sessions theoretically unlimited

The reason why Conversation History cannot be omitted is that each round of Agent’s ReAct Loop dependents on the Observation of the previous round.

If the Conversation History is cleared, Agent won’t know what is going on now, what tool have been called and what result have been deducted.

For example:

User asked a question: “What’s the weather in Tokyo ?”

➡ Agent got the result.

➡ User asks again: “How about Beijing?”

➡ If there are no conversation history, Agent won’t know the “How about” refers to “How about the weather”

4.1.2 The Message List: Carrier of Short-term Memory

An Agent’s conversation history is a list of message objects, each with a “role” defining who is speaking:

Role Who Speaks Purpose
system Developer Set Agent behavior rules and constraints
user User User input and queries
assistant LLM LLM’s text responses and tool-call decisions — the Agent manages these but does not generate them
tool Tool execution result Tool return values; must link to an assistant message’s tool_calls

example:

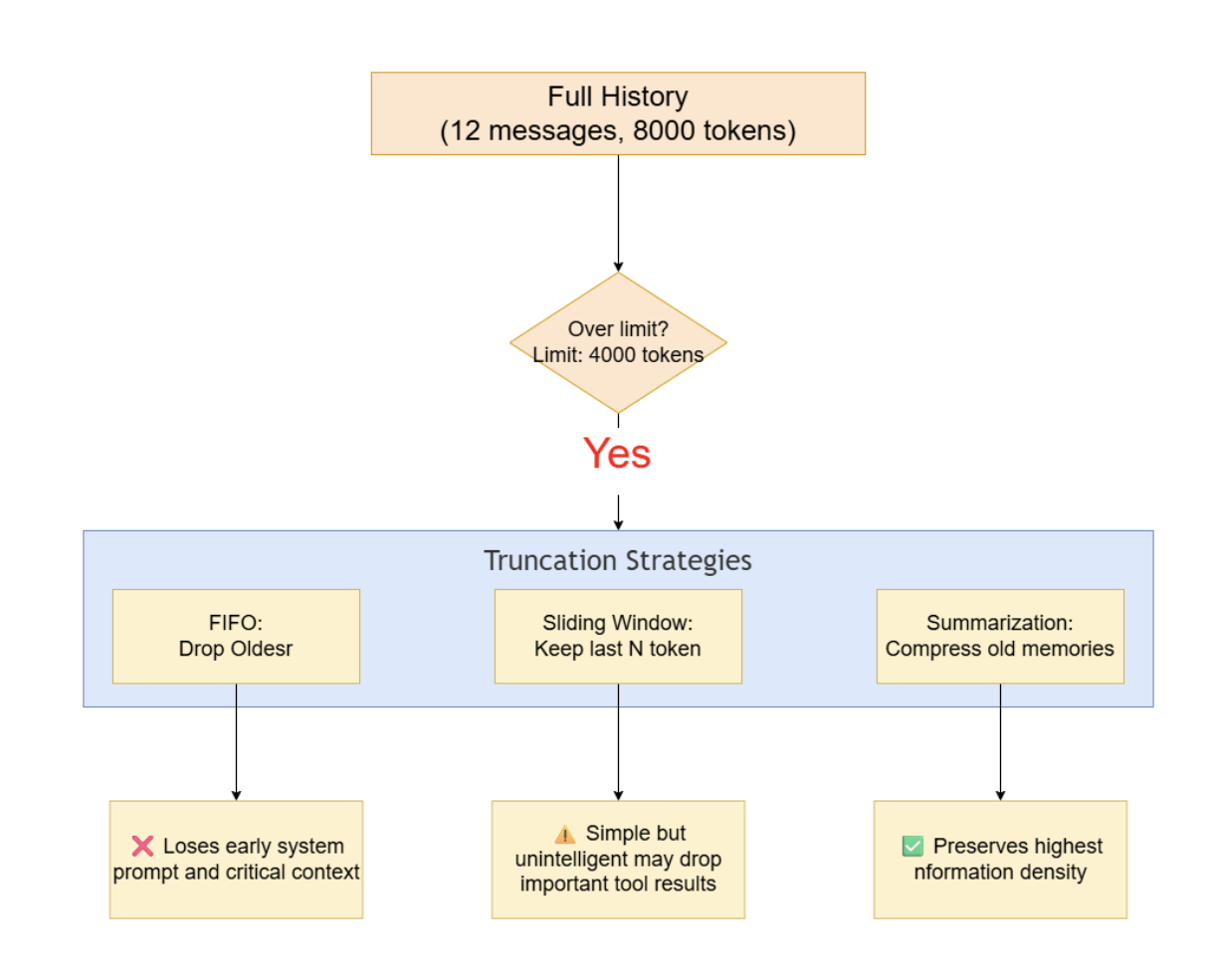

4.1.3 Truncation Strategies: When the Conversation Gets Too Long

Context windows are finite (4K / 8K / 32K / 128K / 200K tokens). History will overflow. What do we cut?

Here are the three basic ways:

Strategy Mechanism Pros Cons Best For
FIFO Drop oldest messages Simplest to implement May delete system prompt Simple chatbots
Sliding Window Keep last N messages Ensures recent context intact Binary — loses ALL old context Short single-task sessions
Summarization Use LLM to compress old messages into a summary Saves space while keeping old information Extra LLM call cost Production standard

The deeper operation of truncation is : Token-Aware Trimming which means regarding token as the basic counting unit instead of message or char.

Unit Logic Problem
Character count Save 8000 chars English ~4 chars/token, Chinese ~1-2 chars/token — not linear at all, the bias is very huge
Message count The token of different message differs A message can be 10 tokens or 1000 tokens
token count Save <= 4000 tokens Match the context window precisely

Correct approach: Use a tokenizer (e.g., tiktoken) for precise counting, with a safety margin (typically 10-20% reserved for generation).

4.1.4 Summary Compression

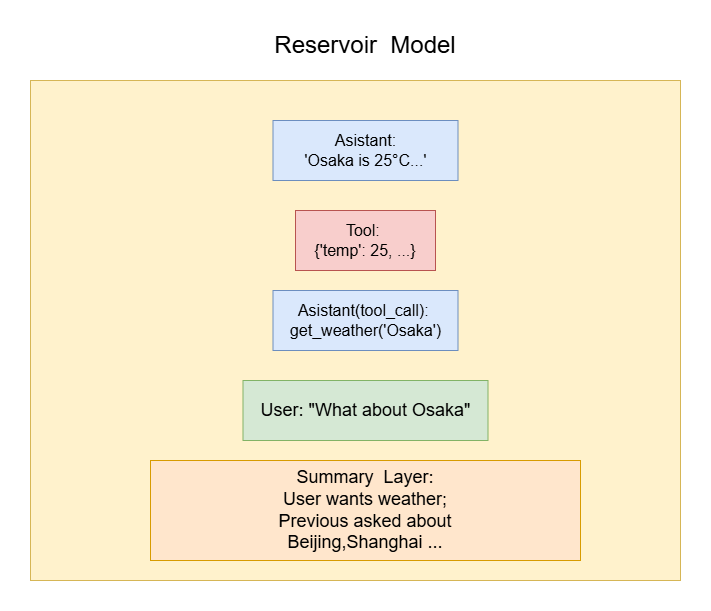

The most practical compression strategy is a “reservoir” model: a summary of old conversation at the bottom, raw recent messages at the top:

Workflow:

  1. Trigger compression when total tokens exceed the threshold.
  2. Send “compressible” old messages to an LLM for summarization.
  3. Replace compressed messages with a single system message containing the summary.
  4. Keep the most recent N messages uncompressed (the “fresh layer”).

Some design choices:

Choice Option A Option B Recommendation
Who compresses? Same LLM Separate lightweight model B is cheaper, A is simpler
When to trigger? Fixed message count Token threshold B — Token threshold
What to compress? All old messages Keep system prompt + last N B — system prompt is sacred
Summary format? Natural language Structured JSON A more natural, B more precise

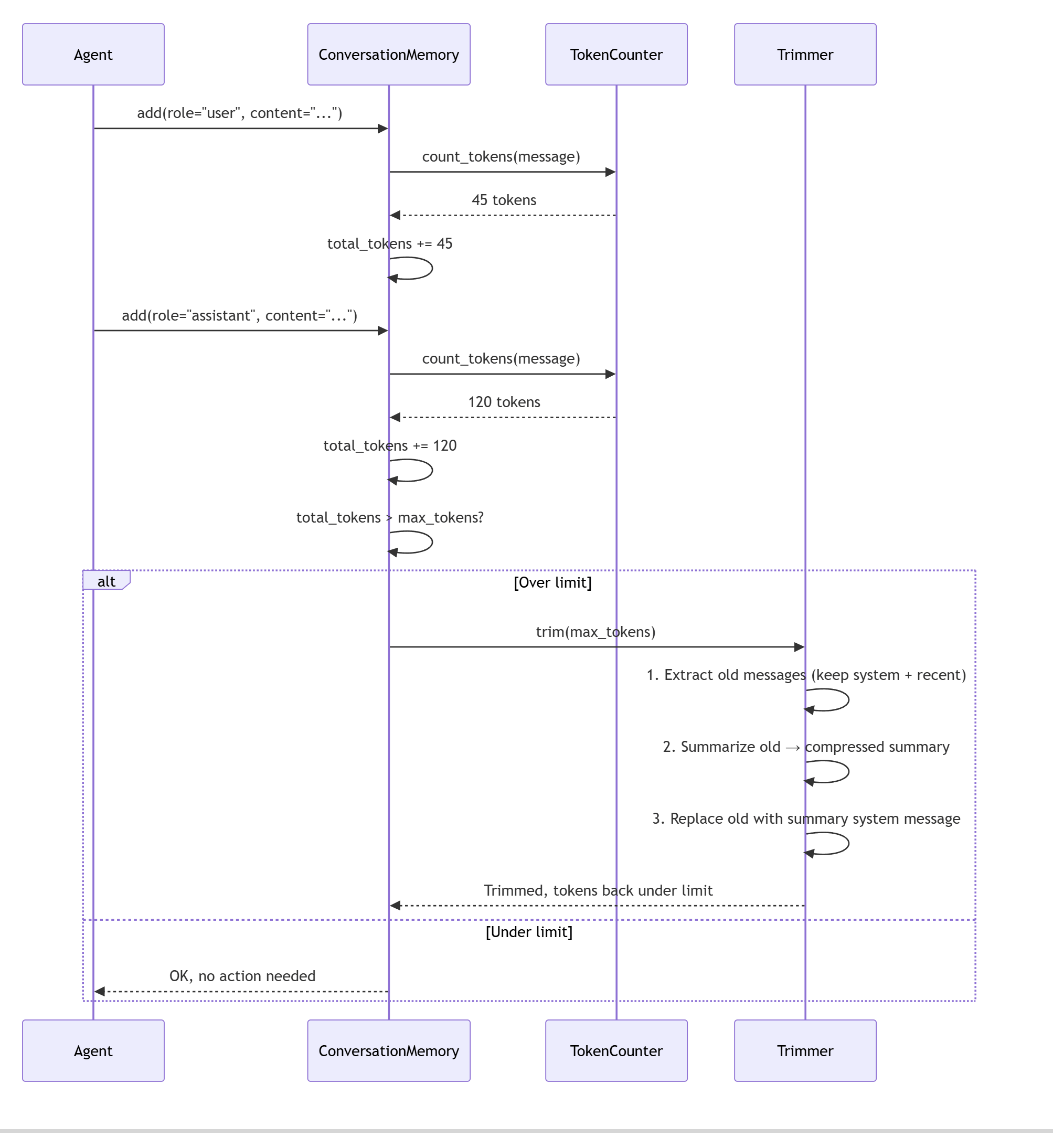

4.1.5 A Complete Workflow from Add to Trim

4.2 Vector Memory & Long-term Storage

4.2.1 Why we need long-term memory?

Short-term memory has a hard boundary: when the session ends, everything is gone.

Image a real scenario:

1
2
3
4
5
6
7
8
9
10
11

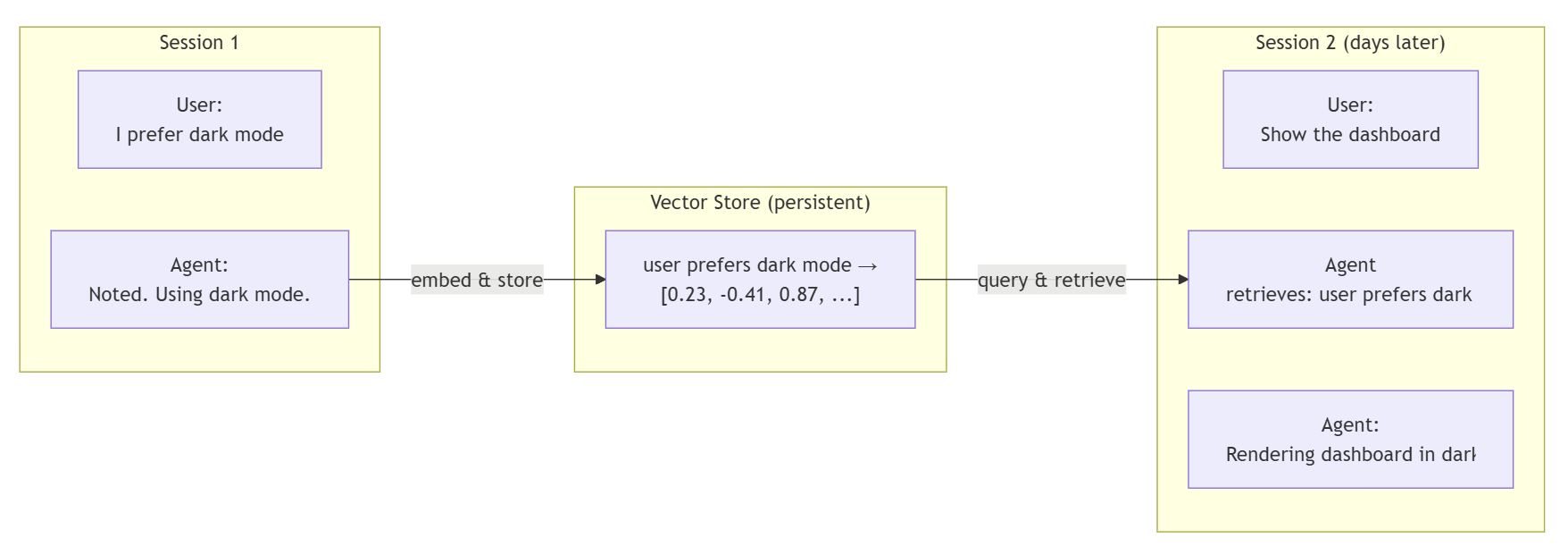

Day 1:
  User: "I prefer Dark Mode"
  Agent: "OK, already shifted to dark mode."
  ——Session Done——

Day 2:
  User: "Open the dashboard"
  Agent: "OK(Open dashboard with white background)"
  User: "I said I prefer Dark Mode yesterday ！"
  Agent: "Sorry, I don't remember."
  ——Session Done——

This is because the short-term memory(conversation history) ends when session is over. When the session ends, the message list will be cleaned.

Long-term memory bridges this gap by storing knowledge in a way that survives sessions. In a nutshell , the agent will extract info from conversation history into long-term history.

4.2.2 Complete Vector Memory Example

The training objective of the embedding model is to ensure that texts with similar semantics are close to each other in the vector space, while texts with unrelated semantics are far away from each other.

Look familiar ? It is exactly like the one in transformer.

The long-term memory storage has two main steps:

  1. LLM: What is worthy to remember in this session? ➡ extract facts
  2. Embedding Module: Embed the facts into vectors to restore.

4.2.2.1 When to extract facts?

Normally, when the conversation is over, send the complete conversation history to LLM, and ask LLM to extract facts the agent should remember.

4.2.2.2 What do LLM extract?

A Concrete Example is as follows:

Suppose a session:

1
2
3
4
5
6
7
8
9
  User: "I live in Tokyo"
  Agent: "I understand, Tokyo. What can I do for you?"
  User: "Check the weather for me."
  Agent: [Call get_weather("Tokyo")] "Tokyo's temperature is now 22°C，sunny"
  User: "By the way, I don't use Fahrenheit, I use Celsius
."
  Agent: "Fine. I will use Celsius later."
  User: "And, the api adress of company is https://api.example.com/v2"
  Agent: "Recorded:

After the session: The Agent will send whole conversation history to LLM. The prompt likes:

1
2
3
4
5
6
7
System: "Extract all information from the following conversation that is worth remembering for the long term."

Output Format："One line per entry, [Type] content"

Available Type："PREFERENCE, FACT, KNOWLEDGE"

Conversation: "User..."

LLM Output:

1
2
3
[PREFERENCE] User lives in Tokyo
[PREFERENCE] User prefers Celsius (not Fahrenheit)
[KNOWLEDGE] Company API endpoint: https://api.example.com/v2

4.2.2.3 What is embedding?

An embedding is a dense vector (e.g., 1536 floats) that represents the semantic meaning of a piece of text. Texts with similar meanings have vectors that are close together in vector space.

1
2
3
"cat"        → [0.12, -0.34, 0.56, 0.78, ...]
"kitten"     → [0.11, -0.33, 0.54, 0.79, ...]   ← close to "cat"
"automobile" → [0.89, 0.21, -0.45, -0.12, ...]  ← far from "cat"

After the 3 items being extracted by LLM, the Embedding component will process them into vectors.

Texts Extracted Embedding Model Vector Database
“User lives in Tokyo” [0.023, -0.041, …] semantic_store
“User prefers Celsius” [0.019, -0.052, …] semantic_store
“Company API: https://…” [0.087, 0.031, …] semantic_store

The positions of these three pieces of memory in the vector space are determined by their respective semantics:

  • The first two pieces, as they both involve “user preferences/personal information”, will be relatively close in the vector space
  • The third piece, which is technical configuration information, will be in a different direction in the vector space

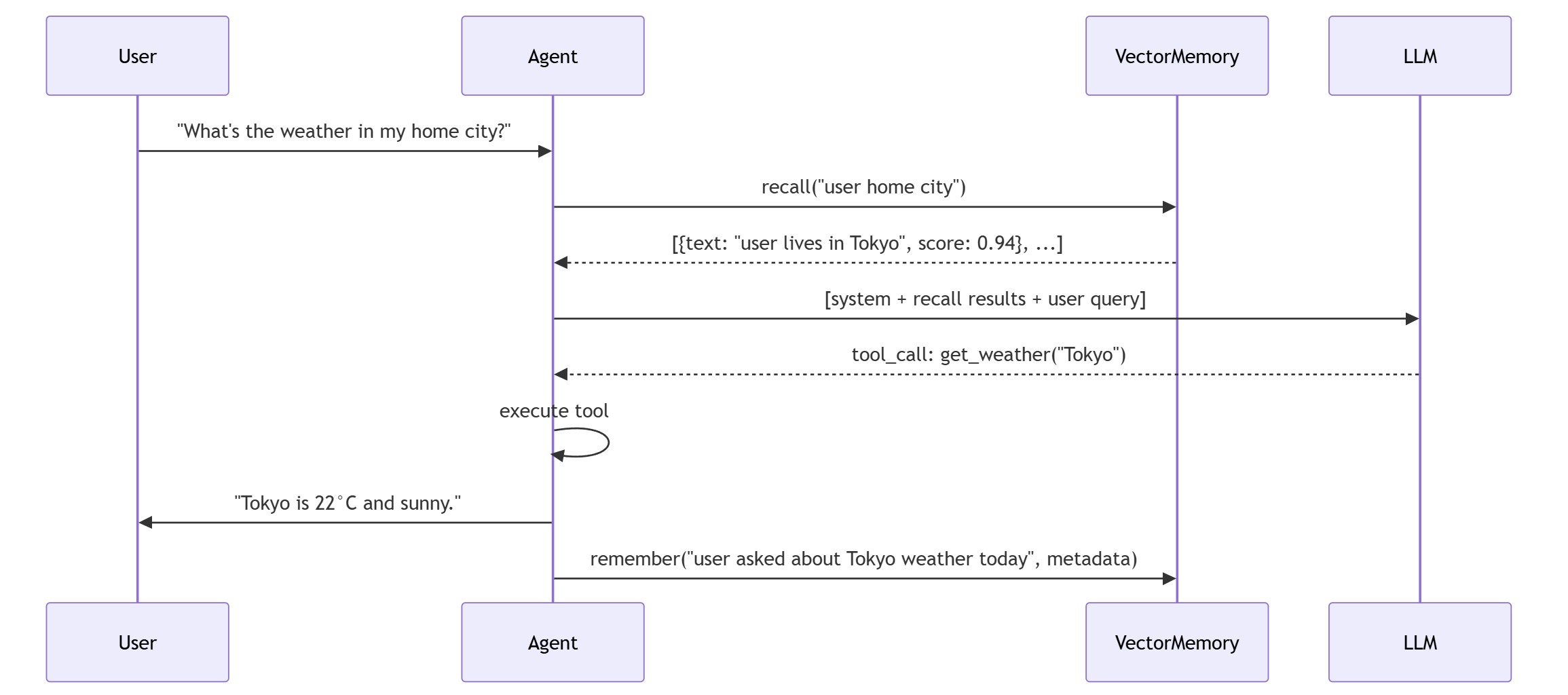

4.2.2.4 How to use the vector info?

Once User ask a question, the agent will search the relative memory in vector database, then return the relative top-k information. Then package the top-k information and original user’s question to the LLM.

For example:

In another session:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
Session 2:
User: "Check the weather for me."

Agent: "Retrieve:"
	step1: "Make a new query(many ways): `user location city home address`"
	step2: "embed `user location city home address` ➡ [0.021, -0.040, ...]"
	step3: "Calculate cosine similarity with all stored vectors:
		query_vec vs "User lives in Tokyo"  → 0.34  highest
		query_vec vs "User prefers Celsius"    → 0.28
		...
		query_vec vs "Company API: https:..." → 0.02 ❌Not related
	"
	Step 4: "return Top-K,
		#1: "User lives in Tokyo" (0.34)
	"

LLM: LLM see the prompt has: "User lives in Tokyo", output: "get_weather("Tokyo")"

Why we use an embedding method instead of keyword search directly?

Approach Query: “canine companions” Result
Keyword (BM25) Documents containing “canine”, “companions” Misses documents using “dog”, “pet”, “best friend”
Semantic (Embedding) vector(“canine companions”) ≈ vector(“dogs as pets”) ✅ Finds semantically related documents regardless of exact words

Apparently, the keyword search method will miss many semantically related info.

4.2.4 Read and Write of Vector Memory

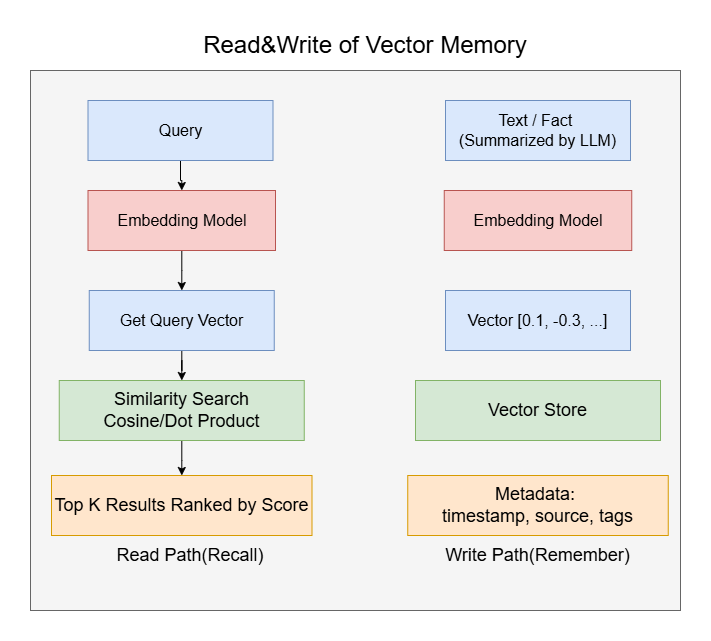

4.2.4.1 Demo of Vector Memory R/W Operation

The core concept of two common operations of Vector Memory are Read and Before. Like the example listed before, they main steps are as follows:

A real item of Vector Memory’s full structure like this:

1
2
3
4
5
6
7
8
9
10
11
12
Vector Memory Entry:
	id: "abc123def4"
	text: "User lives in Tokyo"
	vector: [0.023, -0.041, 0.087, ...]

	metadata: {
		"timestamp": 1750723200,
		"source": "user_stated",
		"tags": ["location", "personal"],
		"session_id": "sess_42",
		"confidence": 0.95
	}

4.2.4.2 CRUD Operations

CRUD, is short for Create, Read, Update and Delete.

Operation Method What Happens
Remember store(text, metadata) Embed text → store vector + metadata + text
Recall query(text, top_k) Embed query → similarity search → return top-K
Update update(id, text) Re-embed → replace old vector
Forget delete(id) Remove vector and metadata

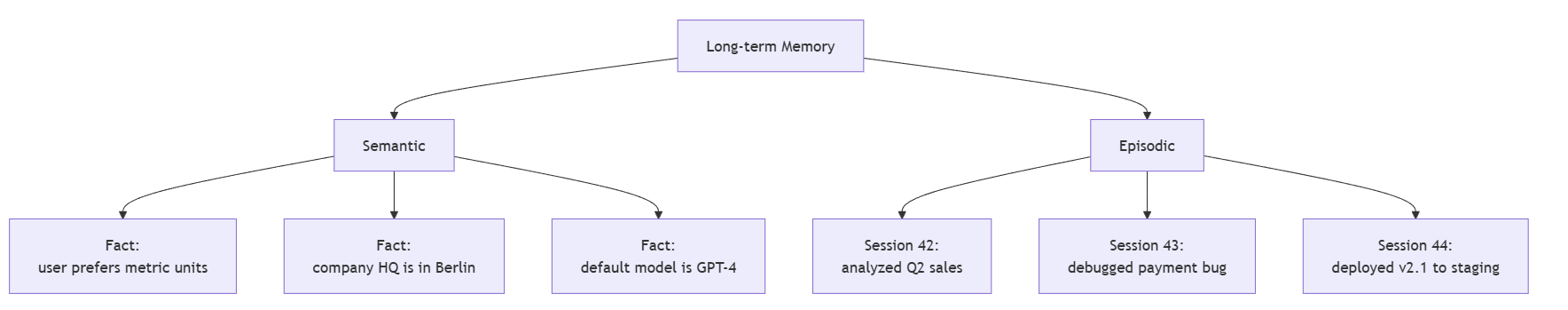

4.2.5 Episodic vs Semantic Memory

4.2.5.1 Features

There are two kinds of Long-Term memory in fact, the episodic one and semantic one.

  1. Semantic Memory:

    Stable, Long-term effective facts and knowledge:

    1
    2
    3
    4
    5
    6
    7
    "User's name is Zhang Wei"
    "User lives in Tokyo"
    "User prefers dark mode"
    "User prefers Celsius"
    "Company API endpoint is https://api.example.com/v2"
    "Default LLM model for this project is GPT-4"
    "Tokyo is the capital of Japan"

    They have the following features:

    • Stored once, used for a long time - Users do not change their names every day
    • Frequently queried - User preferences may be used in almost every conversation
    • Expiration method: Overwritten (when the user says “I now live in Beijing”, the old memory of Tokyo is overwritten), rather than naturally expiring over time

  2. Episodic Memory:

    The operation history of each session, likes log file:

    1
    2
    3
    4
    5
    "2026-07-08: User asked for Tokyo weather, Agent used get_weather tool, 22°C sunny"
    "2026-07-08: User asked to generate Q2 sales report, Agent queried SQL database, took 3 attempts due to timeout"
    "2026-07-09: User reported bug in payment module, Agent searched codebase, found null pointer in PaymentService.java"
    "2026-07-10: User deployed v2.1 to staging, all tests passed"
    "2026-07-10: User asked about vector memory concepts, Agent explained embedding and cosine similarity"

    They have the following features:

    • Continuous appending, with almost no modifications - generated daily.
    • Occasional queries - used only when users ask “How was that bug fixed last time?”
    • Depreciating over time - the details of a weather query from three months ago are now meaningless.
    • Expiration method: automatic cleanup by time (episodic memories older than N days are directly deleted).

4.2.5.2 Why Need This Classification ?

Imagine, if we put all memories in the same vector space. Once the user ask: “How did I fix the previous payment bug?”

The retrieval result:

1
2
3
4
#1 "User prefers dark mode"           ← Semantic，not related
#2 "Company API is xxx"               ← Semantic，not related
#3 "User reported payment bug..."     ← Episodic，needed
#4 "User's name is Zhang Wei"         ← Semantic，not related

The embedding algorithm only cares about the similarity. It doesn’t care about the vector is about fact or expierence.

The user’s preference information (frequent appearance, wide semantic coverage) tends to overshadow episodic memories that occur occasionally.

Separate storage has solved this problem:

1
2
3
4
5
6
User: "How did I fix that payment bug before?"

The agent understands that the question is about "What happened in the past?" → Searching only in episodic_store:
	#1 "The user reported a bug in the payment module, and the agent searched the codebase..." ← Hit
	#2 "The user deployed v2.1 to staging" ← Partially relevant

The agent does not need to search through hundreds of preferences and configurations to find that specific operation record.

Type What It Stores Example Storage Pattern
Semantic Facts, knowledge, preferences “User prefers dark mode”,
“API base URL is https://…”,
“Tokyo is the capital of Japan”		 Single facts with metadata
Episodic Experiences, past interactions “In session #42, the user asked for a sales report and the Agent used the SQL tool to generate it” Conversation summaries linked by session ID

4.2.6 The Retrieval-Augmented Loop

The Agent retrieves before reasoning — injecting relevant long-term context into the LLM’s prompt before the LLM decides what to do. This is the foundation of RAG.

4.3 RAG (Retrieval Augment Generate)

4.3.1 Intro of RAG

What Is RAG in the Agent Context?

RAG (Retrieval-Augmented Generation) is a three-stage pipeline that grounds LLM responses in retrieved external knowledge. In the Agent context, it is the runtime integration of long-term memory into the decision loop.

Why it matters for Agents: An Agent without RAG is an amnesiac — it can only reason with what’s in the conversation. RAG makes the Agent’s memory actionable.

RAG vs. Fine-tuning vs. Long-context:

Approach Mechanism When to use
RAG Retrieve relevant docs, inject into prompt Dynamic knowledge, frequent updates
Fine-tuning Bake knowledge into model weights Static knowledge, domain adaptation
Long-context Stuff everything into the prompt Small corpus, one-off analysis

Agents typically use RAG + conversation history: the history handles the immediate reasoning chain, and RAG brings in cross-session context.

4.3.2 The Full Pipeline: Step by Step

4.3.3 Retrieve Stage

4.3.3.1 Intro

The retrieval stage takes a user query and returns a ranked list of relevant documents/memories:

1
2
3
4
5
query: "Q2 sales by region"
  → embed → [0.12, -0.34, ...]
  → cosine similarity against all stored vectors
  → sort by score desc
  → return top-K

Retrieval Strategies:

Strategy Description Best for
Top-K Return K highest-scoring results General purpose, predictable context size
Threshold Return all results with score > T Unknown result count, precision-driven
Top-K + Threshold Top-K, but drop any below threshold Prevents irrelevant noise in top-K
Hybrid Combine keyword (BM25) + semantic scores When exact term matching matters

4.3.3.2 Rewrite Query

Raw user input is often a bad retrieval query. An Agent should rewrite the query before searching:

1
2
User Says: "how did we do last quarter?"
Rewritten: "Q2 2026 financial performance sales revenue summary"

Three patterns:

  1. Direct — use the user input as-is (fast, but noisy)
  2. LLM Rewrite — ask the LLM to expand/refine the query (adds latency, improves recall)
  3. HyDE (Hypothetical Document Embedding) — ask the LLM to generate a fake answer, embed that, and search with it (best for abstract queries)

4.3.3.3 Re-Ranking

The initial vector search is fast but coarse.

A re-ranker (cross-encoder) reads the query and each candidate document together, scoring relevance more accurately — at the cost of being slower.

When to re-rank:

  • When precision matters more than latency
  • When the initial search returns many moderately-relevant results
  • When you have a cross-encoder model available

4.3.4 Augment Stage

4.3.4.1 Augmentation Pattern

1
2
3
4
5
6
7
8
9
10
11
12
13
14
# BEFORE augmentation (no RAG)
prompt = f"System: You are a helpful assistant.\nUser: {query}"

# AFTER augmentation (with RAG)
prompt = f"""System: You are a helpful assistant.
Relevant context:
---
{doc1}
{doc2}
{doc3}
---
Use the context above to answer. If the context doesn't help, say so.

User: {query}"""

The retrieved documents are *injected into the system prompt or a dedicated context block*, before the user query.

4.3.4.2 Context Window Budgeting

You can’t stuff everything. You must budget the context window:

Section Approximate budget Content
System prompt 10-15% Instructions, role, safety rules
Retrieved context 30-40% Documents from RAG
Conversation history 40-50% Recent messages
Generation reserve 10-15% Room for the LLM to actually generate

4.3.4.3 Source Citation

Always tell the LLM where each piece comes from:

1
2
3
4
5
Context:
[1] (from: user_preferences, date: 2026-07-01) User prefers dark mode...
[2] (from: q2_report, date: 2026-07-05) Q2 revenue: $2.3M, up 15%...

Cite sources when using information: "According to [1]..."

This reduces hallucination and gives the user a path to verify.

4.3.5 Generate Stage

4.3.5.1 How Context Reduces Hallucination

Without RAG With RAG
“Q2 revenue was $2.5M” (made up) “According to the Q2 report, revenue was $2.3M” (grounded)
“I don’t know your preferences” “Based on your stored preferences, you use dark mode”
Generic response Personalized, knowledgeable response

The key insight: *hallucination happens in the gap between the LLM’s training data and the specific facts it needs. RAG closes that gap.*

4.3.5.2 Instruction Design for Grounded Generation

1
2
3
4
5
Instructions for grounded generation:
1. Answer ONLY from the provided context when possible
2. If the context is insufficient, SAY SO explicitly
3. Cite sources using [N] notation
4. Do NOT fabricate details not present in the context

4.3.6 The Memory Write-back Loop

RAG isn’t just read — it’s read + write. After generating, the Agent should store new knowledge:

Write-back triggers:

  1. Explicit user correction: “Actually, I prefer X not Y”
  2. New information: “By the way, my team uses Rust now”
  3. Task completion: “Report generated successfully at /reports/q2.pd

4.3.7 Practical Considerations

Latency Budget:

Stage Typical Latency Notes
Embed query 10-50ms One API call to embedding model
Vector search 1-10ms In-memory or local DB
Re-rank 50-200ms N cross-encoder calls (N = candidates)
LLM generation 500-5000ms Dominates total latency
Total RAG overhead 60-260ms Acceptable for most use cases

Chunking Strategies:

Long documents must be split into chunks before embedding:

Strategy How it works Best for
Fixed-size Split every N characters with overlap Simple, predictable
Semantic Split at paragraph/section boundaries Natural language docs
Recursive Try large chunks first, split smaller recursively Mixed content
Agentic Let the LLM decide where to split High-value, small corpus

Relevance-Quality Tradeoffs:

1
2
Precision ↑  →  Fewer, more relevant results  →  Risk of missing context
Recall    ↑  →  More results, everything captured  →  Risk of noise and wasted context

*The rule of thumb:* tune for precision when the LLM can handle missing context gracefully (“I don’t know”). Tune for recall when missing context means wrong answers.

Evaluation:

  • Retrieval quality: precision@K, recall@K, MRR (Mean Reciprocal Rank)
  • Generation quality: faithfulness (does the answer match the context?), answer relevance
  • End-to-end: does the user get the right answer?

4.4 Context Window Optimization

4.4.1 Intro

Every token in the context window has a cost, both financial and cognitive:

The “lost in the middle” problem: LLMs pay most attention to the beginning and end of the context. Information in the middle gets ignored.

There are many ways try to solve the problem:

Naive approach Optimized approach
“Keep everything, let the LLM figure it out” “Curate what goes in, maximize information density”
Truncate by recency (last N messages) Truncate by relevance + importance + recency
One-size-fits-all context Dynamic allocation based on task
Verbose tool outputs stored as-is Summarized/crunched tool outputs

4.4.2 Structured Context Assembly

4.4.2.1 The Priority Ladder of Context

Not all context is equal. Assign every piece a priority:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
Priority 1 (ALWAYS KEEP):
  ├── System prompt (role, safety rules, tool instructions)
  ├── The current user query
  └── Active tool call + its result

Priority 2 (KEEP IF SPACE):
  ├── Recent conversation turns (last 3-5 exchanges)
  ├── RAG-retrieved documents (top-3 by relevance)
  └── Critical memory items (user identity, ongoing task)

Priority 3 (SUMMARIZE BEFORE DROPPING):
  ├── Older conversation turns
  └── Past tool call results

Priority 4 (DROP FIRST):
  ├── Verbose raw outputs already summarized
  ├── Redundant system reminders
  └── Failed/retracted tool calls

4.4.2.2 Assembly Algorithm

A exemplary algorithm is as follows:

4.4.3 Summarization Context

Progressive summarization is an important rule.

Don’t just summarize once. Summarize in layers, each more compressed:

1
2
3
4
5
6
7
Layer 0: Raw conversation (10,000 tokens)
    ↓ compress to 20%
Layer 1: Detailed summary (2,000 tokens) — preserves key facts and decisions
    ↓ compress to 30%
Layer 2: Session digest (600 tokens) — outcomes, unresolved items
    ↓ compress to 20%
Layer 3: One-line session title (120 tokens) — "User requested Q2 report, deployed v2.3 to staging"

When to show which layer:

  • Same session → Layer 0 or Layer 1
  • Same day, different session → Layer 1 or Layer 2
  • Weeks later → Layer 2 or Layer 3 (via vector memory recall)

What makes a good summary?

A good summary preserves:

  1. Decisions made — “Agreed to use PostgreSQL for the new service”
  2. Facts learned — “User’s team has 5 engineers”
  3. Unresolved items — “Still need to decide on monitoring tool”
  4. Task state — “Deploy to staging: DONE. Deploy to production: PENDING”

A bad summary just says “They discussed databases and deployments.”

4.4.4 Tool Result Compression

Raw tool outputs are often the biggest context hogs. Process them:

1
2
3
4
5
6
7
8
9
10
11
12
13
# ❌ Raw: 2,500 tokens
tool_result = """{
  "files": [
    {"name": "main.py", "size": 1024, "modified": "2026-07-14", "permissions": "rw-r--r--",
     "owner": "alice", "group": "eng", ...},
    ... 200 more files
  ]
}"""

# ✅ Compressed: 200 tokens
compressed = """[ls result] 201 files in /src. Key files:
main.py (1KB), config.py (512B), utils.py (2KB).
200 other files omitted (use grep for specifics)."""

The pattern: keep what’s actionable, compress what’s informational.

  • If the Agent needs to parse the output → keep raw
  • If the LLM just needs to know “it worked” or “found 15 matches” → compress

4.4.5 Relevance-Based Retention

The sliding window algorithm will keep the latest-N messages, but it’s not the best algorithm because many useful info will be dropped by time.

We should sort the messages by relevance. Then in the sliding window, drop the least relevant message. This is called Relevance-Based retention.

But only the relevance is not enough for ranking. Some message has less relevance but more importance. We include a comprehensive score to evaluate the degree of “if message should be kept.”

1
2
3
4
5
6
keep_score = (
    recency_weight * 0.3 +       # How recent is it?
    relevance_weight * 0.3 +     # How relevant to the current query?
    importance_weight * 0.25 +   # Does it contain a decision/fact/action?
    role_weight * 0.15           # Tool results > user messages > assistant chatter
)

Importance signals (what makes a message “important”):

  • Contains a user preference (“I prefer…”, “I use…”)
  • Contains a decision (“Let’s go with…”, “We’ll use…”)
  • Contains a tool call or its result
  • Contains an error or correction
  • Contains a number, date, or named entity

When the context window is full and a new message arrives:

  1. Score every message in the window
  2. Evict the lowest-scoring message
  3. If it contains a “high importance” signal → summarize it instead of dropping it
  4. Repeat until enough space is freed

4.4.6 Cache-Aware Context Design

4.4.6.1 How LLM Prompt Caching Works

Most LLM APIs cache the prefix of the prompt.

If you send the same system prompt + first N messages, those tokens are cached and you don’t pay for them on subsequent calls.

Once the token at a certain position changes, the cache of all subsequent content becomes invalid.

1
2
3
Request 1: [System] [Msg1] [Msg2] [Msg3] ← full price
Request 2: [System] [Msg1] [Msg2] [Msg4] ← System+Msg1+Msg2 cached, only pay for Msg4
Request 3: [System] [Msg1] [Msg5] [Msg6] ← System+Msg1 cached, pay for Msg5+Msg6

4.4.6.2 Design for Cacheability

So we should take the rule into consideration to organize the agent’s context:

1
2
3
4
5
6
7
8
9
10
11
12
13
# ❌ Cache-unfriendly: dynamic content at the FRONT
messages = [
    {"role": "system", "content": f"Today is {datetime.now()}. You are..."},  # Changes every call
    {"role": "system", "content": "Static instructions..."},
    ...
]

# ✅ Cache-friendly: static first, dynamic in user message
messages = [
    {"role": "system", "content": "You are a helpful assistant. [static instructions...]"},
    # Dynamic date goes in the user message, NOT the system prompt
    {"role": "user", "content": f"[Today is {datetime.now()}] User query: ..."},
]

Cache-friendly rules:

  1. System prompt: static content ONLY — no dates, no counters, no session IDs
  2. Retrieved context: put at the END of system or beginning of a dedicated user message
  3. Conversation history: newest messages last (appending preserves the prefix cache)
  4. Don’t insert messages in the middle of the array

4.4.7 Token-Efficient Formatting

The limit of context window and token price make it important to save token. We should exploit token efficiently. The rule is Less token, same info.

e.g.

1
2
❌ Verbose:  "The user has indicated that they prefer to use dark mode for all of their applications."
✅ Compact:  "user_pref: dark_mode=true"

And we have many ways to compress output info of tools:

Format Example Use when
Key-value city=Tokyo, units=metric, temp=22C Simple structured results
Table-like file | size | modified\nmain.py | 1KB | today Lists of items
Diff +added line\n-removed line Changes, updates
JSON-minified {"status":"ok","count":42} When the LLM needs to parse it

There are some common filler that wastes tokens: - Politeness padding: “I hope this message finds you well…” - Redundant acknowledgments: “Thank you for your query. I understand you want to…” - Repeated context: the same instruction appearing in system prompt AND user message

4.4.8 Dynamic Context Allocation

A “check the weather” query doesn’t need the same context as “analyze this 50-page report”, so we should allocate context window dynamically:

Task complexity Context strategy
Simple (weather, time, quick fact) Minimal: system + query + 1-2 relevant memories
Medium (code review, data analysis) Standard: system + recent history + RAG top-5
Complex (architecture design, debugging) Maximum: full history + RAG top-10 + summarized older sessions

This is an example:

1
2
3
4
5
6
7
8
9
def allocate_budget(query: str, available_tokens: int) -> ContextBudget:
    complexity = estimate_complexity(query)  # LLM call or heuristic

    if complexity == "simple":
        return ContextBudget(system=0.15, context=0.10, history=0.20, reserve=0.55)
    elif complexity == "medium":
        return ContextBudget(system=0.12, context=0.35, history=0.40, reserve=0.13)
    else:  # complex
        return ContextBudget(system=0.10, context=0.50, history=0.35, reserve=0.05)

*Why more reserve for simple tasks?* Because the LLM answer will be short — it doesn’t need elaborate generation. The reserve mostly goes unused.

4.4.9 Optimization Checklist

Before sending to the LLM, ask:

5. Plan

5.1 Plan & Execute

5.1.1 Intro

The characteristic of ReAct pattern is “Take one step at a time” which causes many problems:

  1. No Global Plan

    Sometime, it will stuck into local problems.

  2. Global Drift

    If there no plan, the step will drift after 3~5 steps. Especially in a complex task.

  3. Accumulating Errors & No Backtracking

    Step 3 goes wrong ➡ Step 4 based on Step 3 ➡… ➡ Step 7 finds it is on a wrong way ➡ No mechanism for ReAct to go back to Step 2.

  4. Context Bloat

    Every step, agent send “thought-action-observation” history into context which makes the context window bloat fast.

  5. …

In a nutshell:

"local optimization, global blindness."

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
User: "Plan a trip to Tokyo: find flights, book hotel, create itinerary"

ReAct (interleaved):
  Think: I need to find flights. → search_flights("Tokyo")
  Think: Got flights. Now hotel. → search_hotels("Tokyo")
  Think: Hmm, I should've checked the budget first...
  → Already wasted 2 tool calls without understanding constraints.

Plan-and-Execute:
  Plan:
    1. Ask user for budget and dates
    2. Search flights within budget
    3. Search hotels near flight arrival area
    4. Create itinerary matching hotel location
  Execute: step 1 → step 2 → ... (each step informs the next)

The plan acts as a global constraint — a roadmap that prevents the Agent from wandering off.

5.1.2 Architecture

P&E is not a substitute of ReAct, in fact, it’s a shell of ReAct.

The architecture of P&E and be divided into 3 pieces:

Plan ➡ Execute ➡ Replan(If Execution Fails)

There are three main components of this structure:

Component Responsibility When it runs
Planner Decompose the user’s goal into an ordered list of subtasks Once, at the start
Executor Execute each subtask with tools, collect results For every task in the list
Replanner Adjust the remaining plan when a step fails or reveals new info On execution failure or unexpected results

5.1.3 Plan Representation

A plan is more than a bullet list. A good plan encodes:

1
2
3
4
5
6
@dataclass
class Plan:
    goal: str                          # The original user objective
    steps: list[Step]                  # Ordered list of steps
    dependencies: dict[str, list[str]] # step_id → [depends_on_step_ids]
    context: dict                      # Shared knowledge across steps

Each step:

1
2
3
4
5
6
7
8
@dataclass
class Step:
    id: str                           # Unique identifier
    description: str                  # What to do (LLM-readable)
    tool_hint: str | None             # Suggested tool (optional)
    expected_output: str              # What success looks like
    status: StepStatus                # pending | running | done | failed | skipped
    result: Any | None                # Output from execution

Example plan for “Deploy a new feature to staging”:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
Plan = {
  "goal": "Deploy the dark-mode feature to staging",
  "steps": [
    {
      "id": "1",
      "description": "Run the test suite to verify the feature branch",
      "tool_hint": "run_tests",
      "expected_output": "All tests pass or a list of failures",
      "depends_on": []
    },
    {
      "id": "2",
      "description": "Build the Docker image for the feature branch",
      "tool_hint": "build_image",
      "expected_output": "Image hash or build error",
      "depends_on": ["1"]
    },
    {
      "id": "3",
      "description": "Push the image to the staging registry",
      "tool_hint": "push_image",
      "expected_output": "Registry URL or push error",
      "depends_on": ["2"]
    },
    {
      "id": "4",
      "description": "Update the staging deployment to use the new image",
      "tool_hint": "deploy",
      "expected_output": "Deployment status and new version number",
      "depends_on": ["3"]
    },
    {
      "id": "5",
      "description": "Run smoke tests against staging",
      "tool_hint": "smoke_test",
      "expected_output": "Smoke test results (pass/fail per endpoint)",
      "depends_on": ["4"]
    }
  ]
}

5.1.4 Planner Desgin

A good plan has these properties:

  1. Complete — covers all aspects of the user’s goal
  2. Ordered — steps are sequenced correctly (dependencies first)
  3. Granular — each step is a single, executable action
  4. Verifiable — each step has a clear success criterion
  5. Adaptable — steps can be reordered or replaced if needed

The planner's prompt must enforce structure:

1
2
3
4
5
6
7
8
9
10
11
12
13
You are a task planner. Given a user's goal, generate a step-by-step plan.

Rules:
1. Each step must be a SINGLE actionable item (one tool call or one decision)
2. Order steps by dependency — a step that depends on another goes AFTER it
3. For each step, specify:
   - description: what to do
   - tool_hint: which tool might be used (if known)
   - expected_output: what success looks like
4. If the goal is ambiguous, add a "clarify" step first
5. Maximum 10 steps — if the task needs more, group subtasks

Output as a JSON array of steps.

When you force the LLM to write the full plan before acting, several things surface:

  • Missing information: “Step 1: ask for budget” — the LLM realizes it needs input it doesn’t have
  • Dependency awareness: “I can’t deploy before tests pass” — structural, not reactive
  • Scope estimation: A 20-step plan for “check the weather” signals the LLM misunderstood

This is the planning dividend: bugs caught at plan time are free. Bugs caught at execution time cost tool calls.

5.1.5 Executor Design

Each step receives the results of all previous steps as context:

1
2
3
4
5
6
7
8
9
10
11
12
13
def execute_step(step: Step, previous_results: dict[str, Any]) -> StepResult:
    context = format_context(previous_results)
    prompt = f"""
    Execute this step: {step.description}
    Expected output: {step.expected_output}

    Context from previous steps:
    {context}

    Use available tools to complete this step.
    """
    result = agent.run(prompt)  # Full ReAct loop for this single step
    return StepResult(step_id=step.id, success=True, output=result)

In fact, the ReAct is within the P&E loop.

Plan-and-Execute doesn’t replace ReAct — it wraps it. The outer loop is P&E (sequential steps), but each step internally uses ReAct (think→act→observe) to accomplish its specific sub-goal.

1
2
3
P&E (outer loop):  Step 1 → Step 2 → Step 3 → Step 4
                     │         │         │         │
ReAct (inner loop):  T→A→O     T→A→O     T→A→O     T→A→O

This is the key insight: P&E provides structure; ReAct provides flexibility within that structure.

5.1.6 Replanning

A step can fail for many reasons:

Failure type Example Response
Tool error API returns 500 Retry step or use alternative tool
Unexpected result Search returned 0 results Broaden search or replan
New information User says “actually, my budget is $200” Replan remaining steps with new constraint
Dependency broken Step 3 failed, so steps 4-8 are now invalid Truncate and replan from step 3

We have a replan trigger:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
def should_replan(failed_step: Step, remaining_steps: list[Step]) -> bool:
    """Determine if failure requires replanning vs just retrying."""
    # If this step has dependents, its failure cascades
    has_dependents = any(failed_step.id in s.depends_on for s in remaining_steps)
    if has_dependents:
        return True  # Must replan — downstream steps assume this succeeded

    # If the error is recoverable (e.g., timeout), just retry
    if failed_step.error_type in ("timeout", "rate_limit"):
        return False

    # If the step itself suggests "try a different approach"
    if "not found" in str(failed_step.result) or "no results" in str(failed_step.result):
        return True

    return False

Replanning Prompt:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
The following step FAILED:
  Step {id}: {description}
  Error: {error}

Remaining steps that depend on this step:
  {dependent_steps}

Original goal: {goal}

Generate a NEW plan for the remaining work. You can:
1. Replace the failed step with an alternative approach
2. Reorder remaining steps
3. Add new steps to recover
4. Remove steps that are now irrelevant

Output as a JSON array of revised steps.

5.1.7 Complete Work Flow

5.2 Task Decomposition

5.2.1 Intro

You can’t eat an elephant in one bite. Task decomposition is the knife that cuts it into pieces.

We’ve learned that we should cut the plan into many tasks in order. But we didn’t discuss how to do this.

That’s task decomposition — the algorithm (or prompt strategy) that takes a complex goal and breaks it into executable subtasks.

Task decomposition is the process of breaking a complex, high-level goal into smaller, well-defined subtasks that an Agent can execute with its available tools.

Because of the complexity of tasks’ dependencies, the tasks’ performing order is always not linear.

e.g.

1
Query: "Analyze customer churn and recommend retention actions"

A task graph encodes:

  • What needs to happen (tasks)
  • In what order (dependencies → edges)
  • What can run together (independent tasks → parallel)

5.2.2 Four Fundamental Decomposition Strategies

There are four fundamental decomposition strategies:

5.2.2.1 Linear (Sequential) Decomposition

The simplest strategy — break the goal into a sequence of steps where each depends on the previous.

1
2
3
4
5
6
Goal: "Deploy a feature"
  → Step 1: Run tests
  → Step 2: Build image          (depends on 1)
  → Step 3: Push to registry     (depends on 2)
  → Step 4: Deploy               (depends on 3)
  → Step 5: Smoke test           (depends on 4)

When to use: The task has a clear pipeline/waterfall structure. Each step’s output is the next step’s input.

Weakness: No parallelism. One slow step blocks everything.

5.2.2.2 Hierarchical (Tree) Decomposition

Recursively break tasks into subtasks until each leaf is executable.

1
2
3
4
5
6
7
8
9
Goal: "Build a dashboard"
  ├── Task: Build backend API
  │   ├── Subtask: Design database schema
  │   ├── Subtask: Implement /api/metrics endpoint
  │   └── Subtask: Add authentication
  └── Task: Build frontend
      ├── Subtask: Create chart components
      ├── Subtask: Build filter controls
      └── Subtask: Wire up API calls

When to use: The goal has natural high-level groupings. Sub-goals are independent enough to decompose separately.

Weakness: Tree structure misses cross-branch dependencies (e.g., frontend needs API contract from backend).

5.2.2.3 Dependency-Aware (DAG) Decomposition

The most powerful strategy. Tasks form a Directed Acyclic Graph where edges represent “B needs A’s output.”

1
2
3
4
5
6
7
tasks = [
    Task("A", "Extract data",           depends_on=[]),
    Task("B", "Clean data",             depends_on=["A"]),
    Task("C", "Train model",            depends_on=["B"]),
    Task("D", "Generate visualizations", depends_on=["B"]),  # Independent of C!
    Task("E", "Write report",           depends_on=["C", "D"]),
]

This is what we used in 5.1’s plan structure. The executor can run C and D in parallel after B completes:

1
2
A → B → ┬ → C ─ ┬ → E
        └ → D ─ ┘

When to use: Almost always. This is the default strategy for production Agents.

Key advantage: Maximum parallelism + explicit dependency tracking.

5.2.2.4 LLM-Driven Decomposition

Simply ask the LLM to decompose the task, with a structured output format.

1
2
3
4
5
6
7
8
9
10
11
12
You are a task decomposer. Given a complex goal, break it into subtasks.

Rules:
1. Each subtask must be executable with a single tool or a focused LLM call
2. Identify dependencies between tasks (what must complete first?)
3. Mark tasks that can run in parallel
4. For each task, specify:
   - What tool(s) to use
   - What input it needs (and where that input comes from)
   - What success looks like

Output as a JSON task graph.

This is simple to implement but quality depends entirely on the prompt + the LLM’s reasoning ability.

5.2.3 The Granularity Problem

To decompose a goal into subtasks, there is an important problem:

How Fine-Grained Should Tasks Be?

1
2
3
4
5
6
7
8
9
10
11
Too coarse ("Analyze the data")
  → Task is still too complex for one step
  → LLM gets lost, misses things, hallucinates

Too fine ("Open the CSV file")
  → 50 trivial tasks, most just overhead
  → Planning cost exceeds execution benefit

Just right ("Calculate churn rate per customer segment")
  → One focused, verifiable action
  → Clear input (the data), clear output (churn rates by segment)

A task is at the right level of granularity when it passes three tests:

  1. Single Tool Test: Can this task be accomplished with ONE tool call or ONE focused reasoning step?
  2. Verifiable Output Test: Is there a clear, checkable success criterion? (“Churn rates calculated” is checkable. “Analyze data” is not.)
  3. Context Fit Test: Does the task’s context (inputs + instructions) fit comfortably in the LLM’s working memory? Rule of thumb: if describing what the task needs takes more than 3-4 sentences, it’s probably too big.

The Decomposition Termination Rule:

1
2
3
4
5
6
7
Decompose(task):
    if passes_granularity_tests(task):
        return task  // Done — this is executable
    else:
        subtasks = break_down(task)  // LLM or heuristic
        for each subtask:
            Decompose(subtask)       // Recurse

5.2.4 Dependency Detection

Not all “B needs A” relationships are the same, there many types of dependencies:

Dependency Type Example Detection
Data dependency Task C needs the CSV file that Task B produces Output of A = input of B
Resource dependency Two tasks both need the GPU — can’t run simultaneously Resource constraint
Logical dependency “Deploy” doesn’t make sense before “Build” Domain knowledge
Conditional dependency Task B only runs if Task A finds anomalies Branching logic

Data dependencies are the most common and the easiest to detect automatically. Resource and logical dependencies usually require domain knowledge or LLM reasoning.

How to detect dependencies?

  1. Ask LLM

    1
    2
    3
    4
    5
    For each pair of tasks (A, B), ask:
    "Does Task B need the output of Task A to execute?
     If yes: data dependency (A → B)
     If B doesn't make logical sense before A: logical dependency (A → B)
     If they're independent: no edge"

    This is O(n²) but works well for reasonable task counts (n ≤ 20).

  2. Data-flow analysis

    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    def detect_dependencies(tasks: list[Task]) -> dict[str, list[str]]:
        """Detect dependencies by analyzing input/output descriptions."""
        deps = {}
        for task_b in tasks:
            deps[task_b.id] = []
            for task_a in tasks:
                if task_a.id == task_b.id:
                    continue
                # Does task_b's input mention what task_a produces?
                if any(keyword in task_b.input_description.lower()
                       for keyword in task_a.output_keywords):
                    deps[task_b.id].append(task_a.id)
        return deps

    This function’s purpose is to extract task_B’s dependencies of task_A by matching keywords.

  3. Explicit declaration

    The planning prompt requires the LLM to declare dependencies for each step. This is the most reliable approach — make the LLM think about dependencies during planning, not as a post-processing step.

5.2.5 Parallelism

This is where task decomposition delivers its biggest advantage over ReAct.

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
Task: "Research competitor pricing and analyze our churn data"

ReAct (sequential, ~8 steps):
  search_competitor_A() → search_competitor_B() → search_competitor_C()
  → extract_churn_data() → clean_data() → calculate_rates()
  → cross_reference() → write_report()
  Time: 8 × (LLM latency + tool latency)

Task Decomposition (parallel, ~3 time units):
  ┌─ search_competitor_A() ─┐
  ├─ search_competitor_B() ─┤  All 3 run simultaneously
  └─ search_competitor_C() ─┘
  ┌─ extract_churn_data() ──┐
  └─ clean_data() ──────────┘  Runs in parallel with competitor search
  calculate_rates()           (depends on clean_data)
  cross_reference()           (depends on all above)
  write_report()              (depends on cross_reference)
  Time: ~4 time units (LLM calls are the bottleneck)

Tasks at the same topological level can run in parallel:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
def topological_levels(tasks: list[Task]) -> list[list[Task]]:
    """
    Group tasks into levels where all tasks in a level
    have their dependencies satisfied by previous levels.
    """
    completed = set()
    remaining = set(t.id for t in tasks)
    levels = []

    while remaining:
        level = [t for t in tasks
                 if t.id in remaining
                 and all(d in completed for d in t.depends_on)]

        if not level:
            raise ValueError(f"Circular dependency detected in: {remaining}")

        levels.append(level)
        for t in level:
            completed.add(t.id)
            remaining.remove(t.id)

    return levels

For the previous DAG example:

1
2
3
4
Level 0: [A]           ──── can't parallelize (only one task)
Level 1: [B]           ──── depends on A
Level 2: [C, D]        ──── both only depend on B → RUN IN PARALLEL
Level 3: [E]           ──── depends on C and D

Sequential vs Parallelism in Math:

1
2
3
4
5
6
Sequential: Total time = Σ(time per task)
Parallel:   Total time = Σ(max time per level)

Example with 10 tasks, 4 levels, avg 2.5 tasks/level:
  Sequential: 10 × 3s = 30s
  Parallel:   4 × 3s  = 12s  (2.5× speedup)

5.2.6 Common Failure Problems

5.2.6.1 Over-Decomposition

e.g.

1
2
3
4
5
6
Bad:  "Send an email" decomposed into:
      1. Open email client
      2. Type recipient address
      3. Type subject line
      4. Type body
      5. Click send

These aren’t Agent tasks — they’re UI actions. The Agent doesn’t click buttons; it calls send_email(to, subject, body).

Fix: Decompose to the level of tool calls or reasoning steps, not UI actions or API internals.

5.2.6.2 Missing Dependencies

1
2
3
4
5
6
Task A: "Clean the dataset"
Task B: "Train the model"
Task C: "Evaluate model accuracy"

Missing: B depends on A (can't train on dirty data)
         C depends on B (can't evaluate before training)

Fix: Always ask “what does this task need that it doesn’t produce itself?” during decomposition.

5.2.6.3 Phantom Dependencies

1
2
3
4
Task A: "Search for flights"
Task B: "Check weather"

Declared: B depends on A  ← WRONG — weather doesn't depend on flights!

Consequence: Lost parallelism. B waits for A unnecessarily.

Fix: For each declared dependency, ask “would B literally fail without A’s output?” If no → remove the edge.

5.2.6.4 The Mega-Task

1
2
Task: "Analyze customer churn, segment customers, identify patterns,
       build predictive model, generate recommendations, create dashboard"

This isn’t decomposed — it’s just a description with commas.

Fix: Each task should be describable in ONE sentence with ONE verb.

5.2.6.5 Assuming the LLM Will Figure It Out

1
Prompt: "Here's a complex goal. Do it."

This works for simple tasks but fails silently on complex ones — the LLM does something, but you have no visibility into whether it covered everything.

Fix: Always decompose explicitly. The decomposition is your observability into what the Agent plans to do.

5.2.7 Implementation

5.2.7.1 The Task Graph Data Structure

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
@dataclass
class Task:
    id: str
    description: str
    tool_hint: str | None
    expected_output: str
    depends_on: list[str]
    input_from: dict[str, str]  # Maps dependency_id → what this task needs from it

@dataclass
class TaskGraph:
    goal: str
    tasks: list[Task]

    def levels(self) -> list[list[Task]]:
        """Group tasks into parallel-executable levels."""
        ...

    def validate(self) -> list[str]:
        """Check for cycles, missing deps, orphan tasks."""
        ...

5.2.7.2 The Decomposer Prompt Template

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
You are a task decomposition specialist. Break down the following goal into executable subtasks.

GOAL: {goal}

AVAILABLE TOOLS:
{tools_description}

RULES:
1. Each task = ONE tool call or ONE focused reasoning step
2. Specify dependencies explicitly (what MUST complete before this starts?)
3. For each dependency, explain WHAT this task needs from it
4. Mark tasks with no dependencies — they run first (in parallel if possible)
5. Maximum 12 tasks. If it needs more, merge related subtasks.

OUTPUT FORMAT (JSON):
{
  "goal": "...",
  "tasks": [
    {
      "id": "1",
      "description": "Extract churn data from the last 6 months",
      "tool_hint": "query_database",
      "expected_output": "CSV file with customer_id, churn_date, plan_type, monthly_charge",
      "depends_on": [],
      "input_from": {}
    },
    ...
  ]
}

5.2.7.3 The Full Decomposition → Execution Pipeline

1
2
3
4
5
6
7
8
9
10
11
12
13
14
def decompose_and_execute(goal: str) -> Result:
    # Phase 1: Decompose
    task_graph = decomposer.decompose(goal)       # LLM call
    task_graph.validate()                         # Sanity checks

    # Phase 2: Execute level by level
    results = {}
    for level in task_graph.levels():
        # All tasks in this level are independent → run in parallel
        level_results = parallel_execute(level, context=results)
        results.update(level_results)

    # Phase 3: Synthesize
    return synthesize(results, task_graph.goal)

5.3 Self-Reflection

5.3.1 Why Agent needs Self-Reflection

An Agent that never questions its own output is an Agent that will confidently deliver wrong answers.

So far, the agent work pipeline is:

1
Plan + Execute + Done

But there’s a gap: who checks the quality?

We have the re-plan mechanism, but it only triggers on failure — the tool returned an error. But what about:

  • The plan is complete but suboptimal (missed a faster approach)?
  • The execution succeeded but the answer is wrong (tool returned valid data, but the LLM misinterpreted it)?
  • The plan has a logical flaw that won’t cause a tool error (e.g., analyzing churn before checking if we have enough data)?

Self-reflection fills this gap. It adds a quality gate:

1
2
3
4
Plan → Reflect → Refine → Execute → Reflect on outcome
         ↑                                  │
         └──────────────────────────────────┘
              (if reflection finds issues)

The precise definition a Self-Reflection is:

Self-Reflection is the Agent’s ability to critique its own reasoning, plans, and outputs — and use that critique to improve before delivering to the user.

Key insight: LLMs are better at evaluating than generating. Given an answer, an LLM can spot flaws more reliably than it can avoid making those flaws in the first place. Reflection exploits this asymmetry.

Comparison:

Without reflection With reflection
“The plan looks fine” → execute blindly “Step 3 assumes data is sorted — is it?” → fix before execution
Tool returned 200 OK → assume success “200 OK but response body says ‘0 results’” → catch semantic errors
Deliver first draft to user Deliver third draft, after two rounds of self-improvement
Hallucinated facts go unnoticed “Where did this number come from? I don’t see it in the tool output”

5.3.2 Three Reflection Patterns

5.3.2.1 Reflexion (Post-Execution)

When: After execution produces a result. The Agent looks at what happened and asks “was that good? if not, why?”

1
2
3
4
5
Loop:
  1. Actor: Generate a response / execute a plan
  2. Evaluator: Check the outcome against success criteria
  3. If failed → Reflector: Write a "reflection" (what went wrong, why)
  4. Actor (with reflection in context): Try again, avoiding the mistake

The key mechanism is the reflection memory — a persistent note about what went wrong, carried into the retry:

1
2
3
4
5
6
7
8
9
Attempt 1:
  Actor: I'll search for "Python sorting algorithms" → gives generic results
  Evaluator: The user asked about Timsort specifically. Irrelevant.
  Reflector: "Don't use generic search queries. Include specific terms
              from the user's question (e.g., 'Timsort')."

Attempt 2 (with reflection in context):
  Actor: [sees reflection] I'll search for "Timsort algorithm Python implementation"
  Evaluator: Much better. Relevant results.

5.3.2.2 Self-Critique (Pre-Execution)

When: Before executing a plan. The Agent critiques the plan itself — “what could go wrong with this plan?”

This is cheaper than Reflexion because you catch problems before spending tool calls:

1
2
3
4
5
6
7
8
9
10
Planner: Here's my 5-step plan for deploying to staging.

Critic: Questions to ask about this plan:
  1. Step 2 (build image) — what if the Docker daemon is down?
  2. Steps 1-5 are all sequential — can any run in parallel?
  3. No rollback step — what happens if deploy succeeds but smoke tests fail?
  4. Missing: check if staging already has a deployment in progress

Planner (revised): Good points. Adding a pre-check step, parallelizing
  steps 3-4, and adding a rollback step.

The Critic doesn’t need tools — it just needs reasoning ability. This makes it fast and cheap.

5.3.2.3 Actor-Critic (Continuous)

When: Throughout the entire process. One “Actor” generates, one “Critic” evaluates — continuously.

This is the bridge to multi-agent systems. The Actor and Critic are two different “personas” — same LLM, different prompts:

1
2
Actor prompt:  "You are a software engineer. Solve this problem."
Critic prompt: "You are a code reviewer. Find every flaw in this solution. Be harsh. Be specific. Suggest concrete fixes."

Comparison:

Pattern When Cost What it catches Best for
Reflexion After failure 1 extra LLM call per retry Execution mistakes, wrong tool choices Tasks where failure is obvious
Self-Critique Before execution 1 extra LLM call Plan flaws, missing steps, assumptions Complex plans with many dependencies
Actor-Critic Throughout 2× LLM calls (Actor + Critic) Everything — planning + execution + output Production systems, high-stakes tasks

5.3.3 The Reflection Prompt

5.3.3.1 Critic Prompt

The Critic needs a different persona from the Actor. Here’s the template:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
You are a CRITIC. Your job is to find flaws, not to be nice.

Review the following {artifact_type} produced for this goal:
GOAL: {goal}

ARTIFACT:
{artifact}

Evaluate against these criteria:
1. COMPLETENESS: Does it cover EVERYTHING the goal requires?
2. CORRECTNESS: Are there any factual errors or bad assumptions?
3. EFFICIENCY: Can any steps be parallelized? Any redundant work?
4. ROBUSTNESS: What could fail? What's the fallback?
5. SPECIFICITY: Are any steps too vague? ("Analyze the data" is not a step)

For each flaw you find:
  - What exactly is wrong?
  - Why it matters (concrete consequence)
  - How to fix it (specific suggestion)

Be harsh. It's better to flag something that's fine than to miss a real problem.

5.3.3.2 Refinement Prompt

After critique, the Actor needs to incorporate feedback:

1
2
3
4
5
6
7
8
Your previous {artifact_type} was reviewed. Here's the critique:

CRITIQUE:
{critique}

Revise your {artifact_type} to address every issue raised.
If you disagree with a critique point, explain why you're not changing it.
Output the complete revised {artifact_type}.

5.3.3.3 Reflection Termination Condition

Reflection can loop forever (critique → refine → critique → refine…). We need an exit rule:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
def should_continue_reflecting(
    round: int,
    previous_critiques: list[str],
    new_critique: str,
    max_rounds: int = 3
) -> bool:
    if round >= max_rounds:
        return False  # Hard stop

    # Diminishing returns: is the critique still finding NEW issues?
    new_issues = extract_issues(new_critique)
    old_issues = set()
    for c in previous_critiques:
        old_issues.update(extract_issues(c))

    genuinely_new = new_issues - old_issues
    if not genuinely_new:
        return False  # Rehashing the same problems — stop

    return True

5.3.4 When Reflection Helps or Not

Scenarios Where Reflection Adds Value:

Scenario Without reflection With reflection
Complex reasoning (math, logic) First answer may have subtle errors Critique catches reasoning gaps
Code generation May miss edge cases, have bugs Code review catches issues before execution
Plan generation Missing steps, wrong order Plan critique catches structural flaws
Data analysis Misinterprets results “This conclusion doesn’t follow from the data”
User-facing output Typos, unclear explanations Quality review before delivery

Scenarios Where Reflection Is Wasteful:

Scenario Why reflection doesn’t help
Simple factual queries “What’s 2+2?” — nothing to critique
Single tool calls “Search for X” — either works or doesn’t, no planning to review
Subjective/creative tasks “Write a poem” — critique is taste, not correctness
Model is already confident + correct Extra LLM calls with no new insights

So we should classify if the process need reflection:

1
2
3
4
5
6
7
8
def should_reflect(task: Task, stakes: str) -> bool:
    if task.complexity == "simple":
        return False  # Not worth the extra LLM call
    if task.type in ("code", "plan", "analysis", "math"):
        return True   # These benefit from review
    if stakes == "high":
        return True   # Even if simple, double-check
    return False

5.3.5 Connection to Multi-Agent Systems

Actor-Critic Is the Simplest Multi-Agent Pattern.

Self-Reflection with Actor-Critic uses one LLM with two prompts. This is the conceptual bridge:

1
2
3
4
5
Single-Agent Self-Reflection:
  Agent(wearing "Actor hat") → Agent(wearing "Critic hat") → Agent(wearing "Actor hat" again)

Multi-Agent (Agent-as-a-Tool):
  ActorAgent(calls) → CriticAgent(evaluates) → ActorAgent(revises)

Once you accept that “having another perspective improves quality,” the natural next step is:

  1. “What if the Critic had its own tools?” → specialized review agent
  2. “What if I had multiple Critics with different expertise?” → panel review
  3. “What if the Actor could delegate sub-tasks to other Actors?” → agent orchestration

5.3.6 Implementation

The Reflection Loop:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
class ReflectiveAgent:
    def run(self, goal: str) -> Result:
        # Phase 1: Generate
        plan_or_answer = self.actor.generate(goal)

        # Phase 2: Reflect (optional, based on task complexity)
        for round in range(self.max_reflection_rounds):
            critique = self.critic.evaluate(goal, plan_or_answer)

            if not critique.has_substantive_issues():
                break  # Good enough

            plan_or_answer = self.actor.refine(plan_or_answer, critique)

        # Phase 3: Execute (if it's a plan) or Return (if it's an answer)
        return self.execute(plan_or_answer)

Critic's Output Format

The critique must be structured so the Actor can act on it:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
@dataclass
class Critique:
    overall_assessment: str       # "good" | "needs_minor_fixes" | "needs_major_revision"
    issues: list[Issue]           # Specific problems found
    score: float                  # 0.0 - 1.0, for quantitative tracking
    improved: bool                # Is this better than the previous version?

@dataclass
class Issue:
    severity: str                 # "critical" | "major" | "minor"
    location: str                 # Which part of the artifact
    description: str              # What's wrong
    consequence: str              # Why it matters
    suggestion: str               # How to fix it

6. Multi-Agent

Having the concept of “Actor-Critic” pattern, we can introduce the concept of “Multi-Agent” system.

It’s like a enhanced version of “Actor-Critic”.

In a nutshell, we independent the “Critic” system as an independent agent which has its own tool interface…

6.1 Agent-as-a-Tool

6.1.1 Intro

If one Agent is a chef, Agent-as-a-Tool is the sous-chef — a specialized helper you call when you need their specific skill.

In previous context, we had one Agent switching between two “hats”:

1
2
3
Same LLM, different prompts:
  🎭 Actor Hat:  "You are an engineer. Solve this problem."
  🔍 Critic Hat: "You are a reviewer. Find every flaw."

The pattern worked: Generate → Critique → Refine. But it had limits:

  • Both hats share the same context window — the Critic’s harshness bleeds into the Actor’s creative space
  • Both hats share the same tool set — you can’t give the Critic review-specific tools without cluttering the Actor
  • No parallelism — you can’t critique Plan A while simultaneously generating Plan B

Agent-as-a-Tool splits the two hats into two separate Agent instances. The Critic becomes a tool that the Actor can call:

1
2
3
4
5
6
7
8
9
10
Before (Just as Prompt):          After (as an independent Agent):
┌─────────────────────┐           ┌──────────────┐     ┌──────────────┐
│ Agent               │           │ Orchestrator │     │ Specialist   │
│ 🎭 generate plan    │           │ Agent        │────→│ Agent        │
│ 🔍 critique plan    │           │              │     │              │
│ 🎭 refine plan      │           │ "I need a    │     │ "Here's my   │
│ 🔍 critique again   │           │  code review"│     │  review..."  │
└─────────────────────┘           └──────────────┘     └──────────────┘
                                   Orchestrator calls Specialist
                                   like calling any other tool

The Specialist Agent is wrapped as a tool. The Orchestrator doesn’t know or care that the tool is backed by an LLM — it’s just review_code(code) returning structured feedback.

Agent-as-a-Tool is the simplest multi-agent pattern: wrap a specialized Agent behind a tool interface so that another Agent can call it as part of its tool-calling loop.

Why should separate the agents?

Advantages:

Advantage Switch Prompt Agent-as-Tool
Context isolation Actor and Critic share one context window → prompt interference Each Agent has its own context → clean separation
Tool specialization All hats share the same tool set Each Agent has only the tools it needs (Critic gets linter, Actor gets deploy tools)
Parallelism Sequential — generate then critique Both can run simultaneously on different inputs

Trade-off:

Not everything should be an Agent-as-a-Tool. The pattern adds:

  • Latency: calling an Agent means an LLM round-trip (or multiple, if the specialist uses ReAct)
  • Cost: each Agent call is at least one LLM API call
  • Complexity: debugging two interacting Agents is harder than debugging one

Rule of thumb: Use Agent-as-a-Tool when the specialist needs its own context, its own tools, or independent reasoning. Otherwise, a prompt switch is cheaper.

6.1.2 Architecture

6.1.2.1 The Wrapper

How can we build a agent as a tool?

We need three core parts, the Tool Schema, Specialist Agent and Callable Interface:

# Component Why it’s needed
① Tool Schema Orchestrator needs to know: this tool exists, what it does, what arguments it takes. Same as any other tool in the registry.
② Specialist Agent The actual Agent that runs when called — own prompt, own tools, own context, own ReAct loop.
③ Callable Interface Two translations: (a) tool args (dict) → natural language task for the specialist; (b) specialist output → structured dict for the Orchestrator to parse. Without these, the two Agents can’t communicate.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
class AgentAsTool:
    """Wraps an Agent behind a tool-callable interface."""

    def __init__(self, agent: Agent, tool_schema: ToolSchema):
        # ① A TOOL SCHEMA — so the Orchestrator discovers and understands this tool
        self.schema = tool_schema   # name, description, parameters (JSON Schema)

        # ② A SPECIALIST AGENT — the actual LLM-backed agent to run when called
        self.agent = agent

    def __call__(self, **kwargs) -> dict:
        """③ A CALLABLE INTERFACE — quacks like a tool when invoked."""

        # ③-a: Format: translate tool arguments → specialist task
        task = self._format_task(kwargs)

        # ②: Run the specialist
        result = self.agent.run(task)

        # ③-b: Unformat: translate specialist output → structured dict
        return self._format_result(result)

6.1.2.2 The Orchestrator’s View

From the Orchestrator’s perspective, calling an Agent-as-a-Tool is identical to calling any other tool:

1
2
3
4
5
6
7
8
Orchestrator thinks:
  "I just wrote a deployment script. I should get it reviewed."

  → calls review_code(script)
  → waits (the specialist runs its own ReAct loop)
  ← receives: {issues: [...], score: 0.7, suggestions: [...]}

  "OK, 3 issues found. Let me fix those before deploying."

The Orchestrator doesn’t see the specialist’s internal reasoning — just the structured output. This is encapsulation, same as with any tool.

The orchestrator sees it as just another tool in its tool list:

1
2
3
4
5
tools = [
    Tool("web_search", "Search the internet", ...),
    Tool("run_tests", "Run the test suite", ...),
    Tool("review_code", "Have a code reviewer check this diff", ...),  # ← Agent-as-Tool!
]

6.1.2.3 The Specialist Agent’s View

When the Orchestrator calls review_code(code=script), the specialist Agent runs its own loop:

1
2
3
4
5
6
7
8
Specialist (Code Reviewer Agent):
  Think: I need to review this deployment script for issues.
  Act: I'll check for missing error handling → finds try-except gaps
  Think: Need to check security — are credentials hardcoded?
  Act: grep for password/token patterns → finds one
  Think: That's the main issues. Let me also check...
  ... (continues its own ReAct loop)
  → Returns: structured review with 3 issues found

The specialist can use its own tools (linter, grep, security scanner) that the Orchestrator doesn’t even know about.

6.1.3 Common Patterns

6.1.3.4 Reviewer Pattern

1
Orchestrator generates → Reviewer Agent checks → Orchestrator fixes

The most direct evolution of the Actor-Critic pattern.

The Reviewer Agent has:

  • Its own strict prompt (“be harsh, find everything”)
  • Specialized tools: linter, type checker, test runner
  • No permission to modify — read-only, critique-only

6.1.3.5 Verifier Pattern

1
Orchestrator claims a fact → Verifier Agent checks it → Orchestrator corrects or cites

e.g.

1
2
3
4
Orchestrator: "Python 3.12 introduced the match statement."
Verifier:     "FALSE — match was introduced in Python 3.10 (PEP 634).
               Python 3.12 added PEP 695 (type parameter syntax).
               Correct the version number."

6.1.3.6 Delegation Pattern

1
Orchestrator decomposes → delegates sub-tasks to specialists → synthesizes results

e.g

1
2
3
4
5
Orchestrator: "Build a full-stack feature"
  → delegates "write API endpoint" to Backend Agent
  → delegates "create React component" to Frontend Agent
  → delegates "write tests" to QA Agent
  → synthesizes all results into a PR

This connects directly to Task Decomposition.

The DAG’s leaf tasks become Agent-as-a-Tool calls.

6.1.3.7 Debate Pattern

1
Orchestrator asks a question → two specialists argue opposite sides → Orchestrator judges
1
2
3
4
Orchestrator: "Should we use microservices for this project?"
  → Pro Agent: argues for microservices (scalability, team autonomy)
  → Con Agent: argues against (complexity, operational cost)
  → Orchestrator: synthesizes a balanced recommendation

6.1.4 Design Decisions

6.1.4.1 How Much Context to Pass?

The Orchestrator shouldn’t dump its entire context into the specialist. Pass only what the specialist needs:

1
2
3
4
5
6
7
8
9
# Bad: passes everything
result = review_code(code=script, full_conversation_history=history)

# Good: passes only what's relevant
result = review_code(
    code=script,
    requirements="Must handle auth, rate limiting, error recovery",
    context="This is the staging deployment script for the dark-mode feature"
)

6.1.4.2 Structured Output

The Orchestrator needs to parse the specialist’s result and act on it. The specialist must return structured data:

1
2
3
4
5
6
@dataclass
class ReviewResult:
    issues: list[Issue]     # What's wrong
    score: float            # 0-1 overall quality
    summary: str            # One-paragraph verdict
    suggestions: list[str]  # Concrete fixes

If the specialist returns free-text, the Orchestrator has to parse it — and parsing LLM output is fragile.

6.1.4.3 Timeout and Cost Control

An Agent-as-a-Tool call is expensive (the specialist runs its own ReAct loop). Set bounds:

1
2
3
result = review_code(code=script,
                    max_specialist_steps=10,   # Limit the specialist's ReAct loop
                    timeout_seconds=30)         # Hard timeout

6.2 Communication between Agents

6.2.1 Problem

6.2.1.1 Problem Discription

After encapsulating agent into a tool and implementing a basic communication pattern:

1
2
Orchestrator ➡ calls review_code() ➡  CodeReviewer Agent
                                    ⬅ returns structured result

But this single pattern raises questions it can’t answer:

Question 6.1 can’t answer Why it matters
Should the Orchestrator wait for the review, or keep working? If review takes 10s, the Orchestrator is idle for 10s. Maybe it could do other work.
What if three agents all need the build result? Do we call each one? Broadcast? Put it somewhere they can all read?
What if there’s no Orchestrator — agents are peers? 6.1 assumes a caller-callee hierarchy. What if agents are equals?
What if we add a new agent next week? Does every existing agent need code changes to know about the new one?

6.2.1.1 Three Dimensions of Communication

Every agent-to-agent communication can be described along three dimensions:

1
2
3
4
5
┌──────────────────────────────────────────────────────────────┐
│  DIMENSION 1: TOPOLOGY     — Who talks to whom?              │
│  DIMENSION 2: MECHANISM    — How does the message travel?    │
│  DIMENSION 3: HANDOFF      — Why is this message being sent? │
└──────────────────────────────────────────────────────────────┘

You can mix and match. For example: “Hub-and-Spoke topology, with a Message Queue mechanism, carrying Delegation handoffs.” Each combination has different trade-offs.

6.2.2 Message

Before discussing topologies and mechanisms, we need to define what a message actually is. In 6.1, the Orchestrator just passed code="..." to a tool. For richer communication, messages need structure.

6.2.2.1 The Message Data Model

A message between agents needs to carry more than just content — it needs to carry intent:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
class HandoffType(Enum):
    DELEGATION = "delegation"       # "You handle this sub-task"
    ESCALATION = "escalation"       # "I can't solve this — you take over"
    CONSULTATION = "consultation"   # "What do you think about this?"
    NOTIFICATION = "notification"   # "FYI, this happened"


@dataclass
class Message:
    """Structured message between agents."""
    sender: str                     # Who sent this
    receiver: str                   # Agent name, or "ALL" for broadcast
    handoff_type: HandoffType       # WHY this message is being sent
    content: str                    # Natural language body
    data: dict                      # Structured payload (typed data)
    timestamp: float                # When it was sent
    reply_to: str | None = None     # Message ID this is replying to

Why each field exists:

Field Purpose Example
sender / receiver Routing — the topology "Orchestrator", "ALL"
handoff_type Intent — what the receiver should DO DELEGATION = “do this”, CONSULTATION = “review this”
content The natural language body — what the LLM reads "Review this code for security issues"
data Structured payload — what the code parses {"code": "...", "language": "python"}
timestamp Ordering and timeout 1712345678.0
reply_to Conversation threading References a previous message ID

6.2.2.2 Separation of content and data

Why Separate content from data?

1
2
3
4
5
6
7
8
9
10
# content: for the LLM to read
content = "Please review the deploy script for security issues."

# data: for the agent's code/tools to use
data = {
    "script": "kubectl apply -f deployment.yaml",
    "lines": 45,
    "language": "yaml",
    "context": "This is the staging deployment for the dark-mode feature"
}

The content is what the receiving Agent’s LLM sees in its prompt. The data is what the receiving Agent’s tools consume (e.g., a linter needs language to know which rules to apply). Keeping them separate means:

  • The LLM gets a concise natural-language summary (not raw JSON)
  • The tools get typed, structured input (not free text they have to parse)

6.2.3 Five Topologies

A topology defines the routing graph: which agents are allowed to talk to which other agents. This is the most visible architectural decision in a multi-agent system.

6.2.3.1 Point-to-Point

Point-to-Point is the simplest structure. One agent directly invokes exactly one other agent. There is exactly one sender and exactly one receiver.

How it works in code:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
class DirectCall:
    """Synchronous point-to-point communication."""

    def invoke(self, callee: SimAgent, message: Message) -> dict:
        """A calls B directly, blocks until B responds."""
        self.call_log.append(message)

        # B processes the message through its own agent loop
        result = callee.receive(message)

        return result

# Usage:
comm = DirectCall()
orchestrator = SimAgent("Orchestrator", "coordinator", ["planning"])
reviewer = SimAgent("CodeReviewer", "reviewer", ["security", "code review"])

msg = Message(
    sender="Orchestrator", receiver="CodeReviewer",
    handoff_type=HandoffType.DELEGATION,
    content="Please review this code for security issues.",
    data={"code": "def deploy(): os.system('rm -rf /')"},
)

result = comm.invoke(reviewer, msg)
# Orchestrator blocks here until Reviewer returns
# result = {"summary": "Found 2 issues...", "success": True}

When to use:

  • Clear caller-callee hierarchy (Orchestrator → Specialist)
  • Request-response interactions (ask a question, get an answer)
  • The caller NEEDS the result before it can proceed

When NOT to use:

  • N > 3 agents — managing O(N²) possible connections becomes unwieldy
  • The caller doesn’t need the result immediately — use async instead
  • Multiple agents need the same information — use broadcast or blackboard

Concrete scenario: An Orchestrator writes a function, needs it reviewed before deploying. Calls the CodeReviewer Agent directly. Blocks until the review comes back. Then decides: fix issues or proceed with deploy.

6.2.3.2 Hub-and-Spoke

1
2
3
              ┌──→ Backend Agent (API design)
Hub ──────────┼──→ Frontend Agent (React component)
              └──→ Security Agent (auth review)

What it is: A central Orchestrator (the Hub) routes all communication. Spoke agents never talk to each other directly — they only communicate with the Hub. The Hub decomposes tasks, delegates to specialists, collects results, and synthesizes.

Why this is the most common production pattern: It gives you a single point of control and observability. To understand what the system is doing, you look at the Hub. To add a new agent, you register it with the Hub — no other agent needs to change.

How it works in code:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
# The Hub decides the plan and delegates to each specialist
hub = SimAgent("Hub", "orchestrator", ["planning", "coordination"])
backend = SimAgent("Backend", "backend_dev", ["API design", "database"])
frontend = SimAgent("Frontend", "frontend_dev", ["React", "CSS", "UX"])
security = SimAgent("Security", "security_auditor", ["auth", "vulnerability"])

comm = DirectCall()  # Hub uses direct calls to each spoke

# Hub plans the work, then delegates each sub-task
tasks = [
    (backend,  "Design the /api/users endpoint with pagination"),
    (frontend, "Create a user list component with loading states"),
    (security, "Review the auth middleware for token handling issues"),
]

results = {}
for specialist, task in tasks:
    msg = Message(
        sender="Hub", receiver=specialist.name,
        handoff_type=HandoffType.DELEGATION,
        content=task,
    )
    results[specialist.name] = comm.invoke(specialist, msg)

# Hub synthesizes all results — it sees EVERYTHING
# Backend doesn't know Frontend exists. Frontend doesn't know Security exists.

The Hub’s responsibility:

  1. Decompose the task
  2. Route each sub-task to the right specialist
  3. Collect results from all spokes
  4. Synthesize a final answer for the user
  5. Handle failures — if one spoke fails, the Hub decides: retry, reassign, or skip?

The Spoke’s responsibility:

  1. Receive a well-scoped sub-task
  2. Execute using its own tools and expertise
  3. Return a structured result

That’s it. Spokes are simpler than the Hub — they do one thing well.

Key insight — the Hub is both a bottleneck AND a advantage:

  • Bottleneck: All results flow through the Hub’s context window. If three spokes each return 2000 tokens of output, the Hub’s context gets 6000 tokens heavier. At some point, the Hub can’t hold everything.
  • Advantage: Because the Hub sees everything, it can make global decisions. “Backend designed the API, but Frontend said they need an extra field — let me reconcile that.” No other topology gives you this.

When to use:

  • One agent has the “big picture” and coordinates others
  • You need a single place to observe and debug
  • Task decomposition + delegation
  • You want to add/remove specialists without changing other agents

When NOT to use:

  • The Hub becomes a bottleneck (too many spokes, too much context)
  • The system needs to work without the Hub (single point of failure)
  • Agents need to collaborate directly without mediation

6.2.3.3 Broadcast

1
2
3
BuildBot ➡ "Build complete: app:v2.3.1" ➡ DeployBot
                                         ➡ MonitorBot
                                         ➡ NotifyBot

What it is: One agent sends a message to ALL other agents simultaneously. The sender sets receiver="ALL" and doesn’t know or care who receives it.

How it works in code:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
class MessageQueue:
    """
    Point-to-point (receiver="CodeReviewer"): removed after ONE agent polls.
    Broadcast (receiver="ALL"): kept until ALL registered agents have polled.
    """

    def __init__(self):
        self.queue: list[Message] = []
        self._broadcast_delivered: dict[int, set] = {}  # msg → {agents who've seen it}
        self._registered_agents: set = set()

    def register_agent(self, agent_name: str):
        """Tell the queue who 'ALL' refers to."""
        self._registered_agents.add(agent_name)

    def send(self, message: Message):
        self.queue.append(message)
        if message.receiver == "ALL":
            self._broadcast_delivered[id(message)] = set()

    def poll(self, agent_name: str) -> list[Message]:
        mine = [m for m in self.queue
                if m.receiver == agent_name or m.receiver == "ALL"]
        results = []
        for m in mine:
            if m.receiver == "ALL":
                # Broadcast: deliver copy to every agent.
                # Only remove after ALL registered agents have received it.
                delivered_to = self._broadcast_delivered.get(id(m), set())
                if agent_name not in delivered_to:
                    delivered_to.add(agent_name)
                    results.append(m)
                if delivered_to >= self._registered_agents:
                    self.queue.remove(m)    # Everyone got it → safe to remove
            else:
                # Point-to-point: remove immediately — exactly one receiver.
                self.queue.remove(m)
                results.append(m)
        return results

# Usage:
queue = MessageQueue()
for agent in [deploy_bot, monitor_bot, notify_bot]:
    queue.register_agent(agent.name)   # ← must register first

msg = Message(sender="BuildBot", receiver="ALL",
              handoff_type=HandoffType.NOTIFICATION,
              content="Build complete: app:v2.3.1, hash=abc123")
queue.send(msg)
# BuildBot continues immediately — doesn't wait for anyone

# Each receiver polls independently. All three see the broadcast.
for agent in [deploy_bot, monitor_bot, notify_bot]:
    for m in queue.poll(agent.name):
        agent.receive(m)  # Each agent decides independently what to do

Key design choice — push vs pull: In the code above, receivers poll for messages. An alternative is push — the queue calls each receiver’s callback immediately. Poll gives receivers control over when they process; push gives lower latency. For notification-style messages, poll is usually fine (nobody needs millisecond response to a build notification).

When to use:

  • Status updates that multiple agents care about (“build passed”, “deploy complete”)
  • Context changes that affect everyone (“budget is now $500”, “we’re pivoting to a different approach”)
  • Alerts that anyone might act on (“production error rate spiking”)

When NOT to use:

  • The message is only relevant to one agent — use point-to-point
  • You need confirmation that someone acted — broadcast is fire-and-forget
  • The message is large — don’t broadcast 10KB of data to 20 agents

The “noisy channel” problem: Every agent receives every broadcast, even irrelevant ones. DeployBot doesn’t need to know about a frontend lint failure. Mitigation: agents filter messages by handoff_type or by checking data fields. But the filtering logic lives in each receiver, not in the channel.

The “noisy channel” problem: Every agent receives every broadcast, even irrelevant ones. DeployBot doesn’t need to know about a frontend lint failure. Mitigation: agents filter messages by handoff_type or by checking data fields. But the filtering logic lives in each receiver, not in the channel.

6.2.3.4 Mesh

1
2
3
Alice ─── Bob
  │   ╳    │
Carol ─── ...

What it is: Every agent can communicate directly with every other agent. No central hub. No routing rules. Any agent can initiate a conversation with any other agent.

How it works in code:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
# In a mesh, every agent has a reference to every other agent
# (or a registry they can look up)
alice = SimAgent("Alice", "architect", ["system design", "trade-offs"])
bob = SimAgent("Bob", "security_expert", ["threat modeling", "auth"])
carol = SimAgent("Carol", "performance_eng", ["profiling", "optimization"])

comm = DirectCall()
# No hub — agents talk directly to whoever has relevant expertise

# Alice consults Bob about security
msg1 = Message("Alice", "Bob", HandoffType.CONSULTATION,
    "Is this microservices design secure against lateral movement?")
r1 = comm.invoke(bob, msg1)

# Bob's concern leads him to consult Carol
msg2 = Message("Bob", "Carol", HandoffType.CONSULTATION,
    "If we add auth checks per service, will latency spike?")
r2 = comm.invoke(carol, msg2)

# Carol consults Alice about an alternative approach
msg3 = Message("Carol", "Alice", HandoffType.CONSULTATION,
    "Can we batch auth checks at the gateway instead of per-service?")
r3 = comm.invoke(alice, msg3)

# Three agents, three conversations, no coordinator.
# The discussion path (Alice→Bob→Carol→Alice) emerged organically.

When to use:

  • Collaborative problem-solving where expertise is distributed
  • Peer-to-peer negotiation (debate pattern, consensus building)
  • No clear “boss” — all agents are equals
  • The communication graph is genuinely dynamic (you can’t predefine who talks to whom)

When NOT to use:

  • More than 3-4 agents — O(N²) connections become unmanageable
  • You need audibility — “who said what to whom?” is hard to trace
  • The system needs predictable behavior — mesh conversations evolve unpredictably

Why production systems rarely use pure Mesh: N agents → N×(N-1) possible directed conversations. With 5 agents, that’s 20 possible call paths. With 10 agents, it’s 90. Debugging a 10-agent mesh when something goes wrong is extremely difficult — the conversation could have followed any of 90 paths. Most production systems use Hub-and-Spoke with limited mesh (the Hub authorizes two spokes to talk directly for a specific sub-task).

The “conversation explosion” problem visualized:

1
2
3
3 agents:  6 possible conversations  — manageable
5 agents:  20 possible conversations — getting complex
10 agents: 90 possible conversations — un-debuggable

6.2.3.5 Shared Blackboard

1
2
3
DataEngineer ──write "churn_data" ➡ 📋
Analyst ──read "churn_data" ➡ 📋 ──write "churn_analysis" ➡ 📋
ReportWriter ──read "churn_analysis" ➡ 📋 ──write "final_report" ➡ 📋

What it is: Agents don’t message each other at all. They read and write to a shared memory space — the “blackboard.” Communication is indirect and implicit: Agent A writes something, Agent B notices it and acts on it. Neither knows the other exists.

This is fundamentally different from the other four topologies. There are no messages, no sender, no receiver, no handoff type. The only primitive is read(key) and write(key, value).

How it works in code:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
class SharedState:
    """A key-value store accessible to all agents. Communication by side-effect."""

    def __init__(self):
        self.state: dict[str, Any] = {}
        self.write_log: list[tuple[str, str, Any]] = []

    def write(self, agent: str, key: str, value: Any):
        """Agent writes data under a known key."""
        self.state[key] = value
        self.write_log.append((agent, key, value))

    def read(self, agent: str, key: str) -> Any | None:
        """Agent reads data by key. Returns None if key doesn't exist."""
        return self.state.get(key)

# Usage:
board = SharedState()

# Agent 1: Data Engineer — writes the raw data
board.write("DataEngineer", "churn_data",
    {"rows": 15420, "fields": ["customer_id", "plan", "churn_date"]})

# Agent 2: Analyst — reads what DataEngineer wrote, writes analysis
data = board.read("Analyst", "churn_data")
if data:
    board.write("Analyst", "churn_analysis",
        {"overall_rate": 0.087, "top_reason": "price"})

# Agent 3: Report Writer — reads Analyst's output, writes final report
analysis = board.read("ReportWriter", "churn_analysis")
if analysis:
    board.write("ReportWriter", "final_report",
        f"Churn rate: {analysis['overall_rate']:.1%}")

# Agent 1 comes back later and reads the final output
report = board.read("DataEngineer", "final_report")

# NEVER did any agent call another agent.
# Communication happened entirely through shared state.

The implicit contract: Agents agree on key names and value schemas. "churn_data" always means “a dict with rows and fields”. This is the equivalent of an API contract, but enforced by convention rather than by a type system.

When to use:

  • Many agents need the same information (natural publish-subscribe)
  • Agents work at different speeds (asynchronous by default)
  • You want extreme loose coupling — adding a new agent means just teaching it which keys to read/write
  • The workflow is pipeline-like: A produces → B consumes → B produces → C consumes

When NOT to use:

  • You need guarantees that data was read — nobody might be watching
  • Ordering matters — Agent B might read churn_data before Agent A finished writing it
  • You need synchronous request-response — blackboard is inherently async

The stale data problem: Agent B reads churn_data, starts analyzing. Meanwhile, Agent A writes an updated churn_data with 2000 more rows. Agent B’s analysis is now based on stale data. Solutions: versioning (churn_data_v2), timestamps (check updated_at before using), or immutable writes (never overwrite, always create new keys).

Why this is the most underrated pattern: Many multi-agent problems don’t need agents to “talk.” They need agents to process data in sequence. A blackboard is simpler, more scalable, and more loosely coupled than any message-based topology. It was invented in the 1980s for expert systems and works just as well for LLM agents.

6.2.3.6 Topology Comparison

Topology Coupling Max Agents Debuggability Key Weakness
Point-to-Point Tight ~3 Easy — explicit caller O(N²) connections, doesn’t scale
Hub-and-Spoke Medium ~5-10 Easy — hub sees all Hub is bottleneck + single point of failure
Broadcast Loose Many Medium — who acted? Noisy, no delivery guarantee
Mesh Tight ~3-5 Hard — any-to-any Conversation explosion, un-debuggable
Blackboard Very loose Many Hard — implicit flow Stale data, no one may read your writes

6.2.4 Message Passing Mechanisms

Topology defines who talks to whom.

Mechanism defines how the message gets from sender to receiver. The same topology can use different mechanisms.

6.2.4.1 Direct Invocation (Synchronous, Blocking)

1
2
3
Timeline:
Agent A: [call B] ────────── [waiting...] ────────── [got result, continue]
Agent B:            [receive] ── [process] ── [reply]

The simplest mechanism. A calls B. A does nothing else until B responds.

1
2
3
4
5
class DirectCall:
    def invoke(self, callee: SimAgent, message: Message) -> dict:
        # A blocks here ──────────────┐
        result = callee.receive(message)  # │ B processes
        return result                 # ◄┘ A unblocks

The blocking cost is real. If B takes 3 seconds (LLM round-trip + tool calls), A sits idle for 3 seconds. In a Hub-and-Spoke with 5 spokes, the Hub spends 15 seconds just waiting — time it could use to process early results or plan next steps.

When to use: The caller CANNOT proceed without B’s result. Example: Orchestrator can’t decide “deploy or fix” until the review comes back. Blocking is correct — there’s nothing else to do.

When not to use: The caller COULD do other work while waiting. Example: Orchestrator could send review requests to three specialists simultaneously and process results as they arrive.

6.2.4.2 Message Queue (Asynchronous, Non-Blocking)

1
2
3
4
Timeline:
Agent A: [send msg to queue] ── [continue other work...] ── [check for response later]
Agent B:             [poll queue] ── [process] ── [send response to queue]
Queue:   [msg waiting]

Agent A does not block. It pushes a message and continues working. Agent B pulls the message when it’s ready. Responses come back the same way — B pushes a response that A polls for later.

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
class MessageQueue:
    def send(self, message: Message):
        """Non-blocking push. Returns immediately."""
        self.queue.append(message)
        # A continues — no waiting

    def poll(self, agent_name: str) -> list[Message]:
        """Pull messages when ready."""
        mine = [m for m in self.queue
                if m.receiver == agent_name or m.receiver == "ALL"]
        for m in mine:
            self.queue.remove(m)
        return mine

# Usage:
queue = MessageQueue()

# A sends — fire and forget, returns immediately
msg = Message("Orchestrator", "Reviewer", HandoffType.DELEGATION,
              "Review this diff", data={"code": "..."})
queue.send(msg)
# Orchestrator continues working RIGHT AWAY — no blocking

# B polls when it's ready
pending = queue.poll("Reviewer")
for msg in pending:
    result = reviewer.receive(msg)

The trade-off: Async is more efficient (no idle time) but more complex (need callback/polling logic, harder error handling). If B crashes before processing the message, A might never know.

When to use: B’s work takes significant time, and A can productively do other things while waiting. Or: multiple receivers process at different speeds (broadcast scenario).

When not to use: A literally cannot proceed without B’s result, and there’s nothing else for A to do. Async only adds complexity with no benefit.

6.2.4.3 Shared Memory (Communication Through Memory)

1
2
Agent A:    memory.write("build_result", {...})   # Store in shared space
Agent B:    data = memory.read("build_result")     # Retrieve when ready

Agents don’t send messages at all. They communicate by reading and writing to a shared memory space. There are no messages, no sender, no receiver, no handoff type, no blocking calls. The only primitives are write(key, value) and read(key).

This is not a messaging mechanism — it’s a memory mechanism. Each Agent has its own internal memory (conversation history, vector store, working memory). Shared Memory is a separate space that sits between agents, accessible to all of them. One agent’s output becomes another agent’s input — not by being delivered, but by being stored where the other agent can find it.

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
class SharedMemory:
    """
    A key-value memory space shared by multiple agents.

    Unlike a Message, which has a sender and receiver:
      - A write() has no designated reader — any agent can read it.
      - A read() has no designated author — the reader may not know who wrote it.
      - There is no delivery guarantee — data might sit unread forever.

    Communication happens by SIDE-EFFECT: agent A changes the shared memory,
    and agent B notices the change (or doesn't).
    """

    def __init__(self):
        self.memory: dict[str, Any] = {}
        self.write_log: list[tuple[str, str, Any]] = []  # (agent, key, value)

    def write(self, agent: str, key: str, value: Any):
        """Store data under a known key. Overwrites if key already exists."""
        self.memory[key] = value
        self.write_log.append((agent, key, value))

    def read(self, agent: str, key: str) -> Any | None:
        """Retrieve data by key. Returns None if key doesn't exist yet."""
        return self.memory.get(key)

e.g.

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
board = SharedMemory()

# Agent 1: Data Engineer — queries the database, writes raw data
board.write("DataEngineer", "churn_data",
    {"rows": 15420, "fields": ["customer_id", "plan_type", "churn_date"],
     "fetched_at": "2026-07-18T10:00:00Z"})

# Agent 2: Analyst — reads data, writes analysis
# (This agent has NO IDEA who wrote "churn_data" or when.)
data = board.read("Analyst", "churn_data")
if data is None:
    # Data not ready yet — Analyst might wait and retry, or move on
    pass
else:
    churn_rate = calculate_churn(data)  # 8.7%
    board.write("Analyst", "churn_analysis",
        {"overall_rate": 0.087, "top_reason": "price",
         "analyzed_at": "2026-07-18T10:05:00Z"})

# Agent 3: Report Writer — reads analysis, writes final report
analysis = board.read("ReportWriter", "churn_analysis")
if analysis:
    board.write("ReportWriter", "final_report",
        {"title": "Q2 Churn Analysis",
         "body": f"Overall churn: {analysis['overall_rate']:.1%}. "
                 f"Top driver: {analysis['top_reason']}."})

# Later: Data Engineer comes back, reads the final output
report = board.read("DataEngineer", "final_report")
# → "Q2 Churn Analysis: Overall churn: 8.7%. Top driver: price."

# Not a single Message object was created.
# Not a single agent.invoke() was called.
# Communication happened entirely through shared memory.

6.2.4.4 Event-Driven (Publish-Subscribe)

1
2
Agent A:    emit("build_complete", data)     # Publish
Agent B:    subscribe("build_complete", cb)  # Subscribe — cb fires automatically

The publisher doesn’t know who’s listening. Subscribers register callbacks for specific event types. When an event fires, all subscribers are notified automatically.

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
class EventBus:
    def subscribe(self, event: str, callback: Callable, agent_name: str):
        self.subscribers[event].append(callback)

    def emit(self, event: str, data: dict, emitter: str):
        """Fire event → all subscriber callbacks are called."""
        for callback in self.subscribers.get(event, []):
            callback(data)  # Subscriber reacts immediately

# Usage:
bus = EventBus()

# Reviewer subscribes to review requests
def on_review_requested(data):
    script = data.get("script")
    # ... review the script ...

bus.subscribe("review_requested", on_review_requested, "Reviewer")

# Orchestrator emits — it doesn't know Reviewer subscribed
bus.emit("review_requested", {"script": "deploy.sh"}, "Orchestrator")
# on_review_requested is called automatically

The key advantage — adding subscribers requires ZERO changes to publishers:

1
2
3
4
# Later, we add a SecurityScanner that also wants to review deployment scripts:
bus.subscribe("review_requested", on_security_scan, "SecurityScanner")
# Orchestrator's code doesn't change at all.
# It still just emits "review_requested" — now two agents react instead of one.

The key disadvantage — event ordering and missed events: If Reviewer subscribes AFTER Orchestrator emitted "review_requested", Reviewer never sees that event. If events A and B fire in quick succession, subscribers might process B before A. For idempotent operations (reviewing code twice doesn’t hurt), this is fine. For non-idempotent operations (deploying twice), it’s a bug.

When to use: Pipeline workflows (A→B→C→D, each step triggers the next). Systems where you expect to add new consumers over time. Loose coupling is more important than strict ordering.

6.2.4.5 Mechanism Comparison

Mechanism Blocking? Coupling Complexity When to use
Direct Call Yes Tight Low Request-response, caller needs result
Message Queue No Loose Medium Async workflows, different-speed receivers
Shared Memory No Very loose Medium Pipeline: A produces → B consumes
Event-Driven No Very loose High Reactive systems, dynamic subscribers

6.2.5 Handoff Patterns

Topology is the “who,” Mechanism is the “how,” and Handoff is the “why.” When Agent B receives a message, it needs to know: am I supposed to DO this, REVIEW this, TAKE OVER this, or just KNOW about this? The handoff_type field answers that question.

6.2.5.1 Delegation

Delegation — “You handle this sub-task”

1
2
3
TechLead: "I've decomposed the project. Step 3 — API design — is your specialty."
Backend:  "Got it. Here's the API contract."
TechLead: [integrates API contract into the overall plan]

Ownership model: TechLead remains the owner of the overall task. Backend is a contributor — it does one piece and returns the result. TechLead is responsible for integrating that piece.

Code:

1
2
3
4
5
6
7
8
msg = Message(
    sender="TechLead", receiver="Backend",
    handoff_type=HandoffType.DELEGATION,   # ← key field
    content="Design the /api/users endpoint with pagination",
    data={"requirements": "RESTful, JSON, support cursor-based pagination"}
)
result = comm.invoke(backend, msg)
# TechLead integrates result into the overall deliverable

6.2.5.2 Escalation

Escalation — “I can’t solve this — you take over”

1
2
3
4
GeneralAgent: "The user's question is about database deadlocks.
               I don't have DB expertise. Escalating to DBA."
DBA:          "I'll take it from here. User, let me check your query plans..."
GeneralAgent: [hands off completely — DBA now owns the conversation]

Ownership model: OWNERSHIP TRANSFERS. The General Agent stops being responsible. The DBA Agent becomes the new owner. The user’s next message goes to the DBA, not the General Agent.

This is fundamentally different from delegation. In delegation, the delegator integrates the result and remains accountable. In escalation, the delegator walks away.

1
2
3
4
5
6
7
8
msg = Message(
    sender="GeneralAgent", receiver="DBA",
    handoff_type=HandoffType.ESCALATION,   # ← ownership transfers
    content="User reports deadlocks on the orders table during peak traffic.",
    data={"severity": "critical", "affected_table": "orders"}
)
# After escalation, DBA owns the conversation.
# GeneralAgent is done with this task.

When to use: The current agent genuinely cannot help — lack of expertise, lack of tools, or lack of authority. The user experience should be seamless: the user shouldn’t notice the handoff happened.

6.2.5.3 Consultation

Consultation — “What do you think about this?”

1
2
3
Planner:  "Here's my 5-step deploy plan. Does step 4 look safe to you?"
Security: "Step 4 is missing a rollback. Step 3 hardcodes credentials."
Planner:  "Thanks. Revising steps 3 and 4..."

Ownership model: Planner remains the owner. Security is an advisor — it provides feedback but doesn’t make decisions or execute changes. This is 5.3’s Actor-Critic pattern extended to separate agents.

Code:

1
2
3
4
5
6
7
8
msg = Message(
    sender="Planner", receiver="Security",
    handoff_type=HandoffType.CONSULTATION,   # ← feedback only, no ownership change
    content="Does this deploy plan look safe? Here's the plan: ...",
    data={"plan_steps": ["test", "build", "push", "deploy", "smoke_test"]}
)
feedback = comm.invoke(security, msg)
# Planner reviews feedback, decides what to change, makes changes itself

When to use: The sender has a draft and wants expert review before committing. The sender believes it CAN do the task but wants a second pair of eyes.

6.2.5.4 Notification

Notification - FYI (For Your Information)

1
2
3
4
BuildBot: "Build complete: app:v2.3.1. All 142 tests passed."
DeployBot: [noted — may start deploy when ready]
MonitorBot: [noted — starts watching for the new version]
NotifyBot: [noted — sends Slack message to #eng]

Ownership model: Not applicable. The sender is not asking for anything — no action, no response, no ownership change. Receivers independently decide what (if anything) to do.

Code:

1
2
3
4
5
6
7
8
msg = Message(
    sender="BuildBot", receiver="ALL",
    handoff_type=HandoffType.NOTIFICATION,   # ← FYI only
    content="Build complete: app:v2.3.1, all tests passed.",
    data={"image": "app:v2.3.1", "hash": "abc123", "tests_passed": 142}
)
queue.send(msg)
# BuildBot doesn't expect a response. Doesn't wait. Doesn't care who reads it.

6.2.5.5 Handoff Comparison

Handoff Ownership Response Expected? Receiver’s Role Analogous to…
Delegation Sender keeps Yes — result Contributor “Do this task for me”
Escalation TRANSFERS Yes — takeover New owner “I’m out, you’re in charge now”
Consultation Sender keeps Yes — feedback Advisor “What do you think?”
Notification N/A No Observer “FYI”

6.2.6 Combination

The three dimensions are orthogonal. We can combine them arbitraryly.

But some combinations are naturally compatible.

6.2.6.1 Choose a Topology

The first question of Decision Tree is: “Is there an agent who knows the whole picture and is responsible for coordination?”

In a multi-agent system, as long as One Agent performs task decomposition, it becomes the natural center.

It knows the steps of the entire process, the dependencies, and who excels at what. Naturally, it becomes the hub.

So in 90% of the cases, the choice is “Hub-and-Spoke”.

There are two typical scenarios without Orchestrator:

  1. Full-team Notification Type:

    BuildBot needs to notify the entire team after the build is completed. BuildBot is not a “coordinator”; it is merely an information publisher. BuildBot is not a “coordinator”; it is merely an information publisher. It does not care who receives the information or who takes action.

    In this scenario, there is no orchestrator, and the decision tree follows the NO branch(No Orchestrator) → “All agents require the same information” → determining whether to use Broadcast or Blackboard messages passing mechanism.

    How to distinguish between Broadcast and Blackboard?

    • One producer, multiple consumers → Broadcast. “BuildBot informs everyone that the build is complete.” There is only one information source.
    • Multiple producers, multiple consumers → Blackboard. “Three analysts each write their findings and read each other’s.” There are multiple sources of information.

  2. Peer-to-Peer Collaboration:

    Three experts work together to troubleshoot online issues. There is no leader - whoever finds a clue speaks up.

    Go NO branch → “Do all agents need the same information?” → No, each expert needs different things → “Do you need direct collaboration?” → Yes → Mesh

6.2.6.2 Choose a Message Passing Mechanism

Decision Tree first question: Does the caller need the result to proceed?

This question is more subtle than it seems. It’s not about whether the caller cares about the result - almost any call cares about the result.

The question is: before getting the result, is there any other useful work the caller can do?

  1. Direct Call (Blocking): The caller’s next logical step depends on the return value.

    1
    2
    3
    4
    5
    6
    # pseudo code
      review = review_code(script)
      if review["score"] < 0.7:       # ← This judge depends on review's result
          fix_issues(script, review["issues"])
      else:
          deploy(script)

  2. Event Driven: When the dynamic subscriber is important.

    1
    2
    3
    4
    # pseudo code
    queue.send(review_request_1)
    queue.send(review_request_2)
    queue.send(review_request_3)

  3. Shared Memory: When there’s pipeline workflow

    Each step reads the previous output and writes its own.

    Agents don’t know each other.

  4. Message Queue (Asynic): Simple async fallback. Send now, poll later.

6.2.6.3 Choose a Handoff

Core question:

Who should be responsible for the sub_task when message arrives ?

  • Still the Sender: Delegation & Consultation
    • Delegation: “Help me with this step, give me the results, and I’ll integrate them.” The receiver is the contributor.
    • Consultation: “Check if the result is right, tell me your advice.” The receiver is a consultant.
  • Escalate this task to the receiver: Escalation
    • “I can’t handle it, you take over. I won’t be involved anymore.” Ownership transferred.
  • No one is responsible just Notification.

6.2.6.4 Concrete Combination

案例 1: Orchestrator 拆任务 + 委托执行

Hub-and-Spoke + Direct Call + Delegation

为什么 Hub-and-Spoke：Orchestrator 把任务拆成子任务，分给不同 specialist。它需要看到所有结果才能合成最终答案。这是最经典的 Hub-and-Spoke 场景。

为什么 Direct Call：Orchestrator 在没有拿到所有 specialist 结果之前无法合成最终答案。它没有”等待期间可以做的其他事”——它必须等。

为什么 Delegation：Orchestrator 把子任务分配给 specialist，但它仍然是整个任务的 owner。Specialist 返回结果，Orchestrator 负责整合。

案例 2: 构建系统通知团队

Broadcast + Message Queue + Notification

为什么 Broadcast：一条消息，多个 receiver，发送者不关心谁收到。BuildBot 只负责”构建完了”这个事实，不负责协调后续动作。

为什么 Message Queue：三个 receiver 的处理速度完全不同——发 Slack 要 1 秒，部署要 5 分钟。如果用 Direct Call，BuildBot 会被最慢的 receiver 拖死。用 Queue，每个 receiver 按自己的节奏 poll。

为什么 Notification：BuildBot 不是在”要求”DeployBot 部署，也不是在”委托”MonitorBot 监控。它只是在说”这件事发生了”。DeployBot 自己决定要不要部署、什么时候部署。

案例 3: 三专家协作排查故障

Mesh + Event-Driven + Consultation

为什么 Mesh：故障排查没有领导。谁发现线索谁说话。如果设一个 Hub，Hub 就成了瓶颈——每个专家都要通过 Hub 转发，延迟增加，而且 Hub 可能不理解专家之间的技术讨论。

为什么 Event-Driven：故障排查是响应式的——一个专家发现 CPU spike，其他专家需要立刻知道，因为 CPU 问题可能跟网络问题、DB 问题相关。Event 让信息实时流动，而不是等某人来 poll。

为什么 Consultation：每个专家都在问其他专家”你怎么看这个现象？“没有人把任务”委托”给别人——每个人都在贡献自己的视角，但每个人仍然对自 己的领域负责。

案例 4: 多人共同编辑研究报告

Blackboard + Shared Memory

为什么 Blackboard：三个分析师（市场、技术、财务）各自写各自的部分，读别人的部分来避免重复和交叉引用。没有”一个人发号施令”——每个人独 立工作，靠读/写共享文档协调。

为什么 Shared Memory：不需要消息——市场分析师不需要”通知”技术分析师自己写完了。技术分析师在需要的时候自己去读市场部分的最新版本就行 。这种按需读取天然适合 Shared Memory。

注意：这个案例没有 Handoff 维度，因为根本没发 Message。Shared Memory 的通信方式不涉及 handoff——通信通过 key-value 的读写隐式完成。不是所有组合都需要三维。

案例 5: 安全审计

Point-to-Point + Direct Call + Delegation

为什么 Point-to-Point：一个 Orchestrator 调一个 Reviewer，一对一的请求-响应。没有第三个 agent 参与。不需要 Hub、不需要 Broadcast、不需要 Mesh。

为什么 Direct Call：Orchestrator 需要 review 结果来决定”部署还是修复”。等是合理的。

为什么 Delegation：Orchestrator 把”审查代码”这个子任务交给 Reviewer。Orchestrator 仍然是整个部署流程的 owner。

常见错误的心理模型

错误 1: 挨个通知代替广播

心理模型：“我要让三个人都知道这件事”

for agent in [A, B, C]: comm.invoke(agent, msg)

问题：串行等待 3 次。新增第四个 agent 时可能忘加。

正确：一条 broadcast，队列负责分发。

错误 2: A 调 B, 但实际上 B 只是需要 A 的输出

心理模型：“B 需要我产出的数据，所以我调用 B”

comm.invoke(B, Message(data=A_result))

问题：A 和 B 耦合了。B 的接口变了，A 要改。

正确：A 写 Shared Memory，B 自己去读。A 不需要知道 B 的存在。

错误 3: Delegation 和 Escalation 混淆

心理模型：“我处理不了，让 DBA 来处理这个”

msg = Message(handoff_type=DELEGATION, …)

问题：DELEGATION 意味着你还是 owner。

你会试图把 DBA 的结果包在你的回复里，而不是让 DBA 直接跟用户对话。

正确：Escalation。所有权转移。DBA 直接跟用户对话，你退出。

错误 4: 4 个 agent 全互联

心理模型：“每个 agent 都可能需要跟任何其他 agent 说话”

→ 12 条调用路径

问题：加第 5 个 agent 增加 8 条新路径。谁记得住？

正确：Hub-and-Spoke。4 条路径（Hub ↔︎ 每个 spoke）。除非有明确需求的 agent pair，才开放临时 Mesh。

本文链接：https://wangyier.top/mechanism-of-agent/

版权声明：本博客所有文章除特别声明外，均采用 CC BY-NC-SA 4.0 许可协议。转载请注明来自 The Great Library！
