SWE-agent

Posted on In Views:
SWE-agent relative

[TOC]

1. Code Analysis

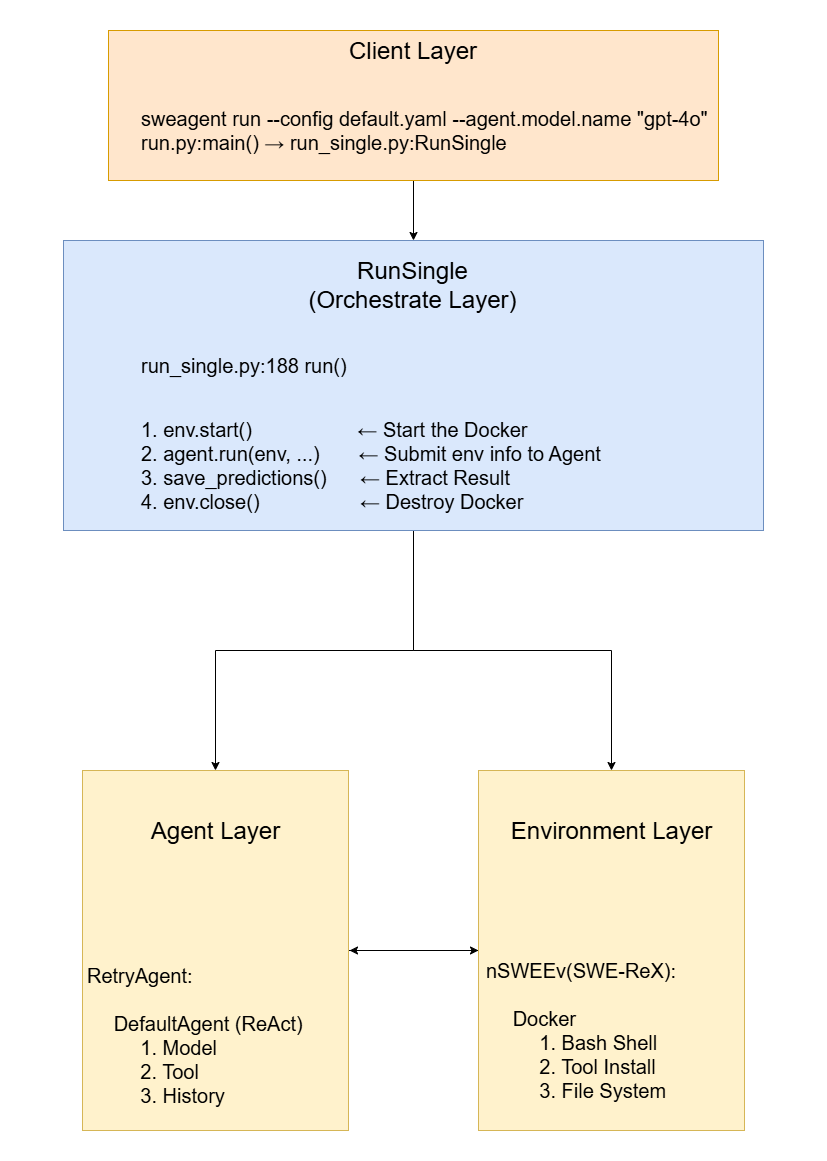

1.1 Whole Picture

Orchestrating、Agent Logic、Tool Parsing、Env Execution、LLM Call ——each layer has its own class，assembled by YAML。

File Structure:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
sweagent/
├── __main__.py              # Entrance: python -m sweagent
├── run/
│   ├── run.py               # CLI Command ("sweagent run/r/batch/...")
│   ├── run_single.py        # RunSingle: Start Env → Run Agent → Save Results
│   └── run_batch.py         # RunBatch (SWE-Bench)
├── agent/
│   ├── agents.py            # DefaultAgent (ReAct), RetryAgent (Actor-Critic)
│   ├── models.py            # LLM abstract layer (litellm, encapsulation, retry, cost tracking
)
│   ├── history_processors.py # Context Compression (cache_control, truncation)
│   ├── reviewer.py          # Critic: Reviewer, ScoreRetryLoop, ChooserRetryLoop
│   └── problem_statement.py # problem statement (GitHub issue)
├── tools/
│   ├── tools.py             # ToolConfig, ToolHandler, blocklist, bundles
│   ├── parsing.py           # LLM output : ThoughtActionParser, FunctionCallingParser
│   └── commands.py          # Commands Definition (bash, str_replace_editor, submit)
├── environment/
│   ├── swe_env.py           # SWEEnv: Docker Lifecycle + Command Communication
│   └── repo.py              # Code Repo Mananage(clone, checkout)
└── utils/
    ├── log.py               # Log System (.info/.debug/.trace)
    └── config.py            # YAML Conf

1.2 Client Layer

1.3 RunSingle

1.3.1 RunSingle Main

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
class RunSingle:
    def run(self):
        self._chooks.on_start()                    # Hook: befroe start

        self.logger.info("Starting environment")
        self.env.start()                           # 1. strat Docker + tool installation

        self.logger.info("Running agent")
        output_dir = self.output_dir / self.problem_statement.id
        output_dir.mkdir(parents=True, exist_ok=True)
        (output_dir / "config.yaml").write_text(   # Persistent Configuration
            yaml.dump(self.agent.replay_config.model_dump_json())
        )

        result = self.agent.run(                   # 2. run Agent
            problem_statement=self.problem_statement,
            env=self.env,
            output_dir=output_dir,
        )

        self._chooks.on_instance_completed(result=result)  # Hook: complete
        save_predictions(self.output_dir,           # 3. Save patch + .pred
                        self.problem_statement.id, result)
        self.env.close()                           # 4. Destroy Docker

1.3.2 Hook

1.3.3 Log System

1
2
3
4
5
6
# run_single.py:141-147
for level in ["trace", "debug", "info"]:
    add_file_handler(
        output_dir / f"{instance_id}.{{level}}.log",
        level=level,
    )
  • .info.log: Key decisions made by the Agent(STEP, THOUGHT, ACTION, submit)
  • .debug.log: Docker commands, file uploads, and details of tool installation
  • .trace.log: Every command executed within the container and its corresponding output

1.4 Agent Layer

SWE-bench designs a two-layer agent system.

1
2
3
RetryAgent (Outer Layer — multiple attempts)
    │
    └── DefaultAgent (Inner Layer — Single ReAct Execution)

1.4.1 Default Agent

  1. Setup: Assemble 5 parts of prompt,

    • system_template
    • Inject demonstrations
    • Render instance_template
    • Install tools
    • Get the initial state。
    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    # agents.py:561-606

    def setup(...) -> None:
    	# apply template configuration to multimodal problem statements
    	if hasattr(problem_statement, "type") and problem_statement.type == "swe_bench_multimodal":
    		from sweagent.agent.problem_statement import SWEBenchMultimodalProblemStatement

    		if isinstance(problem_statement, SWEBenchMultimodalProblemStatement):
    			# apply the global disable_image_processing setting if it's not explicitly set
    			if not problem_statement.disable_image_processing and self.templates.disable_image_processing:
    				problem_statement.disable_image_processing = True

    	# 1. install tools (upload bundle to docker, execute install.sh)
        self.tools.install(self._env)
        # 2. add system message to history
        self.add_system_message_to_history()
        # 3. add demonstrations to history (optional few-shot)
        self.add_demonstrations_to_history()
        # 4. add instance to history (including {{problem_statement}})
        self.add_instance_template_to_history(state=self.tools.get_state(self._env))

  2. step(): Single-step execution

    1
    2
    3
    4
    5
    6
    7
    8
    # agents.py:1235-1263
    def step(self):
        n_step = len(self.trajectory) + 1
        self.logger.info("=" * 25 + f" STEP {n_step} " + "=" * 25)
        step_output = self.forward_with_handling(self.messages)  # Think + Act
        self.add_step_to_history(step_output)                     # add output to history,
        self.add_step_to_trajectory(step_output)                  # add to trajectory
        return step_output

  3. forward(): Think-Act

    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    # agents.py:1006-1060
    def forward(self, history: list[dict[str, str]]) -> StepOutput:
        step = StepOutput()
        step.query = copy.deepcopy(history)

        output = self.model.query(history)      # Think: Call LLM (line 1042)
        step.output = output["message"]
        step.thought, step.action = \
            self.tools.parse_actions(output)    # Parse: extract thought + action from output of LLM
        return self.handle_action(step)         # Act: execution action

  4. forward_with_handling

    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    def forward_with_handling(self, history: list[dict[str, str]]) -> StepOutput:

    	def handle_error_with_autosubmission(exit_status: str, message: str) -> StepOutput:
            ...

    	 def handle_error_with_retry(exception: Exception, template: str, n_requeries: int) -> list[dict[str, str]]:
            ...

    	n_format_fails = 0
    	while n_format_fails < self.max_requeries:
    		try:
    			return self.forward(history)
            ...

  5. run(): main loop

    1
    2
    3
    4
    5
    6
    7
    8
    # agents.py:1265-1294
    def run(self, env, problem_statement, output_dir):
        self.setup(env, problem_statement, output_dir)
        step_output = StepOutput()
        while not step_output.done:
            step_output = self.step()
            self.save_trajectory()          # save trajectory
        return AgentRunResult(...)

1.4.2 Retry Agent(Actor-Critic)

Actor(agent_encapsulation):

1
2
3
4
5
6
7
8
9
10
11
# agents.py:303-319
def _setup_agent(self):
    agent_config = self.config.agent_configs[
        self._i_attempt % len(self.config.agent_configs)  # 轮换不同配置
    ]
    # 动态调整 cost limit
    remaining_budget = self.config.retry_loop.cost_limit - self._total_instance_stats.instance_cost
    if remaining_budget < agent_config.model.per_instance_cost_limit:
        agent_config.model.per_instance_cost_limit = remaining_budget
    self._agent = DefaultAgent.from_config(agent_config)
    self._agent.setup(env=..., problem_statement=..., output_dir=...)

Critic (Reviewer):

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
# reviewer.py:416-449
class Reviewer(AbstractReviewer):
    def review(self, instance, submission) -> ReviewerResult:
        # 1. Abnormal Exit → Penalty Points
        penalty = self._config.failure_score_penalty if exit_status != "submitted" else 0

        # 2. n_sample=5, Take 5 samples and calculate the average score
        for _ in range(self._config.n_sample):
            answer = self._model.query(messages)["message"]
            score = self.interpret(answer)       # get score from LLM output
            accepts.append(score)

        accept = sum(accepts) / len(accepts) - penalty
        std = np.std(accepts).item()
        if self._config.reduce_by_std > 0:
            accept -= std * self._config.reduce_by_std  # High Variance → Penalty
        return ReviewerResult(accept=accept, ...)

1.5 Env Layer

…

2.

2.1 Plan & Execute

Plan:

config/default.yaml

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
# config/default.yaml
  agent:
    templates:
      instance_template: |-
        <uploaded_files>
        {{working_dir}}
        </uploaded_files>
        I've uploaded a python code repository in the directory {{working_dir}}.
        ...
        Can you help me implement the necessary changes...
        Follow these steps to resolve the issue:
        1. As a first step, it might be a good idea to find and read code...
        2. Create a script to reproduce the error...
        3. Edit the sourcecode of the repo to resolve the issue
        4. Rerun your reproduce script...
        5. Think about edgecases...

2.2 Actor-Critic

1
2
3
4
5
6
RetryAgent (Orchestrator)
      │
      ├── DefaultAgent (Actor)    — Solve problem, generate patch
      │
      └── Reviewer (Critic)       — Score the Actor's output

When Actor finished, package all outputs of Actor:

1
2
3
4
5
6
7
8
if step_output.done:
	self._rloop.on_submit(
		ReviewSubmission(
			trajectory=self._agent.trajectory,
			info=self._agent.info,
			model_stats=self._agent.model.stats, # Call times ...
		)
	)

Reviewer to get a score:

1
2
3
4
5
6
7
8
9
10
11
12
13
RetryAgent.run()
   │
   └─ submission = ReviewSubmission(
        trajectory = Actor's info
        info       = exit_status + patch,
        model_stats = API call tims...
      )
      │
      └─ _rloop.on_submit(submission)
           │
           ├─ ScoreRetryLoop:
           │
           └─ ChooserRetryLoop:

ScoreRetryLoop:

Attempt 1: Actor Finish → Reviewer: Review trajectory + patch → “0.3 points” → fail Attempt 2: Actor Finish → Reviewer: Review new trajectory + new patch → “0.7 points” → not enough Attempt 3: Actor Finish → Reviewer: Review new trajectory + new patch → “0.85 points” → Pass and Stop

ChooserRetryLoop:

Attempt 1 → save

Attempt 1 → save

….

Attempt 10 → save

Chooser Receive 10 patches + edited_files： Submission 0: (patch_0) Submission 1: (patch_1) … “The third is best” → Return index 3

Critic Prompt:

config/benchmarks/250212_sweagent_heavy_sbl.yaml:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
retry_loop:
    type: chooser
    cost_limit: 6.0
    max_attempts: 10
    min_budget_for_new_attempt: 1.0
    chooser:
      system_template: |
        You are an expert software engineer reviewing code. Your thinking is very thorough, so it is ok if its very long.
      instance_template: |
        You will be given a problem statement and a list of patch submissions.

        Pick the most reasonable patch.
        The patch should solve the problem described in the problem statement in a way that is consistent with the rest of the codebase and the conventions of the codebase.

        Note: Disregard all testing code in the patch, as testing was already done in a separate step.
        Having a test in the patch does not make it any better.

        <IMPORTANT>The last line of your response should be the index of the patch you chose.
        You must choose a single index no matter what. If you cannot decide between two or more
        submissions, choose the first one of these.
        </IMPORTANT>

        Problem statement:
        {{problem_statement}}

        Submissions:
        {% for submission in submissions %}
        Submission {{loop.index0}}:

        {{submission}}

        {% endfor %}

        <IMPORTANT>The last line of your response should be the index of the patch you chose without any other text.</IMPORTANT>
      submission_template: |
        Patch:

        ```python
        {{submission}}
    The final edited file with 30 lines of context:


1
{{edited_files30}}

```
